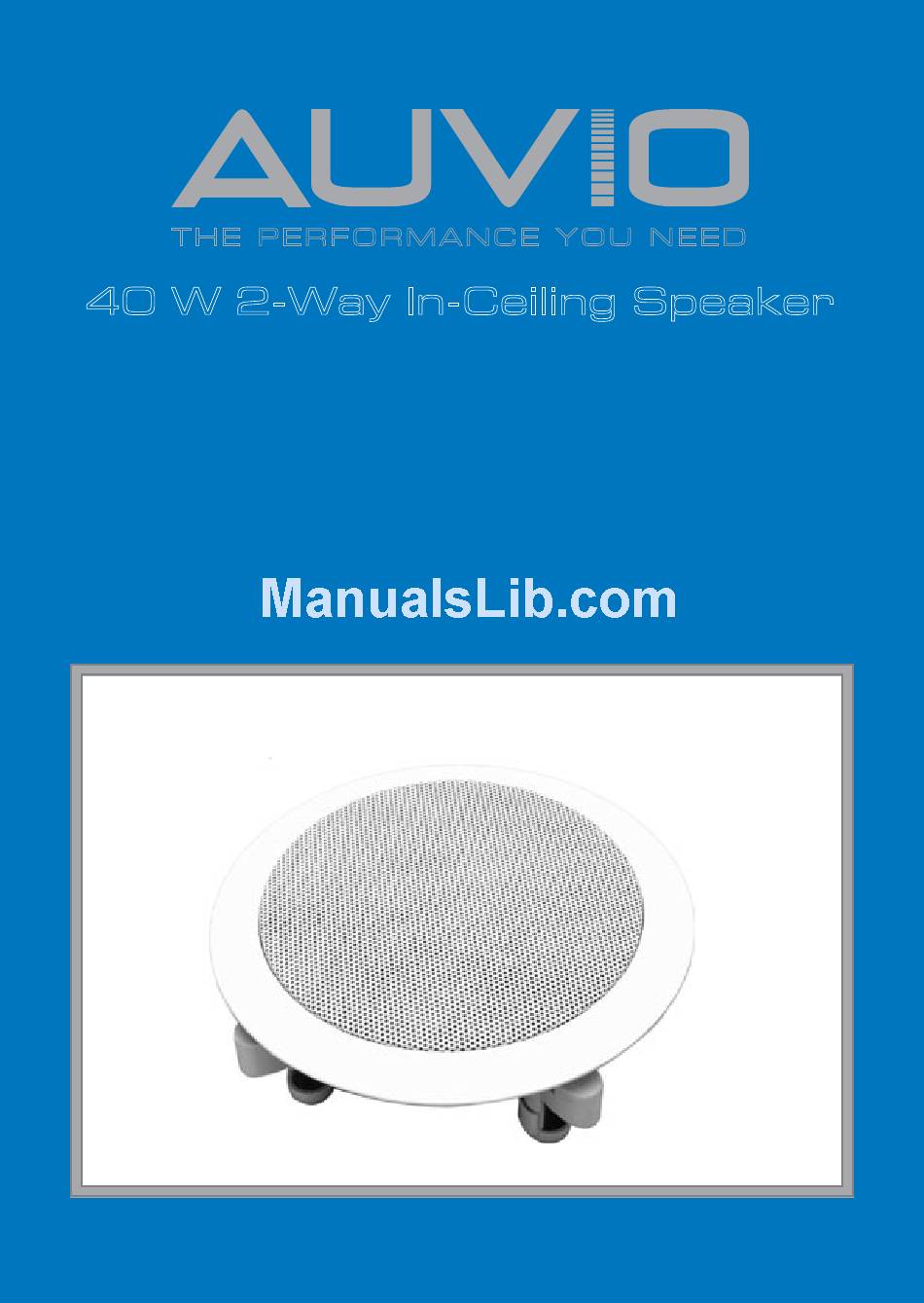

T HE PERFO R MANC E Y O U N EED

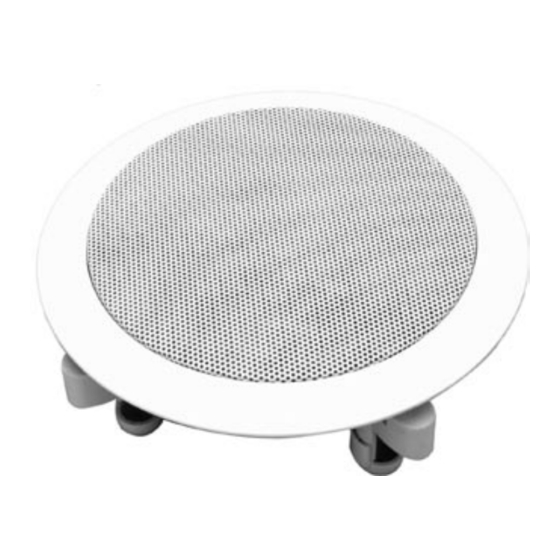

40 W 2-Way In-Ceiling Speaker
Please read this user's guide before using your new
speaker.
User's Guide
© 2009. Ignition L. P . All rights reserved. Auvio is a trademark used by Ignition L.P .
Package and insert are recyclable. Insert contains recycled material.
TM
40-289
Advertisement
Table of Contents
Related Manuals for AUVIO Auvio 40-289
Summary of Contents for AUVIO Auvio 40-289
- Page 1 T HE PERFO R MANC E Y O U N EED 40 W 2-Way In-Ceiling Speaker Please read this user’s guide before using your new speaker. User’s Guide © 2009. Ignition L. P . All rights reserved. Auvio is a trademark used by Ignition L.P .
-
Page 2: Package Contents
Features High quality speaker works well with any speaker system. Speaker frame and grille can be painted to blend in with any ceiling. Installing the Speaker Prepare the Location To mount your speaker, you need the following items... - Page 3 Use a drywall or keyhole saw to cut the hole. (Optional) Painting the Grille Note: Do not paint internal speaker components. We recommend you spray-paint the grille so no paint gets in or blocks the holes. To remove the grille, insert a paper clip into one of the openings and pull up.
- Page 4 We recommend you use wire that is color-coded or otherwise marked on to help you connect the wire correctly. Route the speaker wire to the speaker from the amplifier. Separate about 4 inches of speaker wire at each end.
-
Page 5: Mounting The Speaker
Connect the wire from the red speaker terminal to the amplifier’s positive (+) terminal, then connect the wire from the black speaker terminal to the amplifier’s negative (–) terminal. Notes: Avoid routing the speaker wire near electrical wires. Do not nail, staple, or otherwise puncture the ... -
Page 6: Specifications
Maintenance Keep the amplifier’s volume at the low position when you first turn it on to avoid damaging the speaker. Do not use overrating power, otherwise sound quality can be destroyed and loudspeaker drivers can be damaged. -
Page 7: Limited Warranty
Limited Warranty Ignition L.P . warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase. IGNITION L.P . MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current;... - Page 8 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. Get more from your audio and video equipment. See what you’ve been missing. With Auvio, Auvio was established by a group of technophiles to provide high quality audio and video products the high sticker price.
