AUVIO 40-290 User Manual

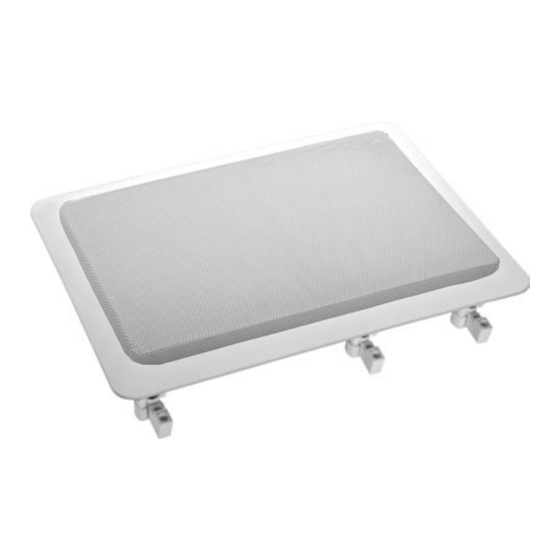

100w 2-way in-wall speaker
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual

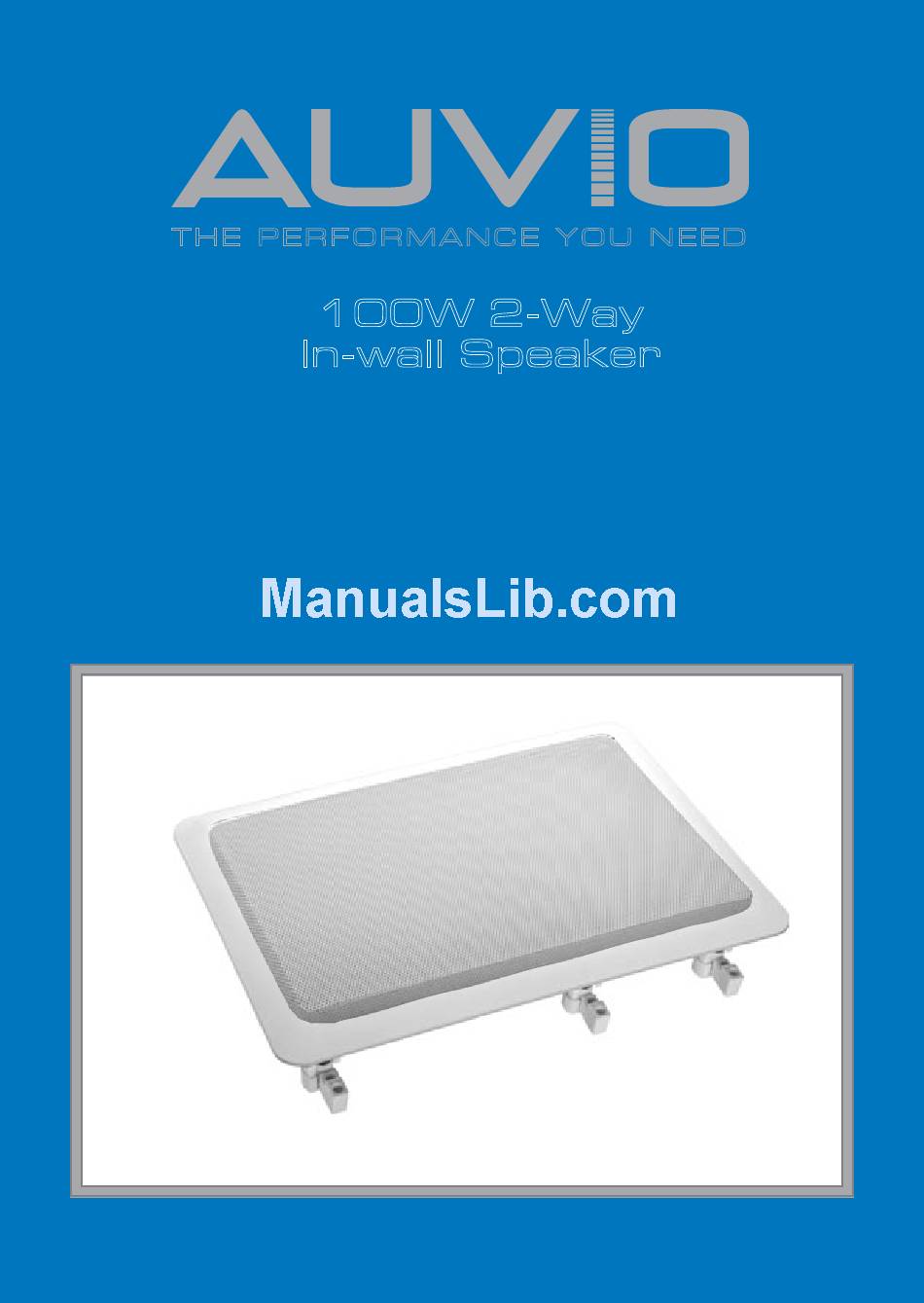

TM
T HE PERFO R MANC E Y O U N EED
100W 2-Way
In-wall Speaker
Please read this user's guide before using your new speaker.
User's Guide
40-290
© 2009. Ignition L. P . All rights reserved. Auvio is a trademark used by Ignition L.P .
Package and insert are recyclable. Insert contains recycled material.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Auvio 40-290 and is the answer not in the manual?

Questions and answers

Related Manuals for AUVIO Auvio 40-290

Summary of Contents for AUVIO Auvio 40-290

  • Page 1 T HE PERFO R MANC E Y O U N EED 100W 2-Way In-wall Speaker Please read this user’s guide before using your new speaker. User’s Guide 40-290 © 2009. Ignition L. P . All rights reserved. Auvio is a trademark used by Ignition L.P .

  • Page 2: Package Contents

    Package Contents In-wall Speaker  User’s Guide  Features Mount your speaker flush with the ceiling or wall with the  wing-type mounting system. The frame and grille can be painted to match the room’s  decor. The tweeter can be tilted to direct the sound to best suit ...
  • Page 3 Use a drywall or keyhole saw to cut the hole. Connect to your amplifier Route the speaker wire from your amplifier to the speaker. Avoid routing near existing electrical wires and do not nail or staple the wire. Separate about 4 inches (100 mm) of wire at each end.

  • Page 4: Mount The Speaker

    Mount the speaker Remove the grille to expose the mounting screws. Be sure the mounting tabs are turned in, allowing the speaker to fit into the hole. Then insert the speaker into the mounting hole. Mounting Tab Tighten the six screws to secure the mounting tabs to the wall or ceiling.

  • Page 5: Specifications

    Painting the speaker (optional) Before you connect the speaker wire or mount the speaker, you can paint the frame and grille. To remove the grille, insert a paper clip into one of the grille openings, then pull up. Before you paint the grill, carefully remove the dust cloth.
  • Page 6 This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or mainte- nance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a Ignition L.P .
  • Page 7 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. from your audio and video equipment. See what Get more you’ve been missing. With Auvio, Auvio was established by a group of technophiles to provide high quality audio and video products price.
