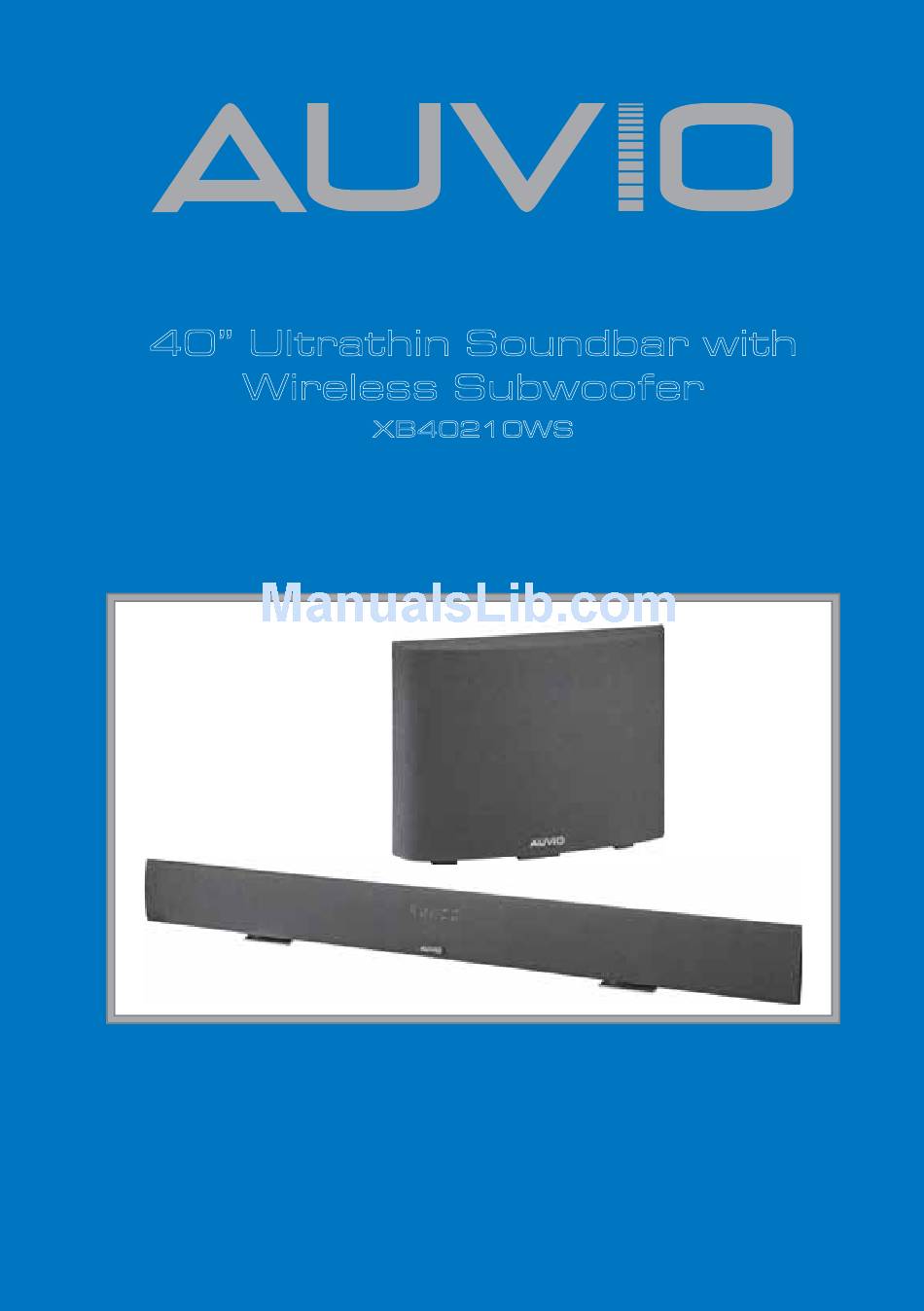

- Page 1 ® ® THE PERFORMANCE YOU NEED 40” Ultrathin Soundbar with Wireless Subwoofer XB40210WS User’s Guide 4000479 Please read this user’s guide before using your new soundbar system.
-
Page 2: Table Of Contents
Contents Important Safety Instructions .....................3 Warnings and Precautions ....................3 Overview ..........................4 Features ..........................4 Package Contents ......................4 Front View ........................5 Back View ........................6 Soundbar ........................6 Subwoofer ........................6 Remote Control ......................7 Setup.............................8 Positioning the Soundbar System ................8 Mounting the Soundbar ....................8 On a Flat Surface ......................8 On the Wall........................9 Power the Soundbar ....................10 Power the Wireless Subwoofer...................10... -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators,heat registers,stoves,or other apparatus (including amplifiers) that produce heat. -
Page 4: Overview
Overview Features Easy installation, vivid sound and image Stylish, slim design Enhanced wireless active subwoofer Package Contents Soundbar Subwoofer Remote Control Wall Mount Bracket (2) Cradle Stand (2) Wall Mount Template AC Adapter (2) CAUTION This lightning symbol is intended to alert you to the presence of uninsulated, RISK OF ELECTRIC SHOCK dangerous voltage within this product’s... -
Page 5: Front View
Front View WOOFER Enter the subwoofer control mode. MODE Select sound mode (GAME, MUSIC, MOVIE, 3D SURROUND SOUND, or NEWS). MUTE Mute the sound. INPUT VOL + / VOL - Select input mode (AUX, HDMI1, HDMI2, Adjust the volume or OPTICAL). level. -
Page 6: Back View
Back View Soundbar AUX IN Input Jack Connect to the output jack of your portable audio player. OPTICAL Input Jack Connect to the optical audio output jack of a digital optical audio device. DC IN Jack Connect the supplied power adapter. HDMI Output Jack Connect to the input jack of an HDMI compatible TV or monitor. -
Page 7: Remote Control
Remote Control POWER Turn the soundbar on or off. MUTE Turn sound on or off VOL + / VOL – Increase or decrease soundbar volume. SUB + / SUB – Increase or decrease subwoofer volume. HDMI 1 / HDMI 2 OPTICAL Select an HDMI input mode. -
Page 8: Setup
Setup Positioning the Soundbar System Place the soundbar at a height that is closest to ear-level in the listening area. Position the soundbar so that it is parallel to the listening area. Place the subwoofer in the corner of the room or at least 3 ft. (1 m) away from the TV. Note: Do not place the soundbar in an enclosed cabinet. -
Page 9: On The Wall
On the Wall Required tools: Drill, pen or pencil, level, 4 screws. Locate a place to mount the soundbar. Make sure you have enough room for both ends of the soundbar to provide unobstructed sound. Attach the supplied wall mount template to the wall horizontally, making sure that it is level. -
Page 10: Power The Soundbar
Power the Soundbar Connect the power cord to the soundbar DC IN jack. Connect the AC cable to the AC power adapter. Be sure the cable is fully inserted into the adapter. Plug the AC power cord into a power outlet. Power the Wireless Subwoofer Connect the power cord to the subwoofer DC IN jack. -
Page 11: Install Batteries In The Remote Control
Install Batteries in the Remote Control Press the tab to remove the battery cover. Insert two AAA batteries (not supplied) as indicated by the polarity symbols (+ and –) marked inside. Replace the battery cover. Battery Notes: Dispose of batteries promptly and properly. Do not burn or bury them. -
Page 12: Connections
Connections Connect to an audio/video system through HDMI or to an audio-only system through an optical audio or auxiliary input connection. Note: Before connecting or changing any connections, make sure that all the devices are disconnected from the power outlet. Connecting Audio and Video with HDMI Connect external devices (for example, gaming systems, media players) to the soundbar using an HDMI cable (Type A, Version 1.3;... -
Page 13: Connecting To An Audio System
Connecting to an Audio System OPTICAL Connection Connect the optical output jack of your device to the OPTICAL jack on the soundbar. Turn on the connected device. Press INPUT to select the OPTICAL mode. Note: When you connect the optical audio cable (not included), make sure to set the source device output mode to PCM. -
Page 14: Operation
Operation Select a Soundbar Input Mode You can switch between four input modes, AUX, HDMI1, HDMI2, or OPTICAL. Press INPUT on the soundbar repeatedly to select a soundbar input source. The corresponding input source will then be activated. Press HDMI1 , HDMI2, OPTICAL or AUX IN on the remote control to select the corresponding input. -
Page 15: Additional Information
Additional Information Troubleshooting Problem Possible Solution General Soundbar will not Be sure that the power cord is connected securely. power on. Disconnect the power cord from the power outlet for a few minutes. Reconnect the power cord and try to operate it again as usual. -
Page 16: Specifications
Specifications Power AC power adapter......................2 Input ..................100 – 240V, 50/60Hz, 1.5A Output ........................24V, 3.3A Soundbar RMS output power ....................30W × 2 Power input ......................24V, 3.33A Frequency range ....................20 Hz ~20kHz Sound mode ......GAME, MUSIC, MOVIE, 3D SURROUND SOUND, or NEWS Driver size ..................73 mm ×... -
Page 17: Limited Warranty
Limited Warranty Ignition L.P . warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase. IGNITION L.P . MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current;... - Page 18 Hazardous Substances Directive, ” which protects the environment by restricting specific hazardous materials and products. © 2013. Ignition L.P . All rights reserved. Auvio is a registered trademark used by Ignition L.P . Package and user documentation are recyclable. User...
