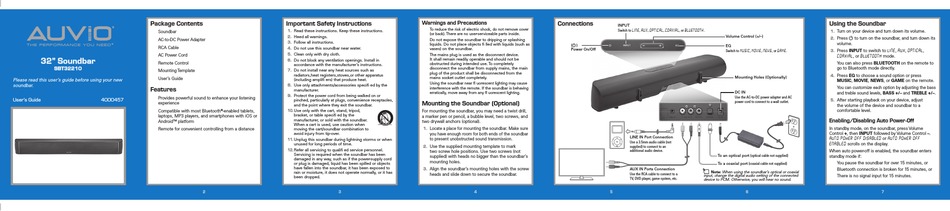

AUVIO SBT32210 User Manual

Package Contents
®
Soundbar
AC-to-DC Power Adapter
T H E PERFORM A N C E Y O U NEED
®
RCA Cable
AC Power Cord
32" Soundbar
Remote Control
SBT32210
Mounting Template
User's Guide
Please read this user's guide before using your new
soundbar.
Features
Provides powerful sound to enhance your listening
User's Guide 4000457
experience
Compatible with most Bluetooth
laptops, MP3 players, and smartphones with iOS or
Android platform
TM
Remote for convenient controlling from a distance
Important Safety Instructions
1. Read these instructions. Keep these instructions.
2. Heed all warnings.
3. Follow all instructions.
4.
Do not use this soundbar near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
7.
Do not install near any heat sources such as
radiators,heat registers,stoves,or other apparatus
(including amplifi ers) that produce heat.
8.
Use only attachments/accessories specifi ed by the
manufacturer.
9. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles,
and the point where they exit the soundbar.
® -enabled tablets, 10.Use only with the cart, stand, tripod,
bracket, or table specifi ed by the
manufacturer, or sold with the soundbar.
When a cart is used, use caution when
moving the cart/soundbar combination to
avoid injury from tip-over.
11.Unplug this soundbar during lightning storms or when
unused for long periods of time.
12.Refer all servicing to qualifi ed service personnel.
Servicing is required when the soundbar has been
damaged in any way, such as if the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the soundbar, it has been exposed to
rain or moisture, it does not operate normally, or it has
been dropped.
2 3
2 3
Connections
Warnings and Precautions
To reduce the risk of electric shock, do not remove cover
(or back). There are no user-serviceable parts inside.
Do not expose the soundbar to dripping or splashing
liquids. Do not place objects fi lled with liquids (such as (G)
vases) on the soundbar.
Power On/Off
The mains plug is used as the disconnect device.
It shall remain readily operable and should not be
obstructed during intended use. To completely
disconnect the soundbar from supply mains, the main
plug of the product shall be disconnected from the
mains socket outlet completely.
Using the soundbar near fl uorescent lighting may cause
interference with the remote. If the soundbar is behaving
erratically, move away from any fl uorescent lighting.
Mounting the Soundbar (Optional)
For mounting the soundbar, you may need a twist drill,
a marker pen or pencil, a bubble level, two screws, and
two drywall anchors (optional).
1. Locate a place for mounting the soundbar. Make sure
you have enough room for both ends of the soundbar
to present unobstructed sound transmission.
2. Use the supplied mounting template to mark
two screw hole positions. Use two screws (not
supplied) with heads no bigger than the soundbar's
mounting holes.
3. Align the soundbar's mounting holes with the screw
heads and slide down to secure the soundbar.
4
4
INPUT
Switch to LINE , AUX , OPTICAL , COAXIAL , or BLUETOOTH .
Volume Control (+/–)
EQ
Switch to , , , or .
MUSIC MOVIE NEWS GAME
Mounting Holes (Optionally)
DC IN
Use the AC-to-DC power adapter and AC
power cord to connect to a wall outlet.
LINE IN Port Connection
Use a 3.5mm audio cable (not
supplied) to connect to an
additional audio device.
To an optical port (optical cable not supplied)
To a coaxial port (coaxial cable not supplied)
AUX IN Ports Connection n
Note: When using the soundbar's optical or coaxial
Use the RCA cable to connect to a
input, change the digital audio setting of the connected
TV, DVD player, game system, etc.
device to PCM. Otherwise, you will hear no sound.
5 6
5 6
Using the Soundbar
1. Turn on your device and turn down its volume.
Press G to turn on the soundbar, and turn down its
2.
volume.
3. Press INPUT to switch to
LINE, AUX, OPTICAL,
, or mode.
COAXIAL BLUETOOTH
You can also press BLUETOOTH on the remote to
go to Bluetooth mode directly.
4. Press EQ to choose a sound option or press
MUSIC, MOVIE, NEWS, or GAME on the remote.
You can customize each option by adjusting the bass
and treble sound levels, BASS +/– and TREBLE +/–.
5. After starting playback on your device, adjust
the volume of the device and soundbar to a
comfortable level.
Enabling/Disabling Auto Power-Off
In standby mode, on the soundbar, press Volume
Control +, then INPUT followed by Volume Control –.
AUTO POWER OFF DISABLED or AUTO POWER OFF
scrolls on the display.
ENABLED
When auto power-off is enabled, the soundbar enters
standby mode if:
You pause the soundbar for over 15 minutes, or
Bluetooth connection is broken for 15 minutes, or
There is no signal input for 15 minutes.
