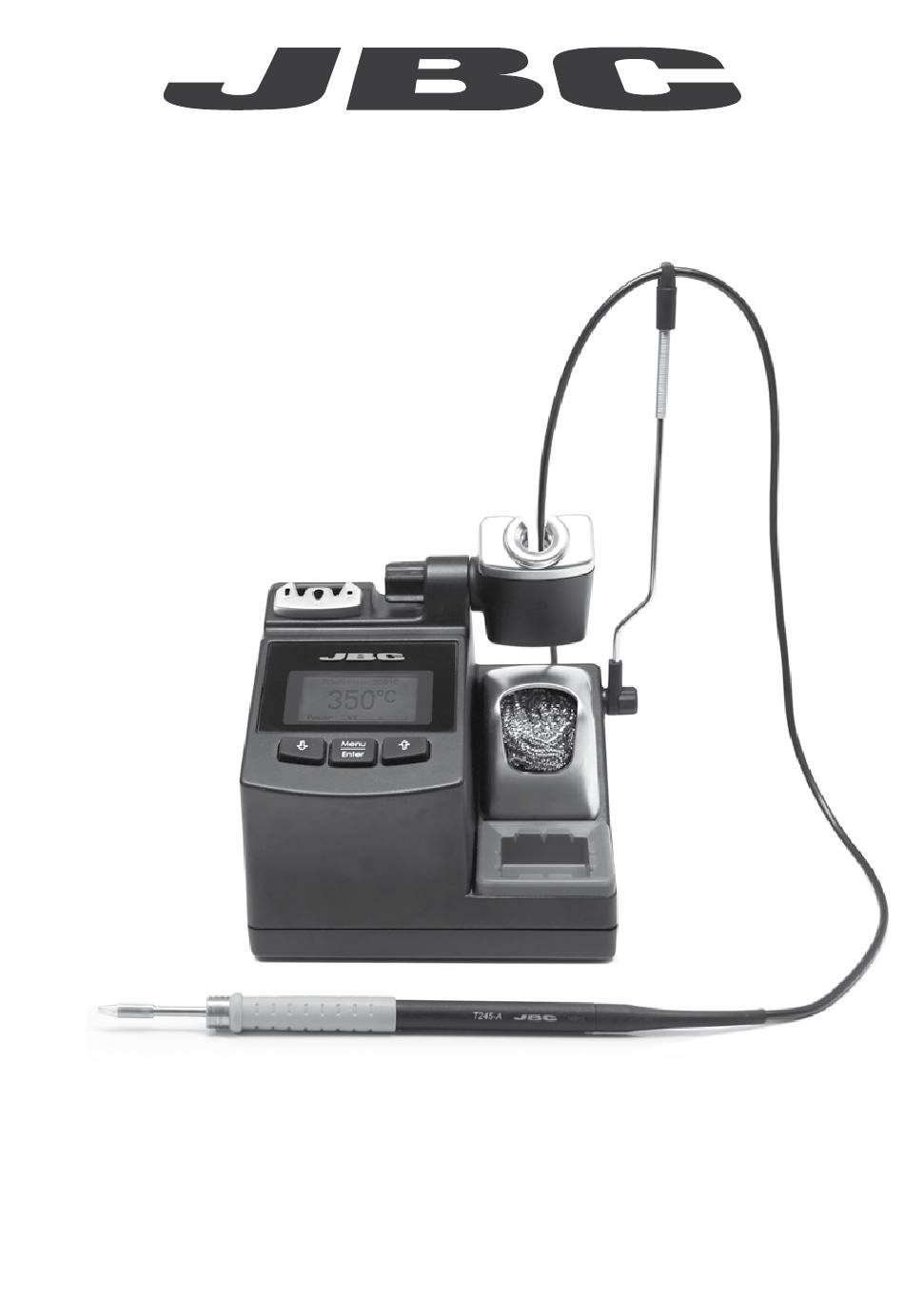

  • Page 1 English Soldering Station Ref. CD-BD...

  • Page 2: Packing List

    Cartridges ..........2 units Power Cord ..........1 unit CD Control Unit Handpiece Cartridges Ref. CD-1D (120V) Ref. T245-A Ref. C245903 CD-2D (230V) C245741 CD-9D (100V) Brass Wool Sponge Power Cord Manual Ref. CL6210 Ref. S0354 w w w.jbctools.com Soldering Station Ref. CD-BD...
  • Page 3 w w w.jbctools.com Features Cable collector CD Control Unit Ref. CD-1D (120V) CD-2D (230V) CD-9D (100V) Adjustable Stand: Intelligent Heat Management Quick Tip Changer Process Control Tip Cleaning System Handpiece Ref. T245-A Main switch Fuse Power Cord Socket USB-B connector Equipotential connection...

  • Page 4: Adjustable Stand

    Adjustable stand Adjust the tool stand to suit your work position. Cable collector Place the cable on the collector and adjust its position to avoid tangles.
  • Page 5 w w w.jbctools.com Tip Cleaning System Select the option that best suits your tip cleaning needs. Splashguard Brass Wool Ref. CL6210 Very effective cleaning method. Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. More options for the splashguard (not supplied): Metal Brush Inox Wool...
  • Page 6 Quick Tip Changer Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing Place the handpiece in the Place the handpiece on top Press the cartridge* to the extractor and remove the of the new cartridge, press fixing holes according to cartridge.

  • Page 7: Usb Connector

    JBC Updater www.jbctools.com/software.html Update the station software via USB connection: USB-B Cable USB-A JBC Manager www.jbctools.com/manager.html Manage and monitor stations connected to a Windows PC by using the JBC Manager: USB-B Cable USB-A Manager Settings Change settings for a group of JBC stations at the same time.

  • Page 8: Operation

    Operation The JBC Exclusive Heating System This revolutionary technology is able to recover the tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, the tip life increases x5 times. 1. Work 2. Sleep 3.

  • Page 9: Process Control

    w w w.jbctools.com Process Control Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 Shown when you have Levels ºC 2 7 0 3 5 0 4 0 0 selected temp. levels. Selected temp. 3 5 0 The work screen provides useful information of tool status in real time.
  • Page 10 Compatible Handpieces For precision uses C210 Cartridge range Precision Handpiece Ref. T210-A Precision Blue Grip Handpiece Ref. T210-PA This allows you to differentiate the handpiece used in soldering jobs with leaded alloys from the lead-free soldering jobs. For general uses C245 Cartridge range Handpiece Ref.
  • Page 11 w w w.jbctools.com For greater demands Important: Only work with C245 cartridges when used with a CD station. Handpieces for intensive soldering jobs requiring a continuous high thermal power. Soft touch and anti-slip grips. They feature a larger width grip and a screw which fixes the cartridge and prevents its rotation and movement.

  • Page 12: Maintenance

    Press the new fuse into the holder and If necessary use a tool to lever it off. replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 13 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.

  • Page 14: Exploded View

    Exploded View...

  • Page 15: Technical Specifications

    - Size: 150 x 175 x 145 mm - Temperature selection from 90°C (190°F) to 450°C (840°F) (±5%). - Output Peak Power CD-BD: 130W. - Safety transformer, mains separator and double isolation. - CD-1BD 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-1D - CD-2BD 230V 50/60Hz.
  • Page 16 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
