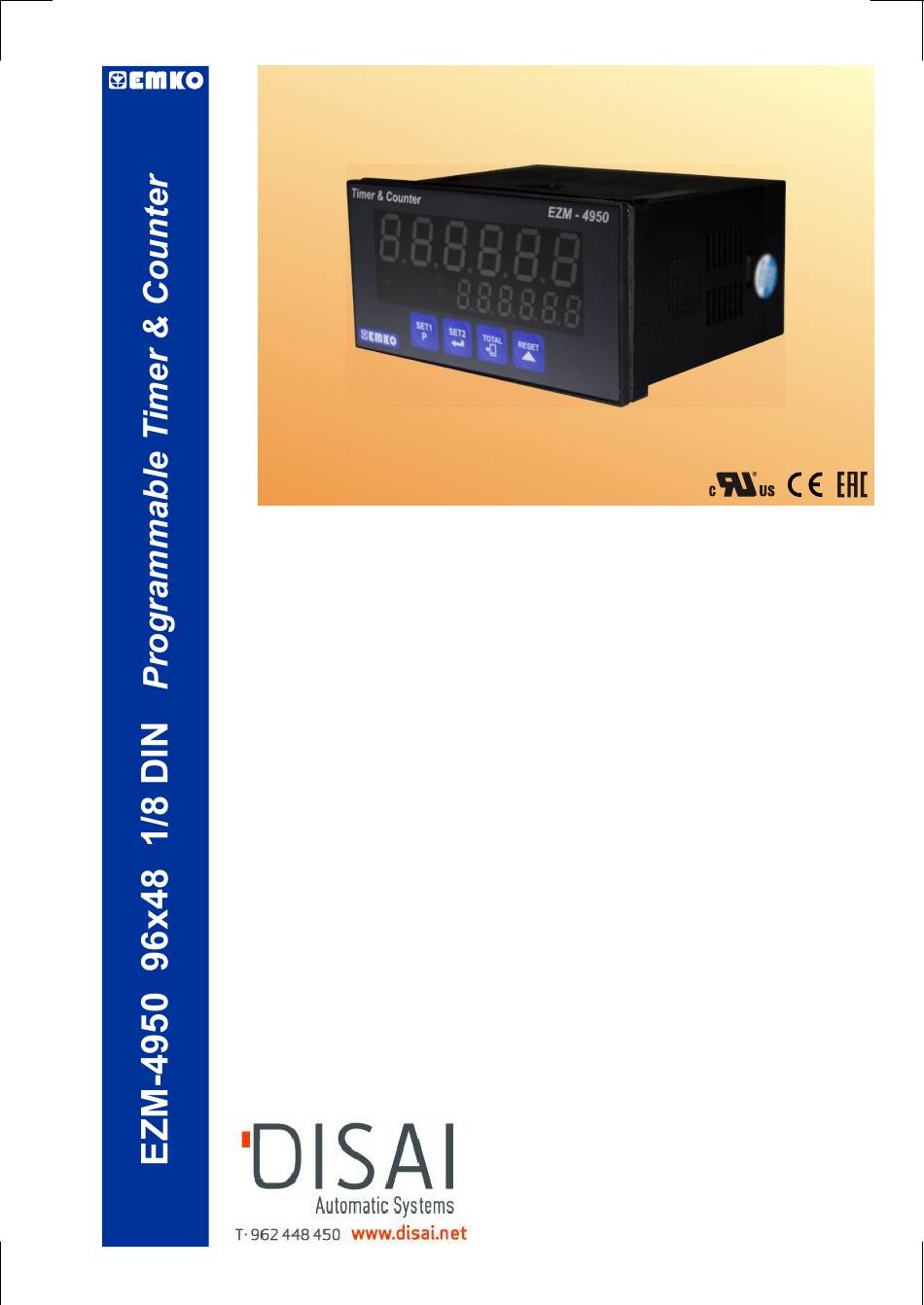

EZM-4950 96 x 48 1/8 DIN
Universal Input Programmable Timer &
Counter with Output Module System
- 6 digits Process (PV) and 6 digits Set (SV) Value Display
- Operation with 2 Set Value
- Reset , Pause and ChA-ChB Counting Inputs
- Configurable Counter / "Totalizer Counter", Batch Counter ,
Timer, Chronometer , Frequencymeter and Tachometer Functions
- Programmable Time Bases for Timer and Chronometer (Second ,
Minute , Hour )
- Operation with Automatic and Manual Reset
- Output Module System
- NPN/PNP Type Operation
- INC , DEC , INC / INC , INC / DEC , UP / DOWN , x1 / x2 / x4
Counting with Phase Shifting Property in Counter Function
- Multiplication Coefficient and Decimal Point Position
- Different Alarm Alternatives in Frequencymeter and Cycle
Measuring Functions
- Absolute or Offset Operation in Counter Function
- RS-232 (standard) or RS-485 (optional) Serial Communication
with Modbus ASCII or RTU Protocol
Instruction Manual. ENG EZM-4950 02 V03 07/14
