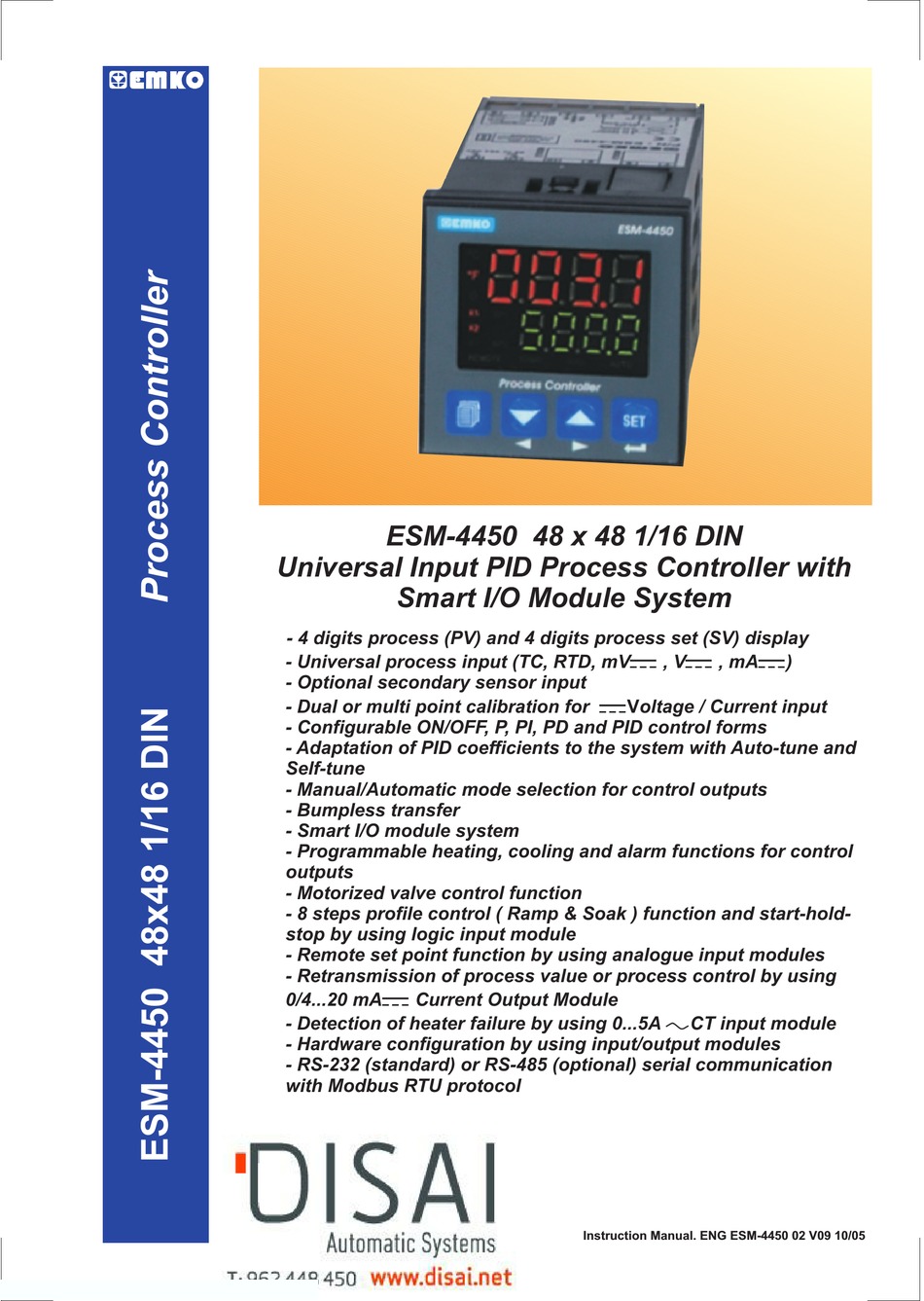

ESM-4450 48 x 48 1/16 DIN
Universal Input PID Process Controller with
Smart I/O Module System
- 4
digits process (PV) and
4 digits process set (SV) display
Z
Z
Z
- Universal process input
(TC, RTD, mV
, V
, mA
)
- Optional secondary sensor input
Z
V
- Dual or multi point calibration for
oltage / Current input
- Configurable ON/OFF, P, PI, PD and PID control forms
- Adaptation of PID coefficients to the system with Auto-tune and
Self-tune
- Manual/Automatic mode selection for control outputs
- Bumpless transfer
- Smart I/O module system
- Programmable heating, cooling and alarm functions for control
outputs
- Motorized valve control function
- 8 steps profile control ( Ramp & Soak ) function and start-hold-
stop by using logic input module
- Remote set point function by using analogue input modules
- Retransmission of process value or process control by using
Z
0/4...20 mA
Current Output Module
V
- Detection of heater failure by using 0...5A
CT input module
- Hardware configuration by using input/output modules
- RS-232 (standard) or RS-485 (optional) serial communication
with Modbus RTU protocol
Instruction Manual. ENG ESM-4450 02 V09 10/05
