EMKO ESM-3712-H Instruction Manual

Heating controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ESM-
3712-H

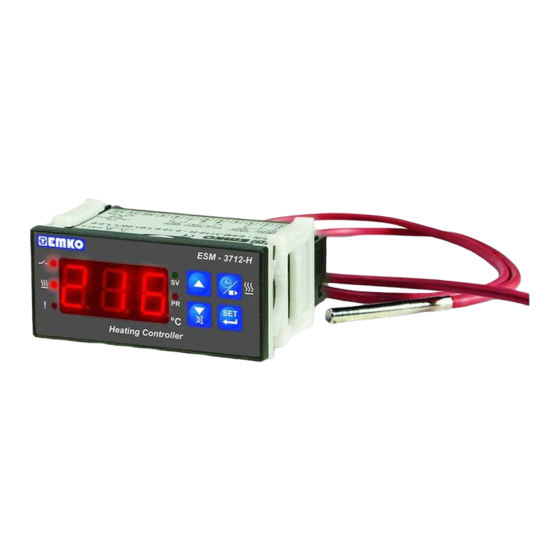

Digital, ON / OFF Heating Controller
- 3 Digits Display
- PTC Input or
J Type Thermocouple Input or,
K Type Thermocouple Input or,
2-wire PT-100 Input or,
2-wire PT-1000 Input (It must be determined in order)
- ON/OFF Control
- Adjustable Temperature Offset
- Temperature Control Output and Alarm Output
- Process and Alarm Set Values Boundaries
- Relay or SSR Driver Output
- Digital Input (Cooking time start/stop input)
- Adjustable Cooking Time (Timer) from Front Panel
- Temperature Control according to the Cooking Time (Timer)
- User can select to start Cooking Time (Timer) when
Temperature reaches to the Set Value
- Temperature Control with Manual Heating Function
- Adjustable Internal Buzzer According to Cooking Time (Timer),
Probe Defect and Alarm Status
-
Button Protection
- Password Protection for Programming Section
77 x 35 DIN
(SET + ALARM)

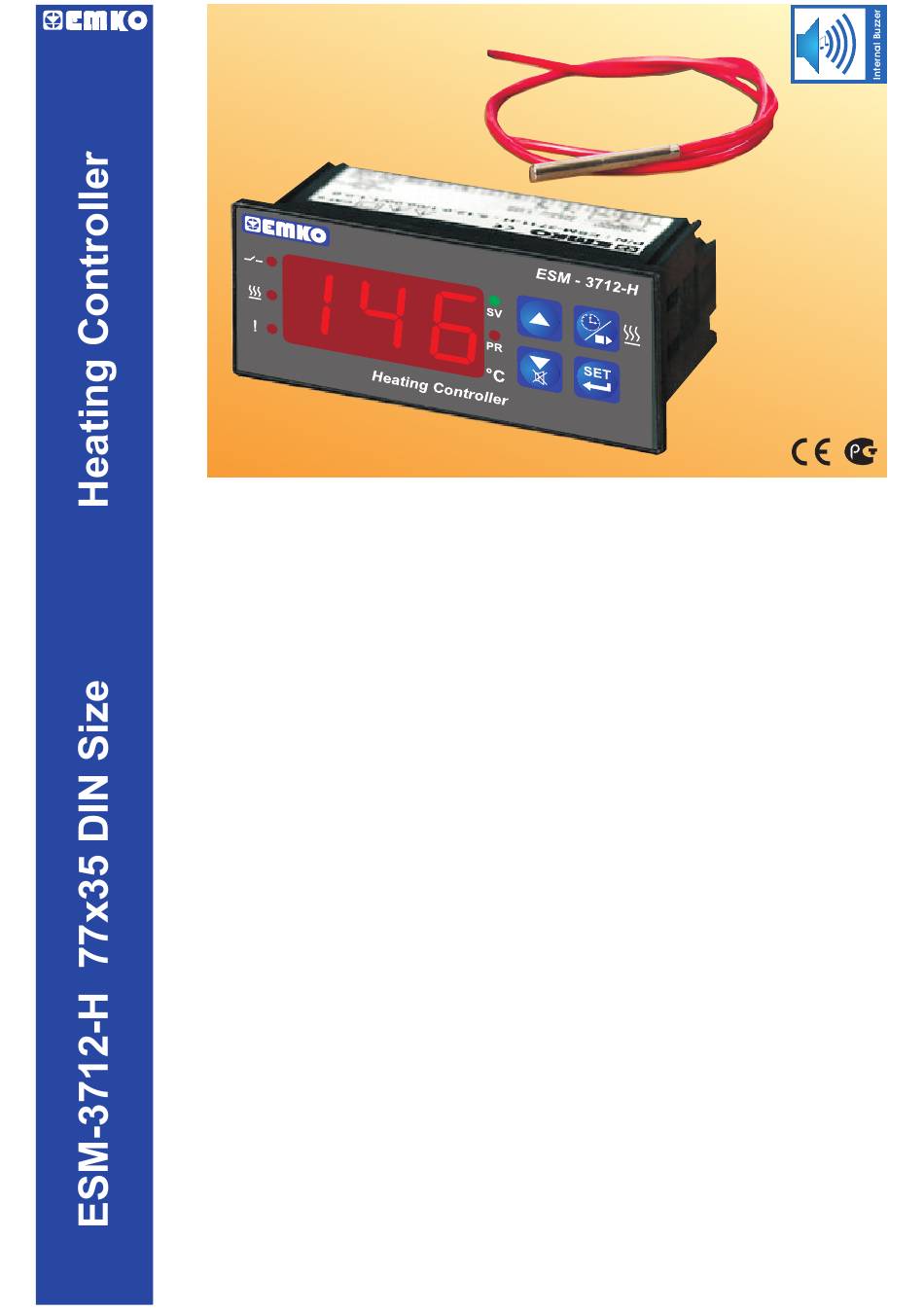

Instruction Manual. ENG ESM-3712-H 02 V00 03/07
Size

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESM-3712-H and is the answer not in the manual?

Questions and answers

Related Manuals for EMKO ESM-3712-H

Summary of Contents for EMKO ESM-3712-H

  • Page 1 Temperature reaches to the Set Value - Temperature Control with Manual Heating Function - Adjustable Internal Buzzer According to Cooking Time (Timer), Probe Defect and Alarm Status Button Protection - Password Protection for Programming Section Instruction Manual. ENG ESM-3712-H 02 V00 03/07...
  • Page 2 ABOUT INSTRUCTION MANUAL Instruction manual of ESM-3712-H Heating Controller consists of two main sections. Explanation of these sections are below. Also, there are other sections which include order information and technical specifications of the device. All titles and page numbers in instruction manual are in “...

  • Page 3: Table Of Contents

    1.2 ORDERING INFORMATION 1.3 WARRANTY 1.4 MAINTENANCE 2.INSTALLATION............................ Sayfa 2.1 GENERAL DESCRIPTION 2.2 FRONT VIEW AND DIMENSIONS OF ESM-3712-H HEATING CONTROLLER 2.3 PANEL CUT-OUT 2.4 ENVIRONMENTAL RATINGS 2.5 PANEL MOUNTING 2.6 INSTALLATION FIXING CLAMP 2.7 REMOVING FROM THE PANEL 3.ELECTRICAL WIRINGS........................
  • Page 4 EU DECLARATION OF CONFORMITY Manufacturer Company Name Emko Elektronik A.S. Manufacturer Company Address: DOSAB, Karanfil Sokak, No:6, 16369 Bursa, Turkiye The manufacturer hereby declares that the product conforms to the following standards and conditions. Product Name : Heating Controller Model Number...

  • Page 5: General Specifications

    1.Preface ESM-3712-H series Heating Controllers are designed for measuring and controlling temperature. They can be used in many applications with their easy use, On/ Off control form and cooking time properties. Some application fields which they are used are below:...

  • Page 6: Ordering Information

    1.3 Warranty EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

  • Page 7: Installation

    2.Installation Before beginning installation of this product, please read the instruction manual and warnings below carefully. In package , - One piece unit - Two pieces mounting clamps - One piece instruction manual A visual inspection of this product for possible damage occured during shipment is recommended before installation.

  • Page 8: General Description

    2.1 General Description Mounting Clamp Front Panel IP65 Protection NEMA 4X Panel Surface (maximum thickness 15mm / 0.59 inch) 2.2 Front View and Dimensions of ESM- 3712-H Heat ng Controller ESM - 3712-H 77mm / 3.03 inch...

  • Page 9: Panel Cut-Out

    Maximum 15 mm / 0.59 inch 58.5 mm / 2.30 inch 4 mm /0.16 inch 2.3 Panel Cut-Out 110 mm / 4.33 inch (min) 71mm / 2.79 inch...

  • Page 10: Environmental Ratings

    2.4 Environmental Ratings Operating Conditions Operating Temperature 0 to 50 °C Max. Operating Humidity : Rh (non-condensing) Altitude Up to 2000m. Forbidden Conditions: Corrosive atmosphere Explosive atmosphere Home applications (The unit is only for industrial applications) 2.5 Panel Mounting 1-Before mounting the device in your panel, make sure that the cut-out is of the right size.

  • Page 11: Installation Fixing Clamp

    2.6 Installation Fixing Clamp The unit is designed for panel mounting. 1-Insert the unit in the panel cut-out from the front side. 2- Insert the mounting clamps to the fixing sockets that located left and right sides of device and make the unit completely immobile within the panel Montage of the unit to a system must be done with it’s own fixing clamps.

  • Page 12: Electrical Wirings

    3.Electrical Wiring You must ensure that the device is correctly configured for your application. Incorrect configuration could result in damage to the process being controlled, and/or personal injury. It is your responsibility, as the installer, to ensure that the configuration is correct. Device parameters has factory default values.

  • Page 13: Electrical Wiring Diagram

    3.2 Electrical Wiring Diagram Electrical wiring of the device must be the same as ‘Electrical Wiring Diagram’ below to prevent damage to the process being controlled and personnel injury. CAT II P/N : ESM-3 712-H 10A@250VV 5A@250VV DIGITAL PROCESS ALARM INPUT PTC, PT-100 PT-1000...

  • Page 14: View Of The Device Label

    3.3 View of the Device Label Device Label for J Type ( 0 ; 800 ) scaled, Thermocouple input, Supply Voltage Input and Relay Outputs CAT II P/N : ESM-3712-H - 2.05.0.1/01.00/1.0.0.0 10A@250VV 5A@250VV J Type TC 50/60Hz DIGITAL PROCESS...

  • Page 15: Supply Voltage Input Connection Of The Device

    3.4 Supply Voltage Input Connection of the Device Connection of Supply Voltage Input Note-2 External Fuse (1 A T) Power Supply Switch Supply Voltage (-%15;+%10) 50/60Hz 1.5VA Note-1 : There is an internal 4R7 fusible flameproof resistor in 24V 50/60Hz supply voltage input.

  • Page 16: Temperature Sensor Input Connection

    3.5 Temperature Sensor Input Connection 3.5.1 TC (Thermocouple) Connection Connect the wires with the polarity as shown in the figure left. Always use compensation wire corresponding to the thermocouple used. If present, the shield must be connected to a proper ground. Input resistance is greater than 10M W.

  • Page 17: 100 And Pt-1000 Connection

    3.5.3 PT-100 and PT-1000 Connection PT-100 PT-1000 Input resistance is greater than 10M W. 3.6 Galvanic Isolation Test Values of ESM-3 712-H Heating Controller Galvanic Isolation Test Value For 24 V Power Supply Supply Voltage Ground Input 2000V V Standard 2000V V Process Output Relay Output...

  • Page 18: Outputs Connections

    3.7 Output Connections 3.7.1 Process Output Relay) Connection Device T Fuse Last Control Element (Contactor) Fuse Load Fuses must be selected according to the application 3.7.2 Process Output(SSR Driver) Connection Device Last Control Element (SSR) 24 V Max. 10mA Fuse Load Fuses must be selected according to the application...

  • Page 19: Alarm Output Relay) Connection

    3.7.3 Alarm Output Relay) Connection Device T Fuse Last Control Element (Contactor) Fuse Load Fuses must be selected according to the application 3.7.4 Alarm Output(SSR Driver) Connection Device Last Control Element (SSR) 24 V Max. 10mA Fuse Load Fuses must be selected according to the application...

  • Page 20: Front Panel Definition And Accessing To The Menus

    4. Front Panel Definition and Accessing to the Menus Led Indication of Process Set Value Led Indication of Programming Changing Mode is Active Mode is Active Note-1 Process Output It is used to Active Led increase the value ESM - 3712-H and access to the Cooking Time Active parameter in...

  • Page 21: Changing And Saving Process Set Value

    4.2 Changing and Saving Proses Set Value Process Set Value Screen Main Operation Screen When set button is pressed, SV led Change the Process set lights on and Process set value is value with increment and shown on the display. decrement buttons.

  • Page 22: Programming Mode Parameter List

    4.4 Programming Mode Parameter List Hysteresis Parameter for Process Output ( Default = 0 ) From 0 to 100°C for TC Type devices, From 0 to 100°C for PT-100 (-50°C , 400°C) and PT-1000 (-50°C , 400°C), From 0.0 to 10.0°C for PT-100 (-19.9°C, 99.9°C) and PT-1000 (-19.9°C, 99.9°C), From 0 to 20°C for PTC (-50°C, 150°C), From 0.0 to 10.0°C for PTC (-19.9°C, 99.9°C) Temperature...
  • Page 23 Cooking Time Starting Conditions Parameter ( Default = 0 ) ³ This parameter can be observed if cooking time (Timer) is 1. Cooking time (Timer) is started with cooking ON/OFF button or when cooking time start/stop input is getting closed condition. Cooking time (Timer) is started when temperature reaches to the process set value after pressing cooking ON/OFF button or when cooking time start/stop input is getting closed condition.
  • Page 24 Alarm Set Value High Limit Parameter ( Default = Maximum Value of Device Scale) Alarm set value can not be greater than this value. This parameter value can be adjusted from alarm set value low limit parameter value to maximum process set value parameter. Alarm On Delay Time Parameter ( Default =0) It can be adjusted from 0 to 99 minutes.

  • Page 25: Cooking Time (Timer) On/Off Operation

    4.5 Cooking Time (Timer) ON/OFF Operation 4.5.1 Cooking Time (Timer) ON/OFF Operation with Cooking Button In main operation screen, If cooking button is 3 secs Main Operation Screen pressed for 3 seconds, then cooking time (Timer) is started and cooking time active led becomes active. While cooking time (Timer) continues if cooking button is pressed for 3 seconds, cooking time (Timer) is finished and cooking time active led lights off.

  • Page 26: Operation Graphics Of Esm-3712-H Heating Controller

    4.6 Operation Graphics of ESM-3712-H Heating Controller 4.6.1 Operation Graphics of Process Output ³ 1- When cooking time parameter 1, if selection of temperature control and starting the cooking time parameter = 0 ( Temperature control and cooking time starts at power on) is selected;...
  • Page 27 ³ 3- When cooking time parameter 1, if selection of temperature control and starting the cooking time parameter = 2 ( Temperature control and cooking time (Timer) can be started by pressing cooking ON/OFF button or when cooking time start/stop input is getting closed condition) is selected;...

  • Page 28: Operation Graphics Of Alarm Output And Alarm Types

    4.6.2 Operation Graphics of Alarm Output and Alarm Types ( Alarm latching output is selected ) Power Power Time Time °C °C Alarm Alarm Status Status Time Time Decrement Alarm button must be Alarm pressed to make Output Output alarm output Active Active is passive...
  • Page 29 Deviation High Alarm Alarm Output Process Value Deviation Low Alarm Alarm Output Process Value Deviation Band Alarm Alarm Output Process Value Deviation Range Alarm Alarm Output Process Value = Process Set Value...

  • Page 30: Easy Access Diagram Of Programming Mode Parameters

    4.7 Easy Access Diagram of Programming Mode Parameters 5 secs Password Entering Main Operation Screen Programming Mode Entering Screen Screen Enter password with increment and decrement buttons Hysteresis Process Set Value Password Press SET/OK button for Minimum accessing parameters Entering Screen Process Offset Process Set Value Temperature Control...

  • Page 31: Entering To The Programming Mode, Changing And Saving Parameters

    4.8 Entering to the Programming Mode, Changing and Saving Parameters Main Operation Screen 5 secs Note-1: If programming When SET button is pressed Programming Mode mode accessing for 5 seconds, “PR” led starts Entering Screen password is 0, to blink. If programming mode Press increment hysteresis screen entering password is different...
  • Page 32 Programming Screen Minimum Process Minimum Process Set Set Value Value Parameter Press increment button for accessing Change the value with to the parameter value. Press set increment and decrement button for accessing to the next buttons. parameter. Programming Screen Minimum Process Minimum Process Set Set Value Value Parameter...

  • Page 33: Failure Messages In Esm- 3712-Hheating Controller

    5. Failure Messages in ESM- 3712-H Heating Controller Probe failure in analogue input. Sensor ESM - 3712-H connection is wrong or there is no sensor connection. When this message is on the screen, if alarm output function selection parameter is 2, alarm output becomes active and if buzzer function selection parameter...

  • Page 34: Specifications

    6. Specifications Device Type : Heating Controler Housing&Mounting : 77mm x 35mm x 62.5mm plastic housing for panel Mounting. Panel cut-out is 71x29mm. Protection Class : NEMA 4X (IP65 at front, IP20 at rear). Weight : Approximately 0.10 Kg. Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.
