Ubiquiti M900 Quick Start Manual

Carrier class airmax basestation
Hide thumbs Also See for M900:
Table of Contents

Advertisement

Quick Links

Carrier Class
airMAX
BaseStation
™
Models:
M900/M2/M3/M365/M5/M6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M900 and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti M900

Summary of Contents for Ubiquiti M900

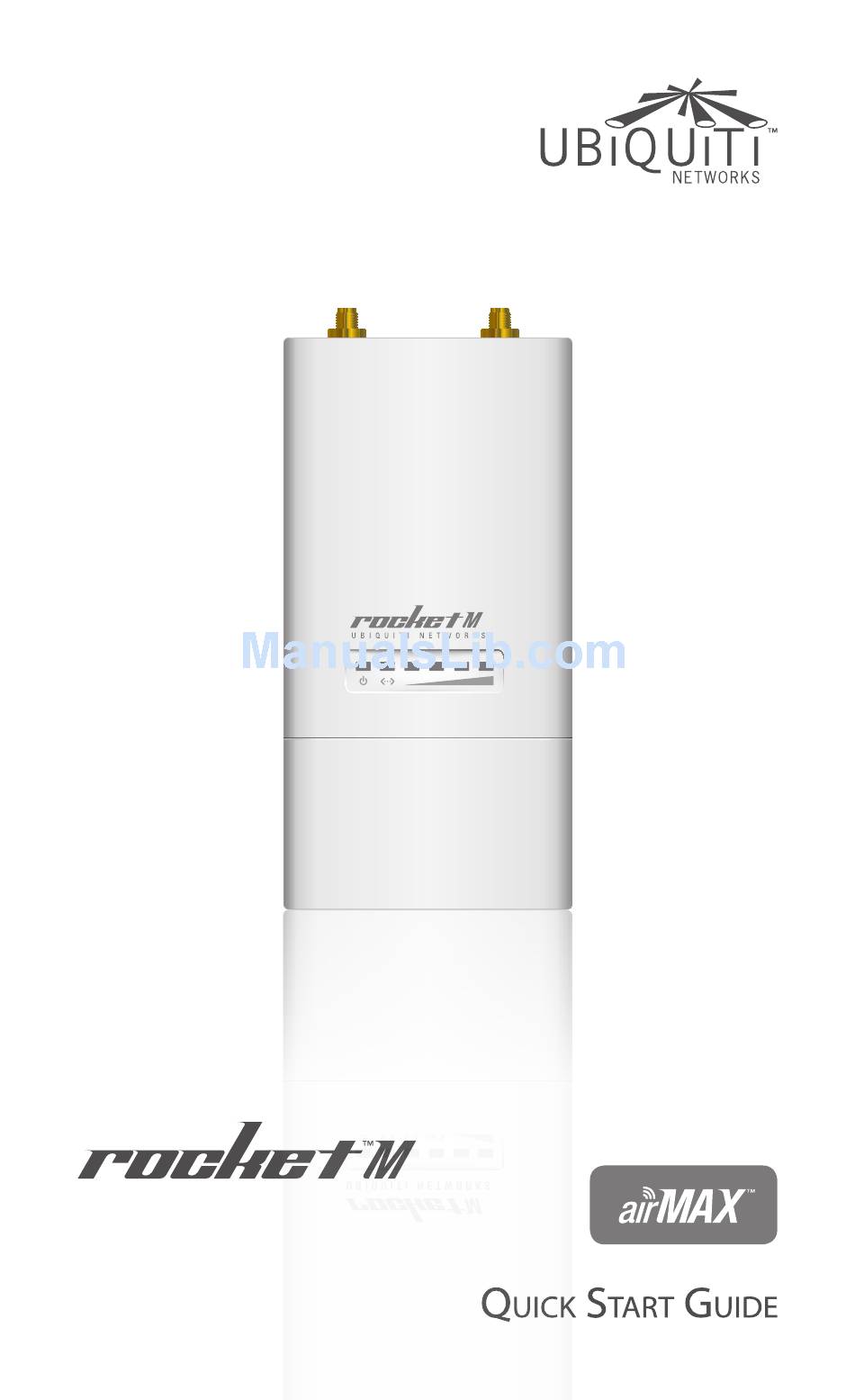

  • Page 1 Carrier Class airMAX BaseStation ™ Models: M900/M2/M3/M365/M5/M6...

  • Page 2: Package Contents

    Introduction Thank you for purchasing a Ubiquiti Networks Rocket ™ ™ series product. This Quick Start Guide is designed to guide you through installation and show you how to access the airOS ™ Configuration Interface. This Quick Start Guide also includes the warranty terms and is for use with the RocketM models without GPS.

  • Page 3: Hardware Overview

    Hardware Overview Antenna Connectors Port Cover Reset Button Ethernet Port Note: U.S. product versions are locked to the U.S. Country Code to ensure compliance with FCC regulations.
  • Page 4 LEDs Power The Power LED will light green when the device is connected to a power source. Ethernet The Ethernet LED will light steady green when an active Ethernet connection is made and flash when there is activity. Signal In airOS, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds.

  • Page 5: Hardware Installation

    Hardware Installation 1. Remove the Port Cover by lifting the release latch on the bottom of the RocketM and sliding the Port Cover off. 2. Connect an Ethernet cable to the LAN port. 3. Replace the Port Cover.
  • Page 6 4. Attach the RF Cables to the connectors labeled Chain 0 and Chain 1 on the RocketM. 5. Attach the RocketM to an antenna. Align the mounting tabs on the back of the RocketM with the mounting bracket on the antenna. Slide the RocketM down until it locks into place.
  • Page 7 6. Attach the RF Cables from the RocketM to the connectors on the antenna. Connecting to a Dish Antenna Connecting to a Sector Antenna 7. Attach the Protective Shroud. Align the arrow on the top of the Slide the Protective Shroud shroud with the short hash mark on down over the RocketM until it the Dish Antenna, and then rotate...

  • Page 8: Pole Mounting

    Pole‑Mounting To mount the RocketM on a pole, use the included Metal Strap and perform the following steps: 1. Open the Metal Strap by turning the screw counter‑clockwise. You can loosen it by hand or use a flathead screwdriver. 2. Straighten out the end of the Metal Strap and slide it through the back of the RocketM.
  • Page 9 3. Wrap the Metal Strap around the pole. To tighten the strap, turn the screw clockwise using a flathead screwdriver.

  • Page 10: Connecting Power Over Ethernet

    Connecting Power over Ethernet 1. Connect the other end of the Ethernet cable from the RocketM to the Ethernet port labeled POE on the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. 3.
  • Page 11 Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the RocketM. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.

  • Page 12: Installer Compliance Responsibility

    Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional...

  • Page 13: Specifications

    Specifications RocketM Dimensions 16 x 8 x 3 cm Weight 0.5 kg Operating Frequency RocketM900 902 ‑ 928 MHz 2402 ‑ 2462 MHz RocketM2 RocketM3 3370 ‑ 3730 MHz RocketM365 3650 ‑ 3675 MHz RocketM5 5170 ‑ 5875 MHz RocketM6 5955 ‑...

  • Page 14: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 15: Limited Warranty

    UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.

  • Page 16: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 17 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 18: Industry Canada

    Industry Canada This Class A digital apparatus complies with Canadian ICES‑003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 19 Cet appareil numérique de la classe A est confrome à la norme NMB‑003 Canada. Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie.

  • Page 20: Rohs/Weee Compliance Statement

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Alert Sign (!) Follows CE Marking Alert sign must be indicated if a restriction on use applied to the product and it must follow the CE marking.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 22: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.

  • Page 23: Online Resources

    Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. Lietuviškai UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB [Lithuanian] Direktyvos nuostatas.
  • Page 24 . u b n t . c o m © 2012‑2013 Ubiquiti Networks, Inc. All rights reserved. J051313—720‑00025‑01...
