Package Contents

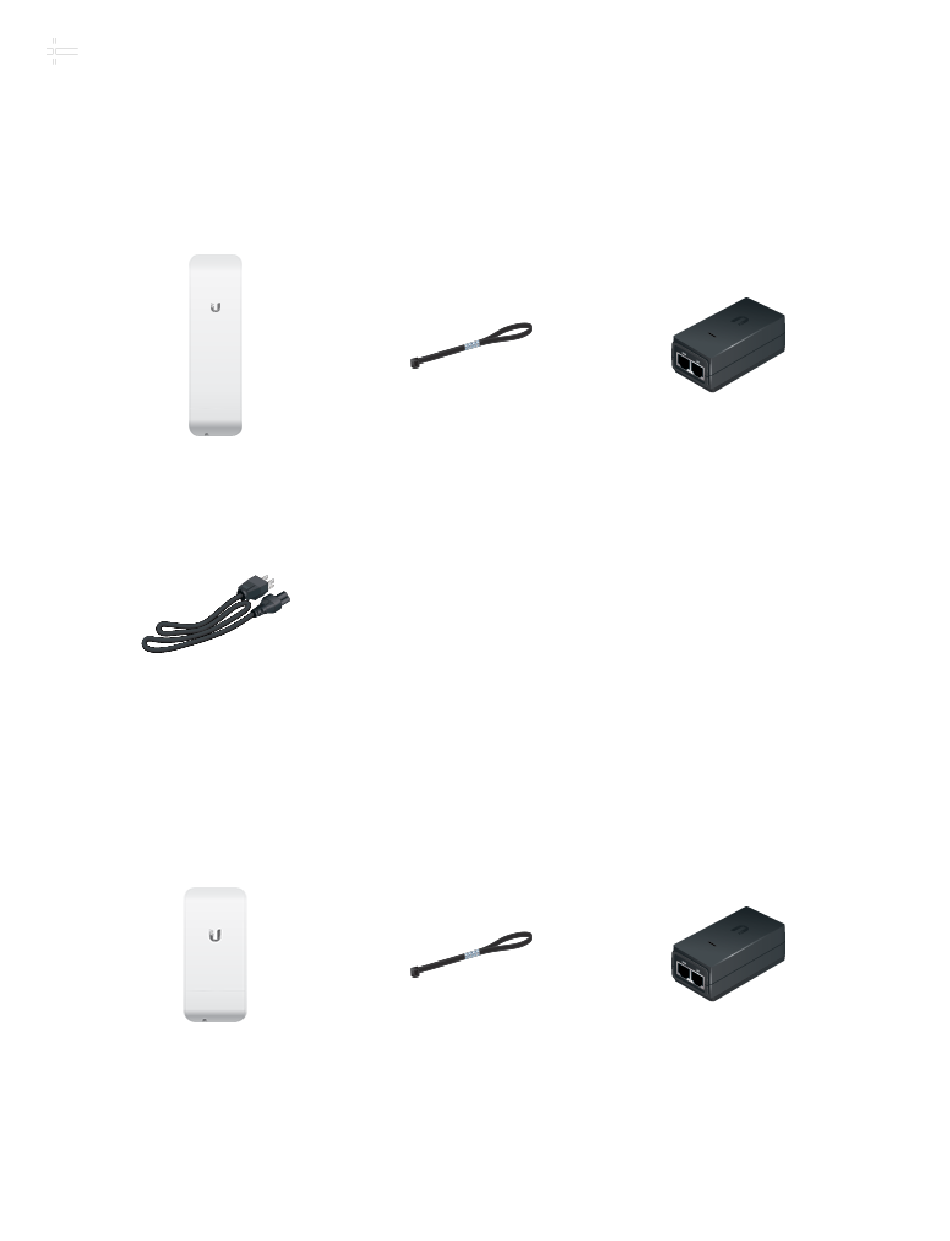

NSM2/NSM3/NSM365/NSM5

NanoStation M2/M3/M365/M5

Mounting bracket

locoM2/locoM5

NanoStationloco M2/M5

https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html

NanoStationM/locoM-Series Quick Start Guide

Flange

PoE (24V, 0.5A) with

mounting bracket

PoE (24V, 0.5A) with

mounting bracket

1/19

Need help?

Do you have a question about the NanoStationM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti NanoStationM Series

Page 1 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide Package Contents NSM2/NSM3/NSM365/NSM5 NanoStation M2/M3/M365/M5 Flange PoE (24V, 0.5A) with mounting bracket Mounting bracket locoM2/locoM5 NanoStationloco M2/M5 Flange PoE (24V, 0.5A) with mounting bracket https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 1/19...
Page 2 Category 5 (or higher) shielded cabling with drain wire must be used for all Ethernet connections and must be connected to the PoE AC ground. We recommend that you protect your networks from harmful outdoor environments and electrostatic discharge phenomena with Ubiquiti's industrial- grade Ethernet shielded cable. For more information, visit ui.com/toughcable Surge protection must be used at all outdoor installations.
Page 3 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide at the building entry point. The ETH-SP will absorb surges and safely discharge NanoStationM/locoM-Series Quick Start Guide them to the ground. Hardware Overview NSM2/NSM3/NSM365/NSM5/locoM2/locoM5 https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 3/19...
Page 4 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 4/19...
Page 5 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide Power LED The LED indicator will light green when the device is connected to a power source. LAN1 LED The LED indicator will light solid green when the device is connected to an Ethernet network using the main or LAN port and will flash if there is activity.
Page 6 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide remotely using the reset button located on the bottom of the PoE adapter. NanoStationM/locoM-Series Quick Start Guide * The main port is called LAN on the NanoStationlocoM2/M5. locoM9 Power LED The LED indicator will light green when the device is connected to a power source.
Page 7 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide LAN1 LED NanoStationM/locoM-Series Quick Start Guide The LED indicator will light solid green when the device is connected to an Ethernet network using the main or LAN port and will flash if there is activity. LED signal indicators In airOS®, you can modify the threshold value for the wireless LED signal strength.
Page 8 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 8/19...
Page 9 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 9/19...
Page 10 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 10/19...
Page 11 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 11/19...
Page 12 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide Connecting the power supply WARNING: The port switch must meet the power specifications listed in this quick start guide. https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 12/19...
Page 13 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationM/locoM-Series Quick Start Guide EITHER Optional Accessing airOS Check connectivity in the airOS configuration interface. 1. Check that your host is connected via Ethernet to the device. https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 13/19...
Page 14 The airOS settings interface will open, allowing you to customize your settings as needed. For more information, see the user guide available at ui.com/download/airmax You can also manage your device using the Ubiquiti Internet Service Provider network management system. Configuration using the UISP ™ application requires the U-Installer, which is sold separately.
Page 15 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStation M2/M3/M365/M5 NanoStationM/locoM-Series Quick Start Guide Mounting Pole mount (kit included) Operating temperature -30 to 75° C (-22 to 167° F) Operating humidity 5 to 95% non-condensing Operating frequency (MHz) of NSM2/NSM3/NSM365 NSM2 2412 - 2462 NSM3 3400 - 3700 NSM365...
Page 16 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide NanoStationlocoM2/M5/M9 NanoStationM/locoM-Series Quick Start Guide Mounting Pole mount (kit included) Operating temperature -30 to 75° C (-22 to 167° F) Operating humidity 5 to 95% non-condensing locoM2 Operating Frequency (MHz) Worldwide 2412 - 2462 Operating Frequency (MHz) of locoM5 Worldwide 5150 - 5875...
Page 17 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide 3. This equipment is supplied with a detachable power supply cord which has an integral safety NanoStationM/locoM-Series Quick Start Guide earth wire designed to be connected to a safety earth socket. a. Do not substitute the power cord with anything other than the approved type provided. Never use an adapter plug to connect to a two-wire outlet, as this will disrupt the continuity of the ground wire.
Page 18 13/2/25, 17:55 NanoStationM/locoM-Series Quick Start Guide This device complies with ISED Canada license-exempt RSS standard(s). Operation is subject NanoStationM/locoM-Series Quick Start Guide to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device.
Page 19 Operation in the 5.8 GHz frequency band is prohibited in member states with fixed wireless broadband access. All other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of conformity Online Resources © 2025 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/NanoStationM_NanoStationlocoM/NanoStationM_NanoStationlocoM_ES.html 19/19...
