Summary of Contents for Ubiquiti AG-HP-5G27

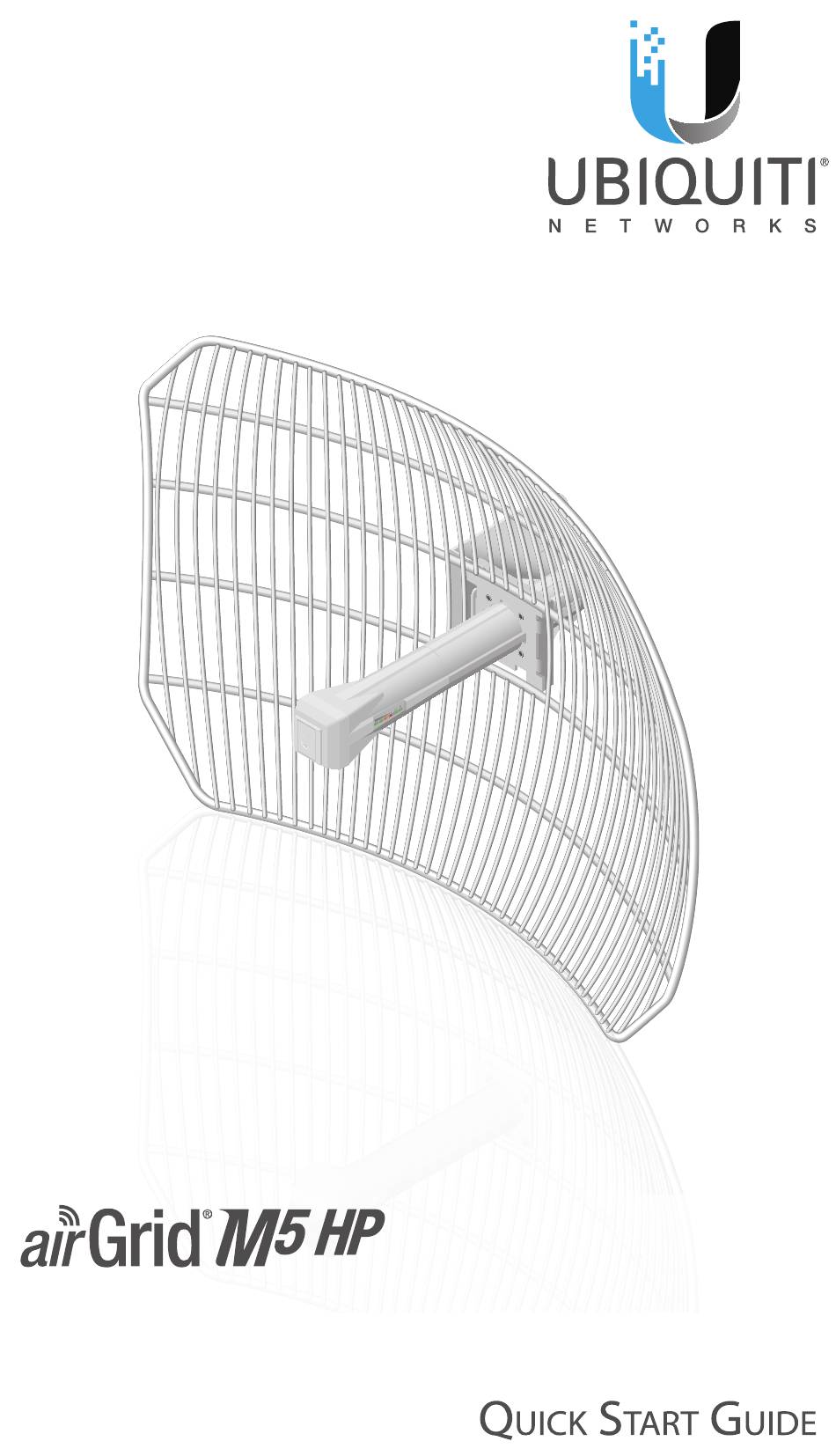

- Page 1 5 GHz High-Performance Integrated InnerFeed ® Antenna Model: AG-HP-5G27...
-
Page 2: Package Contents
* The Feed Extender, Grid Reflector and mounting hardware are packaged separately. Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™... -
Page 3: Installation Requirements
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable Application Examples... - Page 4 LEDs Signal In airOS®, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds. The default values are shown below: LED will light green when the wireless signal strength is above ‑65 dBm. LED will light green when the wireless signal strength is above ‑73 dBm.
-
Page 5: Hardware Installation
Hardware Installation Assemble the airGrid according to your chosen polarization. 1. Attach the L-Bracket to the Grid Reflector by sliding the tabs into the slots. Vertical Polarization Horizontal Polarization IMPORTANT: The polarization of the airGrids must match on both ends of the wireless link (horizontal to horizontal, vertical to vertical). - Page 6 3. Attach the Rear Housing: a. Ensure the four alignment holes on the Grid Reflector and L-Bracket are lined up. b. Orient the Rear Housing with the locking tab of the cable feed door facing up. c. Insert the alignments pins of the Rear Housing into the alignment holes, and push until the Rear Housing locks into place with a click.
- Page 7 4. Lift the locking tab of the cable feed door and detach the door from the Rear Housing. 5. Route an Ethernet cable through the Rear Housing and Feed Extender. Connect the cable to the Ethernet port on the back of the Antenna Feed.
- Page 8 6. Attach the Antenna Feed: a. Rotate the Antenna Feed to match the signal polarization. b. Insert the Antenna Feed into the Feed Extender, and push until it locks into place with a click. Vertical Polarization Horizontal Polarization 7. Lightly pull the Antenna Feed to ensure that the Release Button is fully engaged and locked into place.
- Page 9 8. The Release Button indicates the Antenna Feed polarization. Confirm that the polarization indicator, V or H, on the Antenna Feed matches the indicator on the Grid Reflector. IMPORTANT: The polarization indicators must match. Vertical Polarization Horizontal Polarization 9. Re-attach the cable feed door to the Rear Housing. Ensure the locking tab securely latches to the Rear Housing.
- Page 10 10. Slide the Pole Clamp onto the L-Bracket. 11. Insert the U-Bolt into the Pole Clamp and L-Bracket. Secure each end of the U-Bolt with a Flange Nut. 9 N · m (80 lb-in) Note: The mounting assembly can accommodate a Ø...
- Page 11 Connect the power using one of the following options: • Using the included Gigabit PoE Adapter: Go to Connecting to the PoE Adapter. • Using a separate PoE switch: Connect the Ethernet cable from the device to a PoE‑enabled Ethernet port on the switch.
- Page 12 airOS Configuration Verify connectivity in the airOS Configuration Interface and select the airGrid antenna size. 1. Make sure that your host machine is connected via Ethernet to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
- Page 13 Customize additional settings as needed to complete the installation. For additional details on the airOS Configuration Interface, refer to the User Guide available at: www.ubnt.com/download/airmax You can also manage your device using the Ubiquiti® Network Management System. Setup using the UNMS app requires ™...
-
Page 14: Installer Compliance Responsibility
Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna and Output Power fields are provided to the professional installer to assist in... -
Page 15: Specifications
Specifications AG‑HP‑5G27 Dimensions 620 x 460 x 360 mm (24.41 x 18.11 x 14.17") Weight 2585 g (91.18 oz) Networking Interface (1) 10/100 Ethernet Port Enclosure Outdoor UV Stabilized Plastic Frequency 5725 ‑ 5850 MHz Gain 27 dBi Output Power 25 dBm Max. -
Page 16: Safety Notices
(the “Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under... -
Page 17: Warranty Conditions
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 18: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 19 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 20 CAN ICES‑3(A)/NMB‑3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : l’appareil ne doit pas produire de brouillage; l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
-
Page 21: Rohs/Weee Compliance Statement
Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 ‑ 5350 MHz frequency range within all member states. Note: All countries listed may operate at 30 dBm. - Page 22 Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben. Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados.
-
Page 23: Declaration Of Conformity
Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique du type AG-HP-5G27 est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l’adresse internet suivante: www.ubnt.com/compliance Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp AG-HP-5G27... -
Page 24: Online Resources
Slovenčina [Slovak] UBIQUITI NETWORKS týmto vyhlasuje, že rádiové zariadenie typu AG-HP-5G27 je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.ubnt.com/compliance Slovenščina [Slovenian] UBIQUITI NETWORKS potrjuje, da je tip radijske opreme AG-HP-5G27 skladen z Direktivo 2014/53/EU.
