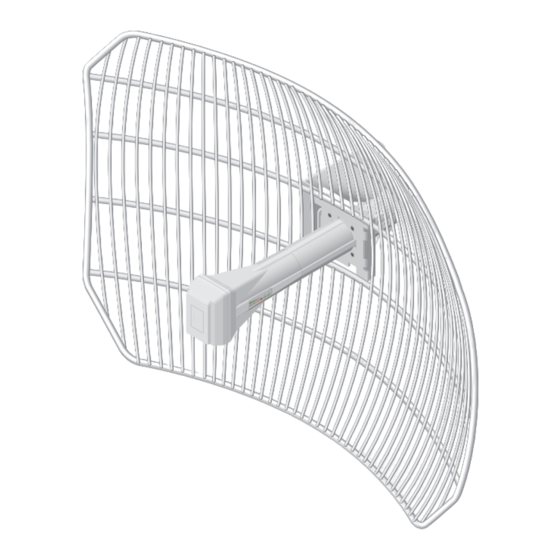

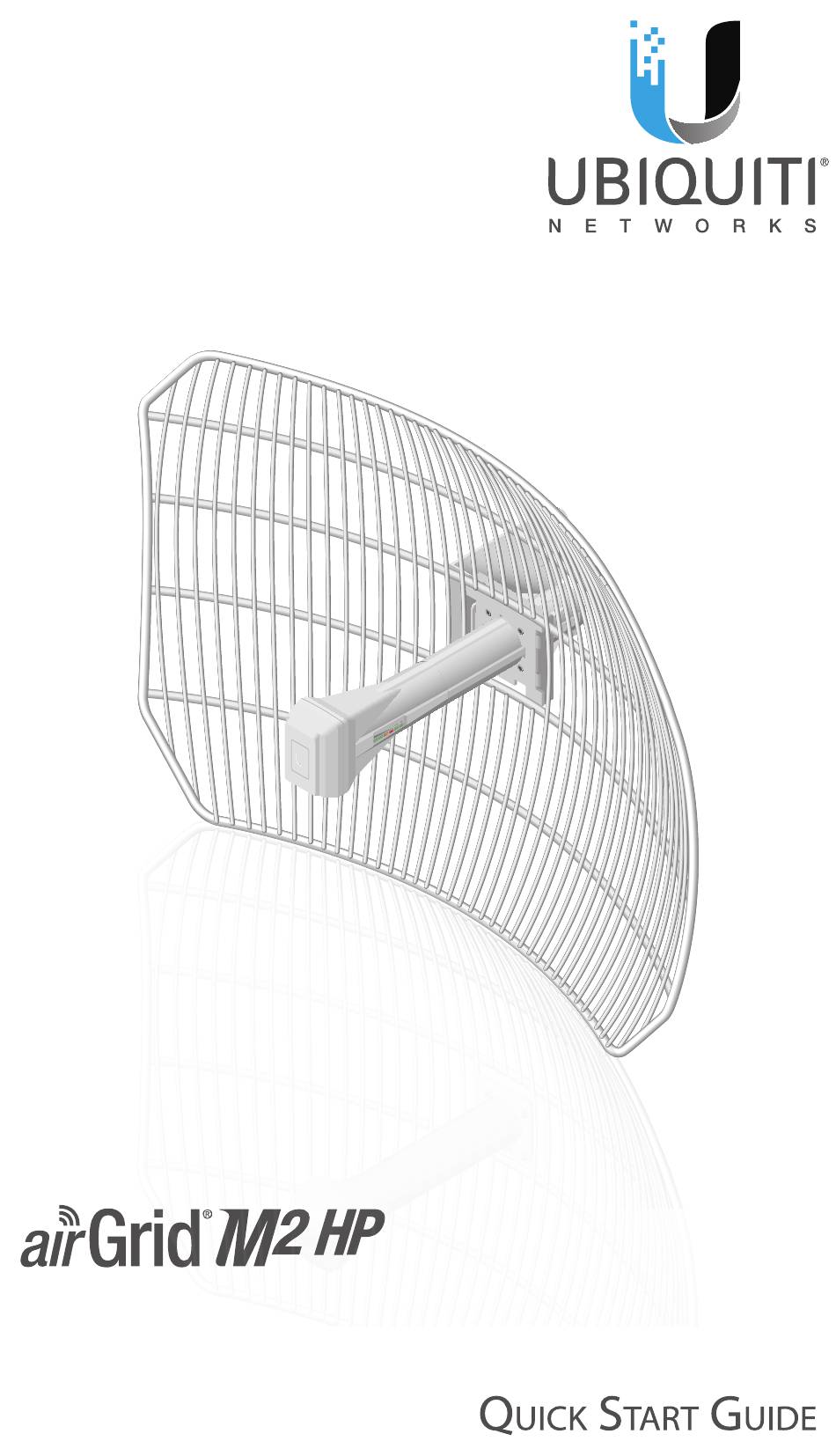

- Page 1 2.4 GHz High-Performance Integrated InnerFeed ® Antenna Model: AG-HP-2G20...
-
Page 2: Package Contents
* The Feed Extender, Grid Reflector and mounting hardware are packaged separately. Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™... -
Page 3: Installation Requirements
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable Application Examples... - Page 4 LEDs Signal In airOS, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds. The default values are shown below: LED will light green when the wireless signal strength is above ‑65 dBm. LED will light green when the wireless signal strength is above ‑73 dBm.
-
Page 5: Hardware Installation
Hardware Installation Assemble the airGrid according to your chosen polarization. 1. Attach the L-Bracket to the Grid Reflector by sliding the tabs into the slots. Vertical Polarization Horizontal Polarization IMPORTANT: The polarization of the airGrids must match on both ends of the wireless link (horizontal to horizontal, vertical to vertical). - Page 6 3. Attach the Rear Housing: a. Ensure the four alignment holes on the Grid Reflector and L-Bracket are lined up. b. Orient the Rear Housing with the locking tab of the cable feed door facing up. c. Insert the alignments pins of the Rear Housing into the alignment holes, and push until the Rear Housing locks into place with a click.
- Page 7 5. Lift the locking tab of the cable feed door and detach the door from the Rear Housing. 6. Route an Ethernet cable through the Rear Housing and Feed Extender. Connect the cable to the Ethernet port on the back of the Antenna Feed.
- Page 8 7. Attach the Antenna Feed: a. Rotate the Antenna Feed to match the signal polarization. b. Insert the Antenna Feed into the Feed Extender, and push until it locks into place with a click. Vertical Polarization Horizontal Polarization 8. Lightly pull the Antenna Feed to ensure that the Release Button is fully engaged and locked into place.
- Page 9 9. The Release Button indicates the Antenna Feed polarization. Confirm that the polarization indicator, V or H, on the Antenna Feed matches the indicator on the Grid Reflector. IMPORTANT: The polarization indicators must match. Vertical Polarization Horizontal Polarization 10. Re-attach the cable feed door to the Rear Housing. Ensure the locking tab securely latches to the Rear Housing.
- Page 10 11. Slide the Pole Clamp onto the L-Bracket. 12. Insert the U-Bolt into the Pole Clamp and L-Bracket. Secure each end of the U-Bolt with a Flange Nut. 9 N-m (80 lb-in) Note: The mounting assembly can accommodate a Ø 32 ‑ 56 mm (1.25 ‑ 2.2") pole.
- Page 11 Connecting to Power over Ethernet 1. Connect the Ethernet cable from the airGrid to the POE port of the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the PoE Adapter. 3. Connect the Power Cord to the adapter, and then plug the Power Cord into a power outlet.
- Page 12 airOS® Configuration Verify connectivity in the airOS Configuration Interface and select the airGrid antenna size. 1. Make sure that your host system is connected via Ethernet to the airGrid. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
- Page 13 5. Select the airGrid antenna size: a. Click the Wireless tab. b. From the Antenna drop-down list, select the appropriate option. c. Click Change to save. d. Click OK to confirm. Customize additional settings as needed to complete the installation. For additional details on the airOS Configuration Interface, refer to the User Guide available at: documentation.ubnt.com/airmax...
-
Page 14: Installer Compliance Responsibility
Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna and Output Power fields are provided to the professional installer to assist in... -
Page 15: Specifications
Specifications AG‑HP‑2G20 Dimensions 620 x 460 x 390 mm (24.41 x 18.11 x 15.35") Weight 2603 g (91.82 oz) Networking Interface (1) 10/100 Ethernet Port Enclosure Outdoor UV Stabilized Plastic Frequency 2412 ‑ 2462 MHz Gain 20 dBi Output Power 28 dBm Max. -
Page 16: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 17: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 18: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 20: Industry Canada
Industry Canada This Class A digital apparatus complies with Canadian ICES‑003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. - Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 23: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 24: Online Resources
. u b n t . c o m ©2013‑2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airGrid, airMAX, airOS, InnerFeed, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
