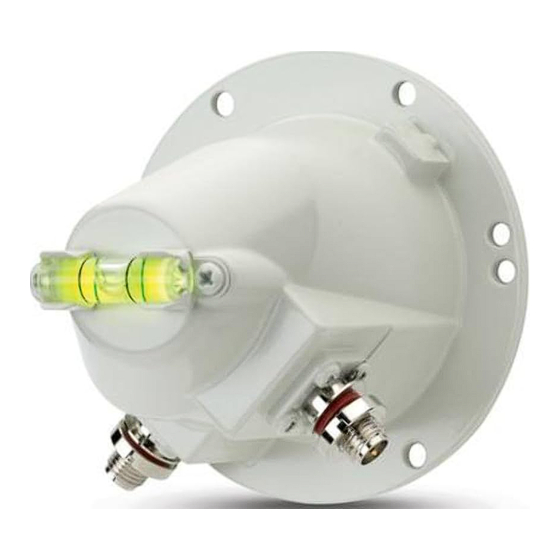

- Page 1 5 GHz RocketDish to airFiber ™ ® Antenna Conversion Kit Model: AF-5G-OMT-S45...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® 5 GHz RocketDish to airFiber X Antenna Conversion Kit, model AF‑5G‑OMT‑S45. The kit converts the RocketDish RD‑5G30 or RD‑5G34 antenna for use with an airFiber X radio. This Quick Start Guide is designed to guide you through the installation. -
Page 3: Before You Begin
Before You Begin You'll need a driver for use with the included Phillips Bit. Note: The Phillips Bit has sharper point detail to engage into the painted screw recess. Japanese Industrial Standard (JIS) type screwdrivers with this profile are available from online sources and industrial suppliers. - Page 4 1. Remove the ring, rubber gasket, and washer around the SMA connector on the rear right side of the RocketDish antenna feed.
- Page 5 2. Use a driver with the included Phillips Bit to remove the four screws holding the SMA connector in place.
- Page 6 3. Remove the SMA connector. *640-00169-02* 640-00169-02...
- Page 7 4. Use a driver with the included Phillips Bit to remove the screws securing the OMT to the RocketDish.
- Page 8 5. Remove the OMT from the RocketDish. Note: The Seal Ring Groove is designed to hold the Seal Ring. The existing Seal Ring may be reused without removal. A new Seal Ring is provided if needed. Seal Ring Groove with Seal Ring...
- Page 9 6. Align the airFiber OMT with the connectors toward the radio mount and the level horizontal. Note: Only the five screws included are used. Placement depends upon the RocketDish. Older RocketDish Models The hole positions at one, three, five, nine, and eleven o’clock are used.
- Page 10 Newer RocketDish Models The hole positions at one, two‑thirty, five, nine, and eleven o’clock are used.
- Page 11 7. Use a driver with the included Phillips Bit to secure the airFiber OMT to the antenna using the included five Screws.
- Page 12 . u b n t . c o m ©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, and RocketDish are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
