StarTech.com PEXUSB312A Instruction Manual

Instruction manual
2-port USB 3.1 Gen 2 card - 10 Gbps - 2x USB-A - PCIe
PEXUSB312A
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging contents
• 1 x 2-port USB 3.1 card
• 1 x low-profile bracket
• 1 x instruction manual
System requirements
• Computer with an available PCI Express® slot (x4, x8, x16)
• 15-pin SATA power connector
• Any of the following operating systems:
• Windows® 7 (32-bit or 64-bit)
• Windows 8 (32-bit or 64-bit)
• Windows 8.1 (32-bit and 64-bit)
• Windows Server 2012
• Linux® 3.5
Operating system requirements are subject to change. For the latest
requirements, please visit www.startech.com/PEXUSB312A.

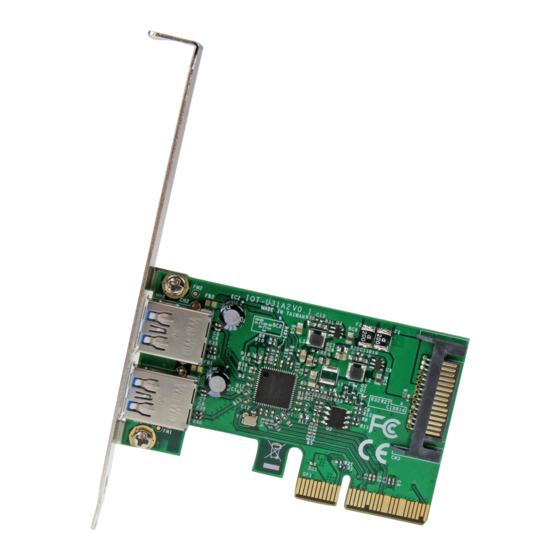

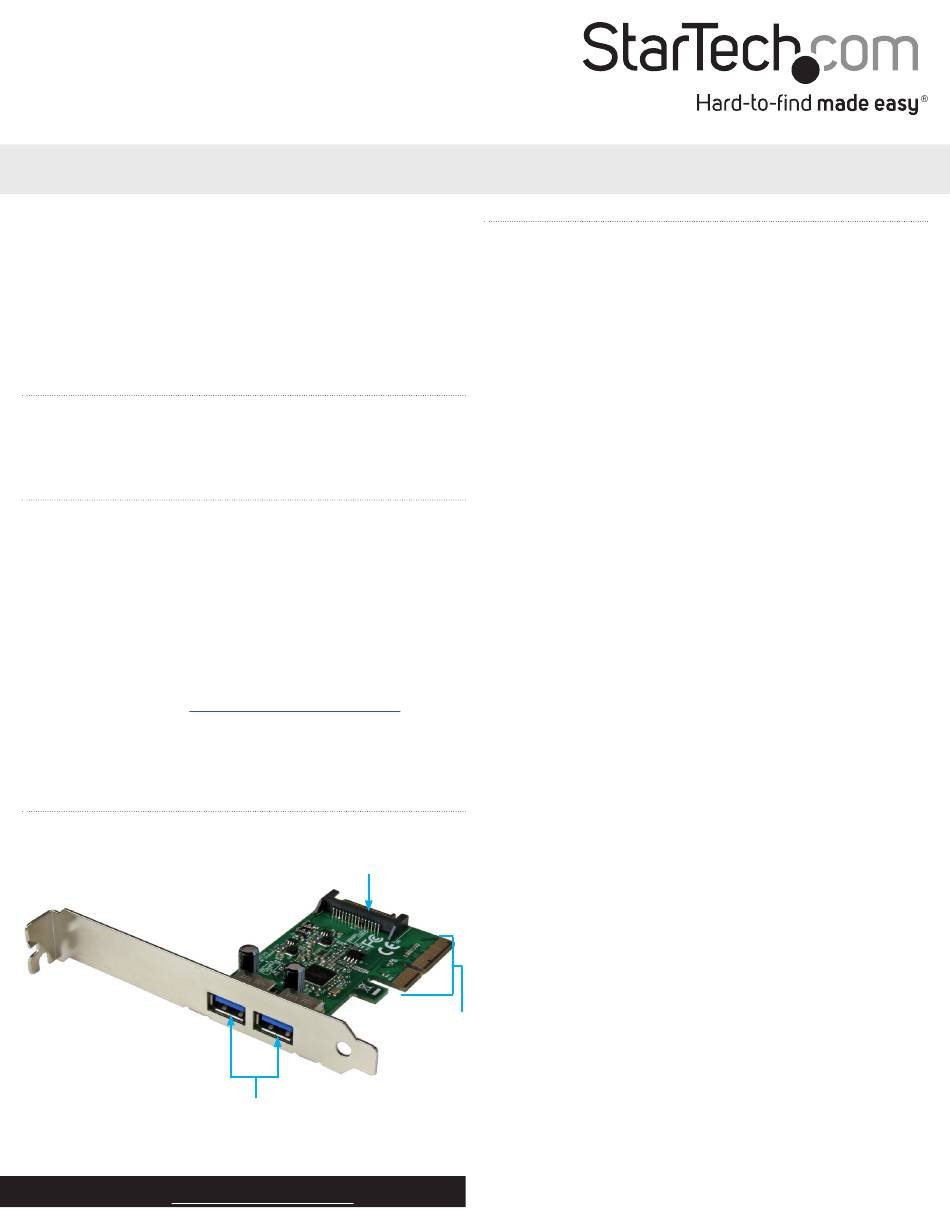

Product diagram
USB 3.1 connector
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/PEXUSB312A.
SATA power connector
PCIe x4
connector
*actual product may vary from photos
Installation
Install the USB 3.1 card
WARNING!
USB cards can be severely damaged by static electricity. Make sure
that you're properly grounded before you open your computer case
or touch your USB card. You should wear an anti-static strap when
you install any computer component. If an anti-static strap isn't
available, discharge any built-up static electricity by touching a large
grounded metal surface for several seconds. Only handle the USB
card by its edges and don't touch the gold connectors.
1. Turn off your computer and any devices or peripherals that are
connected to it (for example, printers, external hard drives, and
so on).
2. Unplug the power cable from the back of your computer.
3. Disconnect any peripheral devices that are connected to your
computer.
4. Remove the cover from your computer case. Consult the
documentation that came with your computer for details about
how to do this safely.
5. Locate an open PCI Express slot and remove the corresponding
metal cover plate from the back of your computer case. Consult
the documentation that came with your computer for details
about how to do this safely. This card works in PCI Express slots of
additional lanes (x4, x8, or x16 slots).
6. Gently insert the card into the open PCI Express slot and fasten
the bracket to the back of the case.
Note: If you install the card into a small form factor or a low-profile
desktop system, it may be necessary to replace the preinstalled
standard-profile bracket with the included low-profile (half-height)
installation bracket.
7. Connect a 15-pin SATA power connector from your computer's
power supply to the SATA power connector on the card.
8. Place the cover back onto your computer case.
9. Reconnect the power cable to the back of your computer.
10. Reconnect all of the peripheral devices that you disconnected in
step 3.
11. Turn on your computer.
Note: If a power source isn't connected to your USB card, your
system won' t recognize it.
The available bandwidth (x Gbps) is shared equally between the two
ports.
Manual Revision: 06/09/2015
