Summary of Contents for Ross SRA-8802

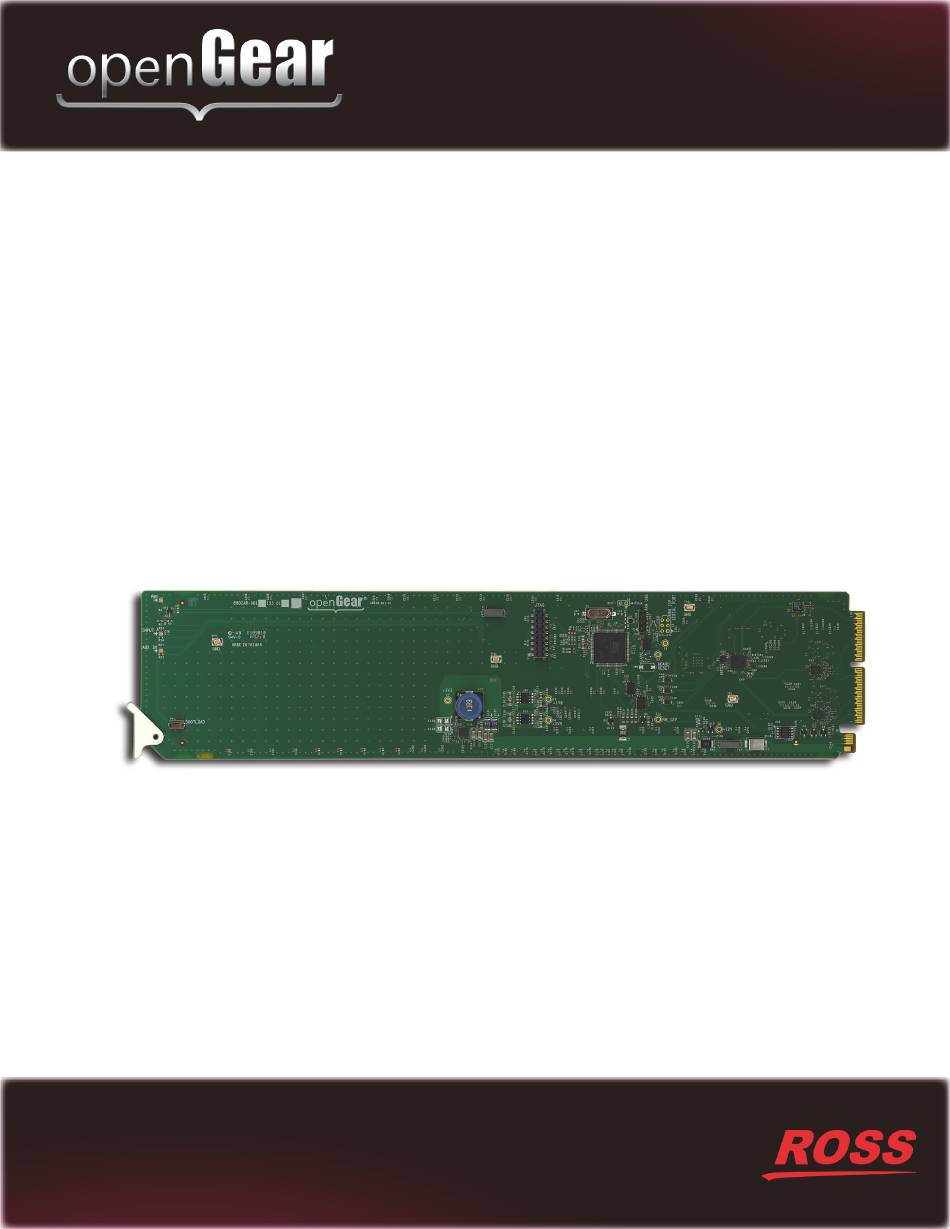

- Page 1 SRA-8802 Single 3G/HD/SD Reclocking Distribution Amplifier User Manual...
- Page 2 Ross has become well known for the Ross Video Code of Ethics. It guides our interactions and empowers our employees. I hope you enjoy reading it below. If anything at all with your Ross experience does not live up to your expectations be sure to reach out to us at solutions@rossvideo.com.
- Page 3 Ross Video. While every precaution has been taken in the preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.
- Page 4 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Notice — Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the user’s authority to operate this equipment. Canada This Class “A”...
- Page 5 To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner.
-
Page 7: Table Of Contents
SNMP Monitoring and Control ................1-5 Documentation Terms and Conventions................1-6 Installation Before You Begin ........................ 2-2 Static Discharge..................... 2-2 Unpacking......................2-2 Installing the SRA-8802 ...................... 2-3 Supported Rear Modules ..................2-3 Installing a Card ....................2-3 Cabling..........................2-5 Software Upgrades....................... 2-7 Configuration Card Overview ........................ - Page 8 Service Information Troubleshooting Checklist ....................6-2 Bootload Button..................... 6-2 Warranty and Repair Policy ....................6-3 ii • Contents SRA-8802 User Manual (Iss. 04)
-
Page 9: Introduction
Ross Video customers! Should you have a question pertaining to the installation or operation of your SRA-8802, please contact us at the numbers listed on the back cover of this manual. Our technical support staff is always available for consultation, training, or service. -
Page 10: Overview

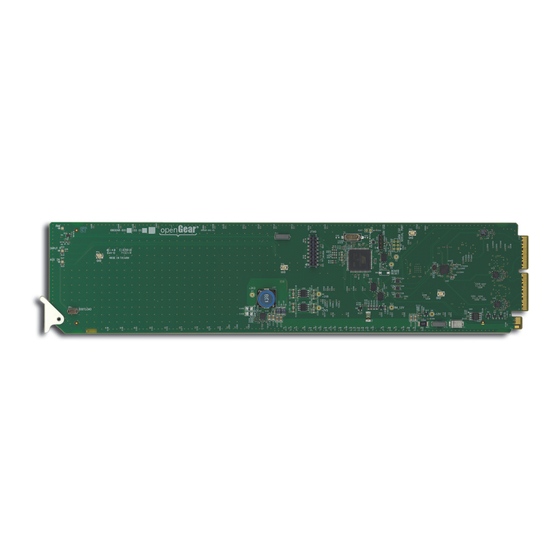

Overview Your SRA-8802 is a 3G/HD/SD Multi-Definition SDI distribution amplifier, capable of equalizing and reclocking all common serial digital signals. The outputs are non-inverting making it an excellent ASI distribution amplifier. An LED indicator at the front of the card identifies the presence of incoming video, simplifying system troubleshooting. -
Page 11: Functional Block Diagrams
Functional Block Diagrams The SRA-8802 can operate as a re-clocking single 1x8 or as a single 1x4 amplifier. The configuration depends on the rear module you are using. This section provides the block diagrams for all configurations. Single 1x8 Configuration Figure 1.1 describes the workflow of the SRA-8802 with the 8320AR-300 Full Rear... - Page 12 Single 1x4 Configuration Figure 1.3 describes the workflow of the SRA-8802 with the 8320AR-301 Split Rear module. This configuration has the SRA-8802 operating as a single re-clocking 1x4 with BNC connections. OUT 1 OUT 2 SDI IN Reclocker Equalizer OUT 3 OUT 4 Figure 1.3 Simplified Diagram —...
-
Page 13: User Interfaces
User Interfaces The following interfaces are available for control and monitoring of your SRA-8802. DashBoard Control System DashBoard enables you to monitor and control openGear frames and cards from a computer. DashBoard communicates with other cards in the openGear frame through the Network Controller card. -
Page 14: Documentation Terms And Conventions
“openGear frame” refers to the DFR-8321 series and OG3-FR series frames and all available options unless otherwise indicated. • “Operator” and “User” both refer to the person who uses the SRA-8802. • “System” and “Video system” both refer to the mix of interconnected production and terminal equipment in which the card operates. -
Page 15: Installation
Installation In This Chapter This chapter provides instructions for installing the rear module for your SRA-8802, installing the card in the frame, cabling details, and how to upgrade the software on your card(s). The following topics are discussed: • Before You Begin •... -
Page 16: Before You Begin
Unpacking Unpack each card you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. 2–2 • Installation SRA-8802 User Manual (Iss. 04) -
Page 17: Installing The Sra-8802
Installing the SRA-8802 The SRA-8802 can be installed in the DFR-8321 series frames and the OG3-FR series frames using one of the supported rear modules.The procedure for installing the rear module and card in your openGear frame is the same regardless of the rear module used. - Page 18 2. Hold the card by the edges and carefully align the card edges with the slots in the frame. 3. Fully insert the card into the frame until the rear connection plugs are properly seated on the midplane and rear modules. 2–4 • Installation SRA-8802 User Manual (Iss. 04)
-
Page 19: Cabling
Cabling The SRA-8802 can operate as a single 1x8, or as a single 1x4 depending on the rear module you are using. This section provides cabling details for each supported configuration. Single 1x8 Configurations The 8320AR-300 Full Rear Module is required when operating as a single 1x8 configuration. - Page 20 SDI IN SDI IN OUT 1 OUT 1 OUT 2 OUT 2 OUT 3 OUT 3 9 10 OUT 4 OUT 4 Figure 2.4 Cable Connections for the 8320AR-301 Split Rear Module 2–6 • Installation SRA-8802 User Manual (Iss. 04)
-
Page 21: Software Upgrades
Software Upgrades The SRA-8802 can be upgraded in the field via the Network Controller Card in your openGear frame. Note that DashBoard version 6.2.0 or higher is required. To upgrade the software on a card 1. Contact Ross Technical Support for the latest software version file. - Page 22 2–8 • Installation SRA-8802 User Manual (Iss. 04)
-
Page 23: Configuration
Configuration In This Chapter This chapter provides a general overview of the user controls available on your SRA-8802. The following topics are discussed: • Card Overview • Monitoring Features • Using DashBoard • Configuring the SRA-8802 SRA-8802 User Manual (Iss. 04) -
Page 24: Card Overview
Figure 3.1 Card-edge Controls 1. Bootload Button This button is used for factory service in the unlikely event of a complete card failure. Do not use this button unless advised by Ross Technical Support. For More Information on... • the Bootload process, refer to the section “Bootload Button” on page 6-2. -
Page 25: Monitoring Features
When lit red or flashing red, this LED indicates the card is not operational. Re-seat card in frame, check the rear module type and connections, or call Ross Video Technical Support. When off, this LED indicates there is no power to the card. - Page 26 When lit green, this LED indicates a valid SDI signal on the Green BACKUP IN BNC. AUX IN When lit red, this LED indicates that the SDI input signal is missing or invalid on the BACKUP IN BNC. 3–4 • Configuration SRA-8802 User Manual (Iss. 04)
-
Page 27: Using Dashboard
1. Ensure that you are running DashBoard software version 6.2.0 or higher. 2. Launch DashBoard by double-clicking its icon on your desktop. 3. Ensure that the openGear frame with your SRA-8802 card(s) is displayed in the Tree View located on the left-side of the DashBoard window. -
Page 28: Configuring The Sra-8802
The failover feature enables the SRA-8802 to use a backup input source when the primary input source is lost and the backup input is stable for at least 3 seconds. Once the SRA-8802 determines that the primary input source is stable for at least 3 seconds, it automatically switches back to the primary source. -
Page 29: Configuring The Equalizer
This section summarizes how to enable the reclocker and select a data rate for the reclocker. This enables the card to reclock to a specific data rate or automatically detects and reclocks the data rate. It also sets the input signal rate type that the SRA-8802 will process. To enable the reclocker 1. -
Page 30: Loss Of Input
When enabled, this feature will indicate an alarm condition (red) in the Channel Status field of the Signal tab. This occurs if the SRA-8802 does not detect a valid input signal for that channel. To verify which BNC to troubleshoot, refer to the rear module labeling or the Input BNC status field in the Setup tab. -
Page 31: Dashboard Menus
Status Tabs • Setup Tab • Alarms Tab Operating Tip — Wait 30 seconds after the last setting change to ensure all changes are saved to the non-volatile memory of the card. SRA-8802 User Manual (Iss. 04) DashBoard Menus • 4–1... -
Page 32: Status Tabs
Input signal is present and the reclocker is Reclocker bypassed bypassed (the Enable Reclocker check box is not selected in the Setup tab) Input signal is not present. The output is No signal (muted) automatically muted. 4–2 • DashBoard Menus SRA-8802 User Manual (Iss. 04) - Page 33 (the Enable Equalizer bypassed Equalizer check box is not selected in the Setup tab) This information is only available when the SRA-8802 is installed with a 8320AR-300, or 8320AR-306 full rear module. SRA-8802 User Manual (Iss. 04) DashBoard Menus • 4–3...
-
Page 34: Hardware Tab
Indicates the card serial number Product Indicates the installed rear module Rear Module Indicates that the installed rear module is Unknown not recognized by the card Software Rev ##.## Indicates the software version 4–4 • DashBoard Menus SRA-8802 User Manual (Iss. 04) -
Page 35: Setup Tab
Resets all editable parameters to the Factory Defaults Reset factory default values This information is only available when the SRA-8802 is installed with a 8320AR-300, or 8320AR-306 full rear mod- ule. SRA-8802 User Manual (Iss. 04) DashBoard Menus • 4–5... -
Page 36: Alarms Tab
Alarm on Loss of Input Channel A The Status field in the Signal tab reports Cleared the loss of the input as information only (status indicator does not update) 4–6 • DashBoard Menus SRA-8802 User Manual (Iss. 04) -
Page 37: Specifications
Specifications In This Chapter This chapter includes the technical specifications for the SRA-8802. Note that specifications are subject to change without notice. The following topics are discussed: • Technical Specifications SRA-8802 User Manual (Iss. 04) Specifications • 5–1... -
Page 38: Technical Specifications
Technical Specifications This section lists the technical specifications for the SRA-8802. Table 5.1 Technical Specifications Category Parameter Specification Supported Rear Modules 8320AR-300, 8320AR-301, 8320AR-306 Rear Modules 8320AR-300 1 primary, 1 backup Number of 8320AR-301 Inputs 8320AR-306 1 primary, 1 backup 19.39Mbps, 38.78Mbps, SMPTE 310... - Page 39 Specification 700ps typical (270Mbps) Rise & Fall Time (20-80%) 120ps typical (1.485Gbps) 135ps typical (2.97Gbps) SDI Outputs Overshoot <10% Connector Type Maximum Ambient 40°C (104°F) Environment Temperature Total Power Consumption 2.8W Power SRA-8802 User Manual (Iss. 04) Specifications • 5–3...
- Page 40 5–4 • Specifications SRA-8802 User Manual (Iss. 04)
- Page 41 Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy SRA-8802 User Manual (Iss. 04) Service Information • 6–1...
- Page 42 Bootload Button In the unlikely event of a complete card failure, you may be instructed by a Ross Technical Support specialist to perform a complete software reload on the card.
- Page 43 FIVE (5) years from the date of shipment from our factory. In the event that your SRA-8802 proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics.
- Page 44 Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
