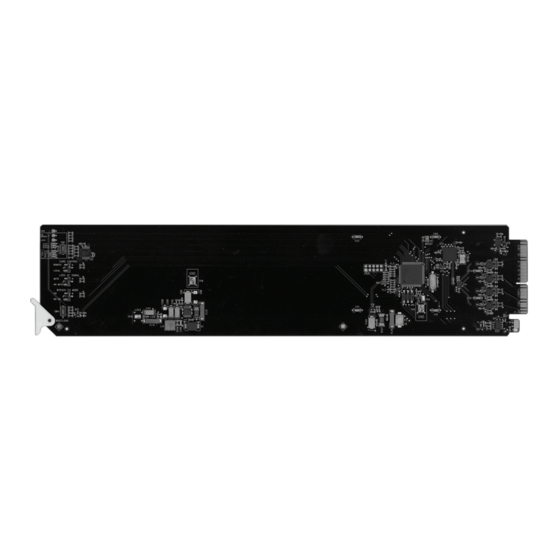

- Page 1 Ross Video Limited SRA-8201A, SRA-8601A MD-SDI Reclocking Amplifiers User Manual...
- Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
- Page 3 Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Products may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements.
- Page 4 Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003.
- Page 5 The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
- Page 6 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario Ogdensburg, New York Canada, K0E 1K0 USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
-
Page 7: Table Of Contents
Contents Introduction Overview..........................1-2 Features........................1-2 Functional Block Diagram....................1-3 Documentation Terms......................1-4 Installation Before You Begin ........................ 2-2 Static Discharge..................... 2-2 Unpacking......................2-2 Installing the SRA-8201A and SRA-8601A................ 2-3 Rear Modules for the SRA-8201A ................ 2-3 Rear Modules for the SRA-8601A ................ 2-3 Installing a Rear Module .................. - Page 8 ii • Contents SRA-8201A, SRA-8601A User Manual (Iss. 03)
-
Page 9: Introduction
Congratulations on choosing an openGear SRA-8201A and SRA-8601A MD-SDI Reclocking Amplifiers. Your SRA-8201A and SRA-8601A is part of a full line of Digital Products within the openGear Terminal Equipment family of products, backed by Ross Video's experience in engineering and design expertise since 1974. -
Page 10: Overview
Overview The SRA-8201A and SRA-8601A are Multi-Definition SDI distribution amplifiers, capable of equalizing and reclocking all common serial digital signals. With support for both standard-definition and high-definition signals, the SRA-8201A and SRA-8601A are the ideal universal SDI distribution amplifiers. The SRA-8201A equalizes the incoming SDI signal, compensating for greater than 300m of cable at 270Mbps and greater than 120m of cable at 1.485Gbps. -
Page 11: Functional Block Diagram
Functional Block Diagram This section provides a functional block diagram that outlines the workflow of the SRA-8201A and SRA-8601A. SDI OUT * BNC 3 BNC 4 BNC 5 SDI IN BNC 6 BNC 1 Equalizer Reclocker BNC 7 BNC 8 BNC 9 BNC 10 *On Split Rear Modules,... -
Page 12: Documentation Terms
Documentation Terms The following terms are used throughout this manual: • “Frame” refers to the DFR-8300 series frame that houses the card, as well as any openGear frames. • All references to the DFR-8300 series frame also includes all versions of the 10-slot (DFR-8310) and 20-slot (DFR-8321) frames and any available options. -
Page 13: Installation
Installation In This Chapter This chapter provides instructions for installing the rear modules for the SRA-8201A and SRA-8601A, installing the card(s) in the frame, and cabling details. The following topics are discussed: • Before You Begin • Installing the SRA-8201A and SRA-8601A •... -
Page 14: Before You Begin
Unpack each SRA-8201A and SRA-8601A you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. 2–2 • Installation SRA-8201A, SRA-8601A User Manual (Iss. 03) -
Page 15: Installing The Sra-8201A And Sra-8601A
Installing the SRA-8201A and SRA-8601A The SRA-8201A and SRA-8601A are compatible with the DFR-8310 and DFR-8321 series frames. The procedure for installing the Rear Module in your openGear frame is the same regardless of the frame, module, or card used. Rear Modules for the SRA-8201A The Rear Module for the SRA-8201A depends on the openGear frame you are installing the card into. -
Page 16: Board Installation
Figure 2.1 Rear Module Installation in a DFR-8310 Series Frame (Cards not shown) 5. Align the top hole of the rear module with the screw hole on the top edge of the frame back plane. 6. Using a Phillips screwdriver and the supplied screw, fasten the rear module to the back plane. -
Page 17: Cabling For The Sra-8201A And Sra-8601A
Cabling for the SRA-8201A and SRA-8601A This section provides instructions for connecting cables to the installed rear modules on your DFR-8300 series frame backplane. The inputs are internally terminated in 75ohms. It is not necessary to terminate unused outputs. SRA-8201A Cabling Overview The SRA-8201A is used with the following rear modules: •... - Page 18 2–6 • Installation SRA-8201A, SRA-8601A User Manual (Iss. 03)
-
Page 19: User Controls
User Controls In This Chapter This chapter provides a general overview of the user controls available on the SRA-8201A and SRA-8601A. The following topics are discussed: • Card Overview • Control and Monitoring Features • Reclocker Rate Selection SRA-8201A, SRA-8601A User Manual (Iss. 03) User Controls •... -
Page 20: Card Overview
Card Overview This section describes the jumpers on the SRA-8201A and SRA-8601A. Refer to Figure 3.1 for jumper locations. Note that the locations are the same regardless of the card. Figure 3.1 Card-edge Controls (SRA-8601A shown) 1) SW1 – Reclocker Rate Select Button 3) JP2 –... - Page 21 Select one of the following options: • MUTE — The card outputs are muted when the input equalizer is unable to detect a valid input signal, or when the reclocker is unable to lock to the input. • NO MUTE — The card outputs are not muted on loss of input or lock. This is the default setting.
-
Page 22: Control And Monitoring Features
Control and Monitoring Features The following sections describe the card-edge LEDs. Refer to Figure 3.2 for LED locations. POWER LED OK/ERROR LED LOCK LED AUTO, MANUAL, BYPASS LEDs Reclocker Rate Selection Button (SW1) OTHER Rate LED SD 270M Rate LED HD 1G5 Rate LED HD 3G Rate LED* Bootload Button (SW4) - Page 23 When lit red or flashing red, this LED indicates the card is not operational. Re-seat card in frame, check the rear module type and connections, or call Ross Video Technical Support. When off, this LED indicates there is no power to the card.
-
Page 24: Reclocker Rate Selection
Reclocker Rate Selection This section describes the Reclocker Rate Selection button and LEDs. Refer to Figure 3.2 for button and LED locations. Reclocker Rate Selection LEDs Table 3.2 provides information on the Reclocker Rate Selection (SW1) button and LED functions. Table 3.2 Rate Selection and LED Functions Date Rate LED Displays Description... -
Page 25: Menus
Menus In This Chapter This section provides a summary of the menus available for the SRA-8201A and/or SRA-8601A. The following topics are discussed: • SNMP Monitoring and Control • DashBoard Control System SRA-8201A, SRA-8601A User Manual (Iss. 03) Menus • 4–1... -
Page 26: Snmp Monitoring And Control
SNMP Monitoring and Control The Network Controller card in the DFR-8300 series frame provides optional support for remote monitoring and control of your frame and openGear cards using Simple Network Management Protocol (SNMP), which is compatible with many third-party monitoring and control tools. Refer to your SRA-8201A and/or SRA-8601A Management Information Base (MIB) file for a breakdown of SNMP controls on your card. -
Page 27: Dashboard Control System
The following table summarizes the Status Menu options available in DashBoard. Table 4.1 Status Tab Items Tab Title Item Parameters Description SRA-8201A and/or Product SRA-8601A Supplier Ross Video Ltd. Product Board Rev (Read-only) Serial Number ###### Indicates the card serial number Software Rev ##.## Indicates the software version... -
Page 28: Setup Menus
Table 4.1 Status Tab Items Tab Title Item Parameters Description Input is present and the reclocker is Unlocked unlocked. Output may be invalid. Signal (Read-only Input is present, the reclocker is Unlocked - muted unlocked. Output is muted. Only available for the SRA-8601A. Setup Menus The following table summarizes the Setup Menu options available in DashBoard. -
Page 29: Specifications
Specifications In This Chapter This chapter includes the Technical Specifications for the SRA-8201A and SRA-8601A. Note that specifications are subject to change without notice. The following topics are discussed: • SRA-8201A Technical Specifications • SRA-8601A Technical Specifications SRA-8201A, SRA-8601A User Manual (Iss. 03) Specifications •... -
Page 30: Sra-8201A Technical Specifications
SRA-8201A Technical Specifications This section lists the technical specifications for the SRA-8201A. Table 5.1 SRA-8201A Technical Specifications Category Parameter Specification Number of Inputs 143Mbps, NTSC AFSC, SMPTE 259M-A 270Mbps, 525/625 Component, SMPTE 259M-C Data Rates and SMPTE 360Mbsp, 525/625 Component (wide screen), SMPTE 259M-D Standards Accommodated 520Mbps, 525/625 Component (EDTV), SMPTE 344M SDI Input... -
Page 31: Sra-8601A Technical Specifications
SRA-8601A Technical Specifications This section lists the technical specifications for the SRA-8601A. Table 5.2 SRA-8601A Technical Specifications Category Parameter Specification Number of Inputs 143Mbps, NTSC AFSC, SMPTE 259M-A 270Mbps, 525/625 Component, SMPTE 259M-C 360Mbsp, 525/625 Component (wide screen), SMPTE 259M-D Data Rates and SMPTE Standards Accommodated 520Mbps, 525/625 Component (EDTV), SMPTE 344M... - Page 32 5–4 • Specifications SRA-8201A, SRA-8601A User Manual (Iss. 03)
-
Page 33: Service Information
Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy SRA-8201A, SRA-8601A User Manual (Iss. 03) Service Information • 6–1... -
Page 34: Troubleshooting Checklist
Bootload Button In the unlikely event of a complete card failure, you may be instructed by a Ross Technical Support specialist to perform a complete software reload on the SRA-8201A and/or SRA-8601A. -
Page 35: Warranty And Repair Policy
In the event that your SRA-8201A and/or SRA-8601A proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 36 P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669-0880 Visit Us Please visit us at our website for: • Company information • Related products and full product lines • On-line catalog • News • Testimonials Ross Part Number: 8201ADR-004-03...
