Summary of Contents for Ross SEA-8008
-
Page 1: User Manual

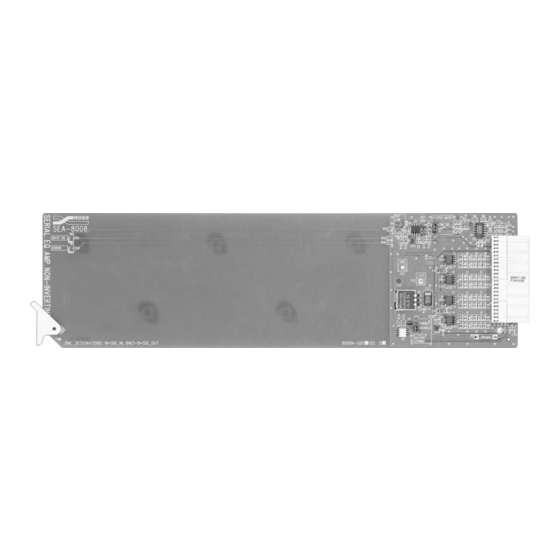

Ross Video Limited SEA-8008 Serial Equalizing Amplifier User Manual Ross Part Number: 8008DR-004 Issue: 05A... - Page 2 The information contained in this User Manual is subject to change without notice or obligation. Copyright © 2005 Ross Video Limited. All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Ross Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited. Notice The material in this manual is furnished for informational use only.
-
Page 3: Important Safety Instructions
Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below so as to avoid personnel injury and to prevent product damage. Products may require specific equipment, and /or installation procedures be carried out to satisfy certain regulatory compliance requirements. - Page 4 Operation of this equipment in a residential area is likely to cause harmful interference in which case users will be required to correct the interference at their own expense. Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the user’s authority to operate this equipment.
- Page 5 The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
-
Page 7: Table Of Contents
Specifications In This Chapter ........................4-1 Technical Specifications...................4-1 Service Information In This Chapter ........................5-1 Troubleshooting Checklist ..................5-1 Warranty and Repair Policy ..................5-2 Ordering Information In This Chapter ........................6-1 SEA-8008 and Related Products ................6-1 Contents • i SEA-8008 User Manual (Iss. 05A) - Page 8 • Contents SEA-8008 User Manual (Iss. 05A)
-
Page 9: Introduction
Ross Video’s experience in engineering and design expertise since 1974. You will be pleased at how easily your new SEA-8008 fits into your overall working environment. Equally pleasing is the product quality, reliability and functionality. Thank you for joining the group... -
Page 10: Overview
SMPTE 259M signals. The SEA-8008 is designed to operate within the RossGear 8000-series digital products frame. Ten amplifiers can be installed in a Ross 2-rack unit frame, and four amplifiers in a Ross 1-rack unit frame. This amplifier also fits Leitch 6800-series frames. -
Page 11: Features
Features The following features make the SEA-8008 the best solution for general SDI equalizing and distribution: • Accommodates SMPTE 259M and DVB/ASI signals from 143 Mb/s to 360Mb/s • Automatic cable equalization to 305m (1000 ft.) • Input signal present indicator •... - Page 12 1-4 • Introduction SEA-8008 User Manual (Iss. 05A)
-
Page 13: Installation And Setup
Unpacking Unpack each SEA-8008 you received from the shipping container, and check the contents against the packing list to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. -
Page 14: Board Installation
Board Installation Use the following steps to install the SEA-8008 in a RossGear 8000 series digital distribution frame: 1. Refer to the User Manual of the RossGear 8000 series frame, to ensure that the frame is properly installed according to instructions. If this module is to be installed in any compatible frame other than a Ross Video product, refer to the frame manufacturer’s manual for specific instructions. -
Page 15: Leds
When lit, the input signal is too low or absent. In some circumstances, the signal may still be restored correctly but the ERROR circuits will be working close to the limit of their capability, and reliability cannot be assured. Installation and Setup • 2-3 SEA-8008 User Manual (Iss. 05A) - Page 16 2-4 • Installation and Setup SEA-8008 User Manual (Iss. 05A)
-
Page 17: Smpte 269M Fault Reporting
The SMPTE 269M Fault Reporting system, also known as a SMPTE “alarm”, provides indication if one or more frame modules encounter a fault or an abnormal condition. The SEA-8008 module provides a jumper to enable SMPTE-269M fault reporting. The card connects by means of an internal interface circuit to an auxiliary telco connector on RossGear 8000 series frames. -
Page 18: Jumper Setup
Jumper Setup If fault reporting for the SEA-8008 is desired, use jumper JP2 - FAULT REPORT (269M) to set up the card. 1. To access the jumper, remove the card from the frame by pressing down the white card ejector tab and pulling the card from the frame slot. -
Page 19: Specifications
>8% Delay (SDI Input to SDI Output) >6ns Power Total Power Consumption <1.7W We recommend 200m or less of input cable due to jitter considerations Specifications are subject to change without notification. Specifications • 4-1 SEA-8008 User Manual (Iss. 05A) - Page 20 4-2 • Specifications SEA-8008 User Manual (Iss. 05A)
-
Page 21: Service Information
Routine maintenance to this RossGear product is not required. In the event of problems with your SEA-8008, the following basic troubleshooting checklist may help identify the source of the problem. If the module still does not appear to be working properly after checking all possible causes, please contact your Ross Video products distributor, or the Ross Video Technical Support department at the numbers listed under the “Contact Us”... -
Page 22: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your RossGear SEA-8008 proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. -
Page 23: Ordering Information
Power Supply (PS-8102) (2RU, holds 10 modules, includes 1 power supply) Your SEA-8008 Serial Equalizing Amplifier is a part of the RossGear family of products. Ross Video offers a full line of RossGEAR terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, keyers, switches, as well as analog audio and video products. -
Page 24: General Information
613 • 652 • 4886 ext. 333 After-hours Emergency 613 • 652 • 4425 General Information solutions@rossvideo.com E-MAIL Technical Support techsupport@rossvideo.com 8 John Street, Ross Video Limited Iroquois, Ontario, Canada POSTAL K0E 1K0 SERVICE P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669-0880...
