Summary of Contents for Ross GearLite SEA-9003

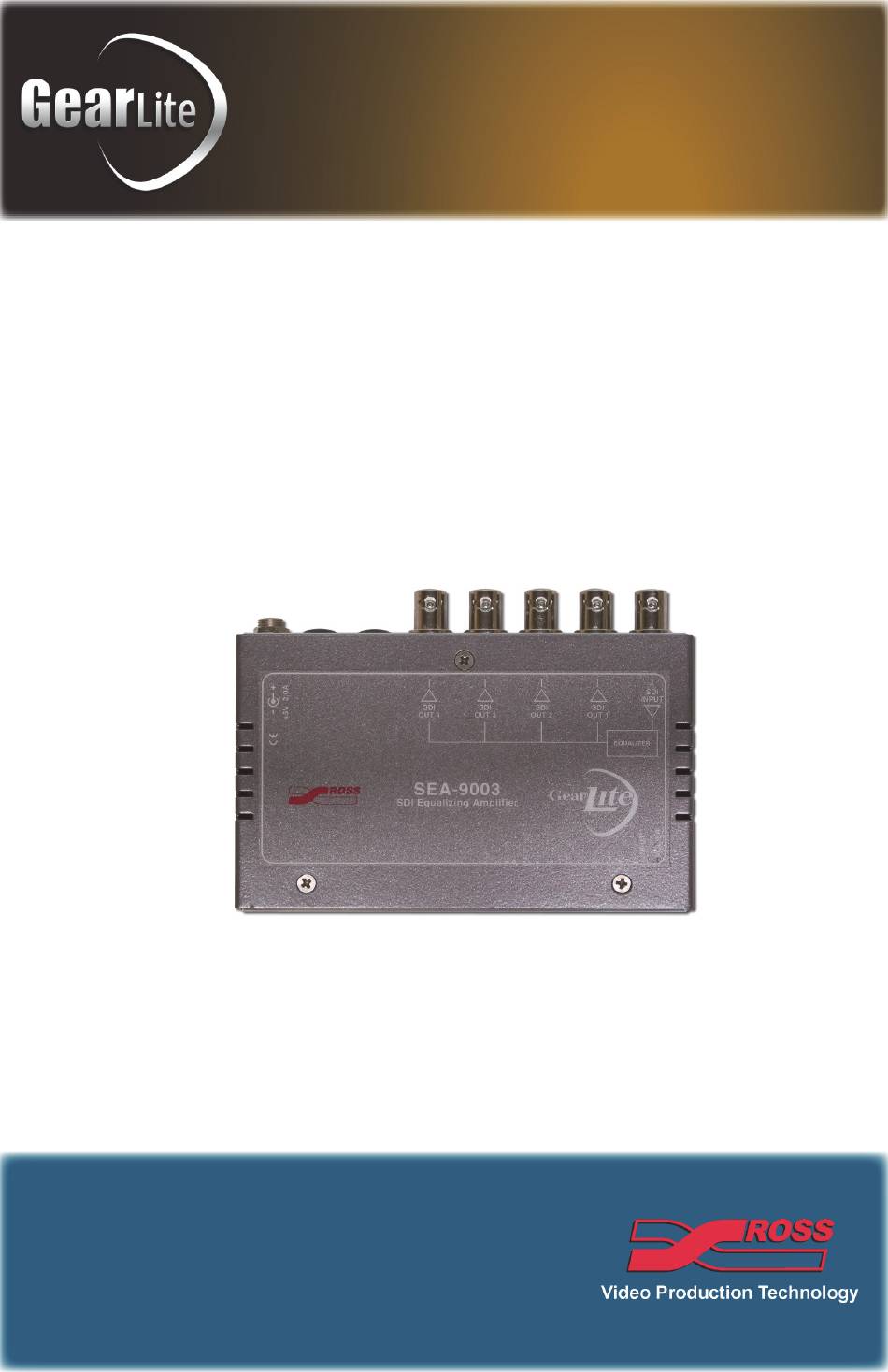

- Page 1 SEA-9003 SDI Equalizing Amplifier User Manual...
- Page 2 Notice The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
-
Page 3: Symbol Meanings
Important Regulatory and Safety Notices to Service Personnel Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. -
Page 4: Important Safety Instructions
Important Safety Instructions Warning – Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. The safe operation of this product requires that a protective earth connection be provided. A grounding conductor in the equipment's supply cord provides this protective earth. To reduce the risk of electrical shock to the operator and service personnel, this ground conductor must be connected to an earthed ground. -
Page 5: Emc Notices
Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003. -
Page 6: Environmental Information
To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner. -
Page 7: Simplified Block Diagram
Introduction Overview The SEA-9003 SDI Equalizing Amplifier is part of the GearLite 9000 digital series of self-contained, small brick-format modules. The SEA-9003 is designed for use in systems where signals of more than one digital standard are distributed. The amplifier automatically equalizes up to 305m (1000ft) of Belden 8281 input cable at 270Mbps, although 200m is the recommended limit due to jitter considerations. -
Page 8: Static Discharge
Unpack each SEA-9003 you received from the shipping container and check the contents to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. Mounting and Installation The SEA-9003 can be mounted in any convenient location. However, to ensure... -
Page 9: Optional Mounting Accessories
Optional Mounting Accessories Ross Video is committed to providing practical solutions for the needs of your high-quality broadcast facility. Installation (Iss. 02) • 8... - Page 10 Step 1. Figure 3 Flat Metal Plate Installation Option Install the chassis in the desired location using the Mounting Holes on the Flat Metal Plate. Mounting screws are not provided by Ross Video. Angle Mounting Bracket The Angle Mounting Bracket (Figure 4) allows a single GearLite module to be installed in positions not possible with the flat metal plate.
- Page 11 Figure 4 Angle Mounting Bracket Installation (Iss. 02) • 10...
-
Page 12: Status Leds
Setup Power Adapter and Supply Connect the PS-9000 power adaptor to the power supply connector. The PS-9000 provides up to 2A of regulated +5V DC (5%). The DC power cord has a locking connector that securely fastens into the power supply DC jack on the SEA-9003. - Page 13 location of the LEDs. Table 1 describes the status LEDs available on the SEA-9003. Note that the SEA-9003 is operating correctly when both LEDs are lit. INPUT LED POWER LED Figure 6 SEA-9003 — LEDs Table 1 Status LED Descriptions Color Function When lit, this LED indicates the presence of an input...
-
Page 14: Specifications
Specifications Specifications are subject to change without notification. Table 2 SEA-9003 — Technical Specifications Category Parameter Specification Number of Inputs Signal Standards SMPTE 259M Accommodated 143 Mbps, NTSC Composite 177Mbps, PAL Composite Data Rates SMPTE 259M Serial Digital 270Mbps, 525/625 Component Video Input 360Mbps, 525/625 Component (wide-screen) -
Page 15: Service Information
Service Information Warranty and Repair Policy The GearLite SEA-9003 is warranted to be free of any defect with respect to performance, quality, reliability, and workmanship for a period of THREE (3) years from the date of delivery to the customer. In the event that your GearLite... -
Page 16: Technical Support
Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
