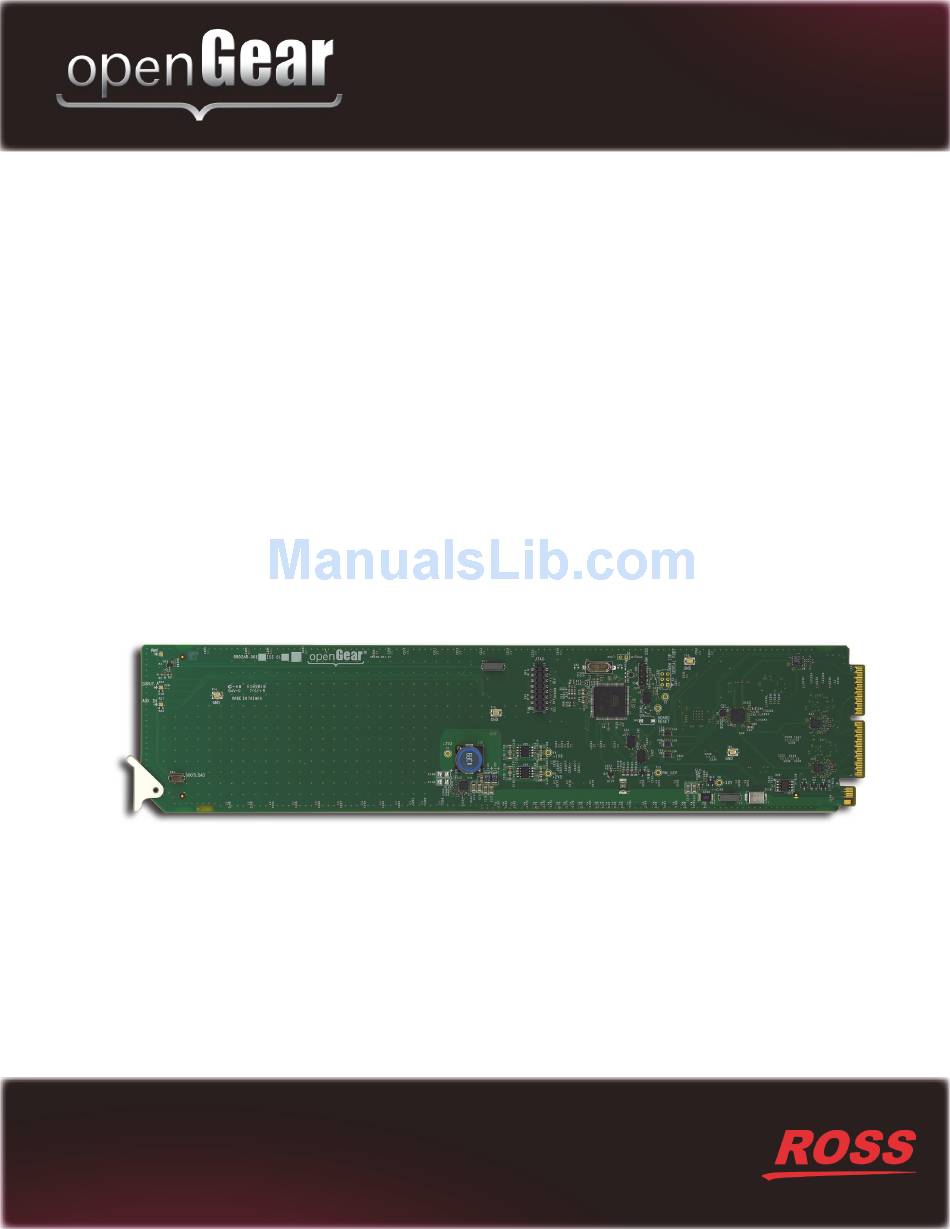

- Page 1 SEA-8803 Single 3G/HD/SD Equalizing Distribution Amplifier User Manual...
- Page 2 Ross has become well known for the Ross Video Code of Ethics. It guides our interactions and empowers our employees. I hope you enjoy reading it below. If anything at all with your Ross experience does not live up to your expectations be sure to reach out to us at solutions@rossvideo.com.
- Page 3 © 2015 Ross Video Limited. Ross®, openGear®, and any related marks are trademarks or registered trademarks of Ross Video Ltd. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this publication...
-
Page 4: Important Safety Instructions
Important Regulatory and Safety Notices to Service Personnel Before using this product and nay associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. - Page 5 Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A”...
- Page 6 The crossed out wheelie bin symbol invites you to use these systems. If you need more information on the collection, re-use, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performance of our products.
- Page 7 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario, K0E 1K0 Ogdensburg, New York Canada USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
-
Page 9: Table Of Contents
Contents Introduction Overview..........................1-2 Features........................1-2 Functional Block Diagrams ....................1-3 Single 1x8 Configuration ..................1-3 Single 1x8 Configuration with Bypass Relay ............1-3 User Interfaces ........................1-5 DashBoard Control System ................... 1-5 Card-edge Monitoring ................... 1-5 SNMP Monitoring and Control ................1-5 Documentation Terms and Conventions................ - Page 10 Service Information Troubleshooting Checklist ....................6-2 Bootload Button..................... 6-2 Warranty and Repair Policy ....................6-3 ii • Contents SEA-8803 User Manual (Iss. 02)
-
Page 11: Introduction
SEA-8803 is part of a full line of products within the openGear Terminal Equipment family of products, backed by Ross Video’s experience in engineering and design expertise since 1974. You will be pleased at how easily your new card fits into your overall working environment. -
Page 12: Overview
Overview Your SEA-8803 is a 3G/HD/SD Multi-Definition SDI distribution amplifier, capable of equalizing all common serial digital signals. An LED indicator at the front of the card identifies the presence of incoming video, simplifying system troubleshooting. Features The SEA-8803 includes the following features: •... -
Page 13: Functional Block Diagrams
Functional Block Diagrams The SEA-8803 can operate as an equalizing single 1x8 or as a single 1x4. The configuration depends on the rear module you are using. This section provides the block diagrams for both configurations. Single 1x8 Configuration Figure 1.1 describes the workflow of the SEA-8803 with the 8320AR-300 Full Rear module. This configuration has the SEA-8803 operating as a single equalizing 1x8 with BNC connections. - Page 14 Single 1x4 Configuration Figure 1.3 describes the workflow of the SEA-8803 with the 8320AR-301 Split Rear module. This configuration has the SEA-8803 operating as a single equalizing 1x4 with BNC connections. OUT 1 OUT 2 SDI IN Equalizer OUT 3 OUT 4 Figure 1.3 Simplified Diagram —...
-
Page 15: User Interfaces
User Interfaces The following interfaces are available for control and monitoring of your SEA-8803. DashBoard Control System DashBoard enables you to monitor and control openGear frames and cards from a computer. DashBoard communicates with other cards in the openGear frame through the Network Controller Card. -
Page 16: Documentation Terms And Conventions
Documentation Terms and Conventions The following terms and conventions are used throughout this manual. Terms The following terms are used: • “Board” and “Card” both refer to the card, including all components and switches. • “DashBoard” refers to the DashBoard Control System. •... -
Page 17: Installation
Installation In This Chapter This chapter provides instructions for installing the rear module for your SEA-8803, installing the card in the frame, cabling details, and how to upgrade the software on your card(s). The following topics are discussed: • Before You Begin •... -
Page 18: Before You Begin
Unpacking Unpack each card you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. 2–2 • Installation SEA-8803 User Manual (Iss. 02) -
Page 19: Installing The Sea-8803
Installing the SEA-8803 The SEA-8803 can be installed in the DFR-8321 series frames and the OG3-FR series frames using one of the supported rear modules.The procedure for installing the rear module and card in your openGear frame is the same regardless of the rear module used. Supported Rear Modules Notice —... - Page 20 6. Using a Phillips screwdriver and the supplied screw, fasten the rear module to the back plane. Do not over-tighten. 7. Verify whether your Rear Module Label is self-adhesive by checking the back of the label for a thin wax sheet. You must remove the wax sheet before affixing the label. 8.
-
Page 21: Cabling
Cabling The SEA-8803 can operate as a single 1x8, or as a single 1x4 depending on the rear module you are using. This section provides cabling details for supported configurations. Important — It is necessary to terminate unused outputs. Single 1x8 Configuration The 8320AR-300 Full Rear Module is used when operating as a single 1x8 configuration. - Page 22 Single 1x4 Configuration The 8320AR-301 Split Rear Module is required when operating as a single 1x4 configuration. Each rear module occupies two slots, and accommodates two cards. This rear module provides one SDI input, and four SDI outputs via BNC connections per card. (Figure 2.4) Card 1 Card 2 SDI IN...
-
Page 23: Software Upgrades
Note that DashBoard version 6.2.0 or higher is required. To upgrade the software on a card 1. Contact Ross Technical Support for the latest software version file. 2. Display the Device View of the card by double-clicking its status indicator in the Basic Tree View. - Page 24 2–8 • Installation SEA-8803 User Manual (Iss. 02)
-
Page 25: Configuration
Configuration In This Chapter This chapter provides a general overview of the user controls available on your SEA-8803. The following topics are discussed: • Card Overview • Monitoring Features • Using DashBoard • Configuring the SEA-8803 SEA-8803 User Manual (Iss. 02) Configuration •... -
Page 26: Card Overview
Figure 3.1 Card-edge Controls 1. Bootload Button This button is used for factory service in the unlikely event of a complete card failure. Do not use this button unless advised by Ross Technical Support. For More Information on... • the Bootload process, refer to the section “Bootload Button” on page 6-2. -
Page 27: Monitoring Features
When lit red or flashing red, this LED indicates the card is not operational. Re-seat card in frame, check the rear module type and connections, or call Ross Video Technical Support. When off, this LED indicates there is no power to the card. -
Page 28: Using Dashboard
Using DashBoard Before proceeding, ensure that the DashBoard client is installed on a PC connected to your facility network. The DashBoard software and user manual are available from the Ross Video website. For More Information on... • installing DashBoard, refer to the DashBoard User Manual. -
Page 29: Configuring The Sea-8803
Configuring the SEA-8803 This section briefly outlines how to configure the SEA-8803 using the options available in DashBoard. Configuring the Equalizer You can choose to enable or bypass the equalizer on the card. The equalizer enables the card to compensate for noise and signal losses inherent in long coaxial cable runs. Refer to the chapter “Specifications”... -
Page 30: Loss Of Input
Loss of Input When enabled, this feature will indicate an alarm condition (red) in the Channel Status field of the Signal tab. This occurs if the SEA-8803 does not detect a valid input signal for that channel. To verify which BNC to troubleshoot, refer to the rear module labeling or the Input BNC field in the Setup tab. -
Page 31: Dashboard Menus
DashBoard Menus In This Chapter This chapter briefly summarizes the menus, items, and parameters available from DashBoard for your card. Default parameters are noted with an asterisk (*). The following topics are discussed: • Status Tabs • Setup Tab • Alarms Tab Operating Tip —... -
Page 32: Status Tabs
Status Tabs This section summarizes the read-only information displayed in the Status tabs. The fields in the Signal tab vary in severity from green (valid), yellow (caution), to red (alarm). DashBoard reports the most severe alarm for a single field. Alarm colors are noted within the tables as text set in brackets next to the menu parameter name. -
Page 33: Hardware Tab
Tab Title Item Parameters Description Product SEA-8803 Displays the card model Supplier Ross Video Ltd. Indicates the manufacturer of your card Board Rev Indicates the version of the PCB Board S/N ###### Indicates the card serial number Product Indicates the installed rear module... -
Page 34: Setup Tab
Setup Tab Table 4.4 summarizes the Setup options available in DashBoard. Table 4.4 Setup Menu Items Menu Title Item Parameters Description Indicates the BNC on the rear module that # (read-only) is assigned as the input source Input BNC Indicates that no BNCs are currently used as inputs for the channel Indicates the BNCs on the rear module # (read-only) -
Page 35: Alarms Tab
Alarms Tab Table 4.5 summarizes the Alarms options available in DashBoard. Table 4.5 Alarm Enables Menu Items Menu Title Item Parameters Description The Status field in the Signal tab reports Selected* the loss of the input as an error/alarm Alarm on Loss of Input Channel A The Status field in the Signal tab reports Cleared... - Page 36 4–6 • DashBoard Menus SEA-8803 User Manual (Iss. 02)
-
Page 37: Specifications
Specifications In This Chapter This chapter includes the technical specifications for the SEA-8803. Note that specifications are subject to change without notice. The following topics are discussed: • Technical Specifications SEA-8803 User Manual (Iss. 02) Specifications • 5–1... -
Page 38: Technical Specifications
Technical Specifications This section lists the technical specifications for the SEA-8803. Table 5.1 Technical Specifications Category Parameter Specification Supported Rear Modules 8320AR-300, 8320AR-301, 8320AR-306 Rear Modules Number of Inputs 19.39Mbps, 38.78Mbps, SMPTE 310 270Mbps, 525/625 Component, SMPTE 259M Data Rates and SMPTE 270Mbps, DVB-ASI Standards Accommodated 1.485Gbps Component, SMPTE 292M... -
Page 39: Service Information
Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy SEA-8803 User Manual (Iss. 02) Service Information • 6–1... -
Page 40: Troubleshooting Checklist
Bootload Button In the unlikely event of a complete card failure, you may be instructed by a Ross Technical Support specialist to perform a complete software reload on the card. -
Page 41: Warranty And Repair Policy
In the event that your SEA-8803 proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 42 Notes:...
- Page 43 Notes:...
