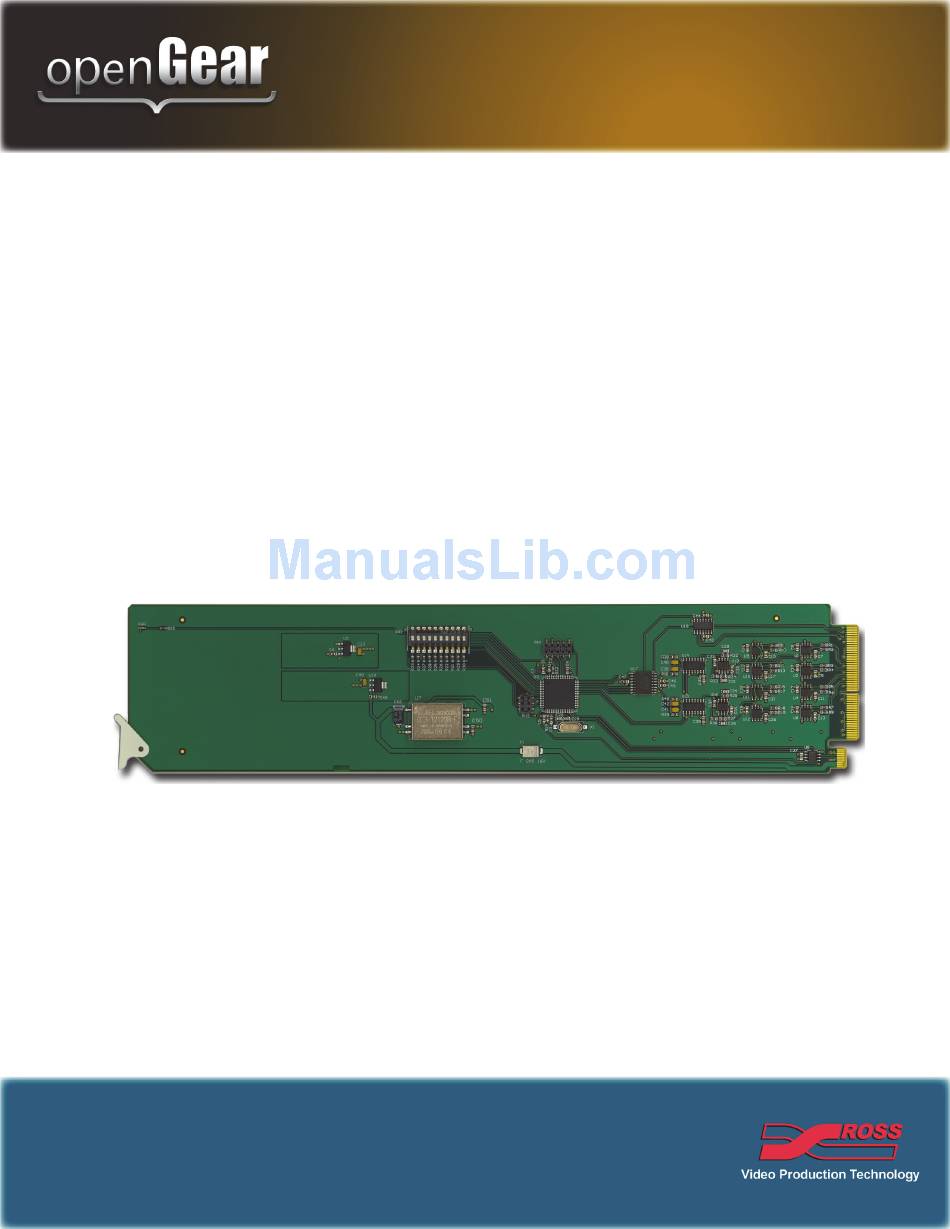

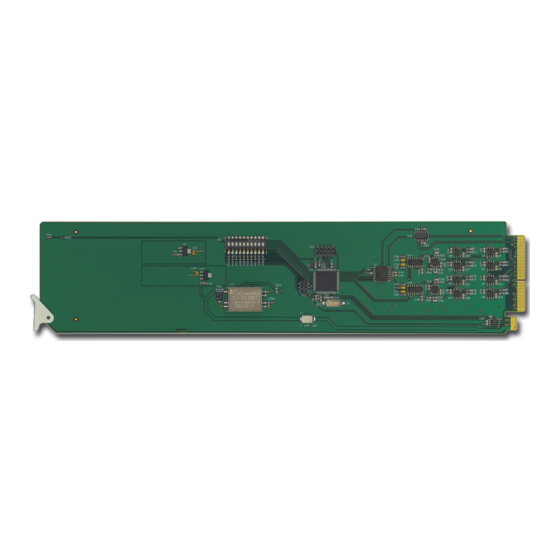

  • Page 1 ADA-8405-C Analog Audio and Timecode Distribution Amplifier User Manual...
  • Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
  • Page 3: Important Safety Instructions

    Important Regulatory and Safety Notices to Service Personnel Before using this product and nay associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements.
  • Page 4 Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A”...
  • Page 5 The crossed out wheelie bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performance of our products.
  • Page 6 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario, K0E 1K0 Ogdensburg, New York Canada USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
  • Page 7: Table Of Contents

    User Controls Card Overview ........................3-2 Configuring the DIP Switches ..................... 3-3 Control and Monitoring Features..................3-5 Status and Selection LEDs on the ADA-8405-C ..........3-5 DashBoard Menus Status Tabs ........................... 4-2 Product Tab ......................4-2 Settings Tab ......................... 4-3 Specifications Technical Specifications ......................
  • Page 8 • Contents ADA-8405-C User Manual (Iss. 02)
  • Page 9: Introduction

    A Word of Thanks Congratulations on choosing an openGear ADA-8405-C Analog Audio and Timecode Distribution Amplifier with Remote Gain. The ADA-8405-C is part of a full line of products within the openGear Terminal Equipment family of products, backed by Ross Video's experience in engineering and design expertise since 1974.
  • Page 10: Overview

    Overview The ADA-8405-C is a remote gain analog audio distribution amplifier designed for broadcast use. It can be used as either a mono 1x8, or two channel (stereo) 1x4 audio DA. When used with a Full Rear Module, it provides eight copies of the single (mono) input signal or four copies each of the two (stereo) inputs.
  • Page 11: Functional Block Diagrams

    This section provides the functional block diagrams that outline the workflow of the ADA-8405-C. Figure 1.1 illustrates the ADA-8405-C when the Operating Mode is set to Stereo DA (2x4) and using the 8310AR-042 or 8320AR-042 rear modules. ANLG Out 1-1...
  • Page 12: User Interfaces

    The ADA-8405-C provides card-edge controls for adjusting the output levels, selecting the operation mode, and configuring remote control options. The front-edge of the ADA-8405-C also includes LEDs that display the status of the input signals. As selections are made in the menus, the LEDs display the status of the input signals.
  • Page 13: Documentation Terms And Conventions

    “openGear frame” refers to DFR-8300 series frame and the OG3-FR series frame that houses the ADA-8405-C card. • “Operator” and “User” refer to the person who uses ADA-8405-C. • “System” and “Video system” refer to the mix of interconnected production and terminal equipment in your environment.
  • Page 14 1–6 • Introduction ADA-8405-C User Manual (Iss. 02)
  • Page 15: Installation

    Installation In This Chapter This chapter provides instructions for installing the Rear Module(s) for the ADA-8405-C, installing the card into the frame, cabling details, and updating the card software. The following topics are discussed: • Before You Begin • Installing the ADA-8405-C •...
  • Page 16: Before You Begin

    Unpacking Unpack each ADA-8405-C you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly.
  • Page 17: Installing The Ada-8405-C

    However, the specific Rear Module you need to install depends on the frame you are using. Rear Modules for the ADA-8405-C The Rear Module for the ADA-8405-C depends on the openGear frame you are installing the card into. •...
  • Page 18: Installing The Ada-8405-C

    Installing the ADA-8405-C This section outlines how to install the ADA-8405-C in an openGear frame. If the ADA-8405-C is to be installed in any compatible frame other than a Ross Video product, refer to the frame manufacturer's manual for specific instructions.
  • Page 19: Cabling For The Ada-8405-C

    This section provides information for connecting cables to the installed Rear Modules. Connect the input and output cables according to the following sections. DFR-8310 Series Frame Cabling Overview The ADA-8405-C is used with the following Rear Modules: • 8310AR-042 Full Rear Module — Each module occupies one slot and accommodates one card.
  • Page 20: Software Upgrades For The Ada-8405-C

    Note — DashBoard version 3.0.0 or higher is required for this procedure. To upgrade the software on the ADA-8405-C 1. Contact Ross Technical Support for the latest software version file. 2. Display the Device View of the card by double-clicking its status indicator in the Basic Tree View.
  • Page 21: User Controls

    User Controls In This Chapter This chapter provides a general overview of the user controls available on the ADA-8405-C. The following topics are discussed: • Card Overview • Configuring the DIP Switches • Control and Monitoring Features ADA-8405-C User Manual (Iss. 02)
  • Page 22: Card Overview

    SW3, SW4 — Output Mode Selection SW3 and SW4 are used in conjunction to set the output mode of the ADA-8405-C. Refer to the section “Setting the Output Mode” on page 3-3 for details. This DIP Switch is not implemented.
  • Page 23: Configuring The Dip Switches

    Switches to change settings on the card. You can still monitor the card status in DashBoard. Setting the Output Mode SW3 and SW4 are used in conjunction to set the output mode of the ADA-8405-C. Table 3.1 lists the combinations of DIP Switch settings for SW3 and SW4.
  • Page 24 Table 3.2 Specifying the Gain SW10 Gain (dB) UNITY 3–4 • User Controls ADA-8405-C User Manual (Iss. 02)
  • Page 25: Control And Monitoring Features

    Control and Monitoring Features This section provides information on the card-edge LEDs for the ADA-8405-C. Refer to Figure 3.3 for the location of the LEDs. PWR LED Card Ejector Figure 3.3 ADA-8405-C Card-edge LEDs Status and Selection LEDs on the ADA-8405-C Table 3.3 describes the PWR LED.
  • Page 26 3–6 • User Controls ADA-8405-C User Manual (Iss. 02)
  • Page 27: Dashboard Menus

    DashBoard Menus In This Chapter This chapter briefly summarize the menus, items, and parameters available from the DashBoard Control System™ for the ADA-8405-C. Parameters marked with an asterisk (*) are the factory default values. The following topic is discussed: •...
  • Page 28: Status Tabs

    Analog Audio and Timecode Distribution Amplifier Product ADA-8405-C Card Info Supplier Ross Video Ltd. (Read-only) Serial Number Indicates the serial number of the board Software Rev #.## Indicates the software version 4–2 • DashBoard Menus ADA-8405-C User Manual (Iss. 02)
  • Page 29: Settings Tab

    Specifies the coarse level gain adjustment Left Trim Control (dB) -15 to +15 applied to ANLG In 1 Right Trim Control Specifies the coarse level gain adjustment -15 to +15 (dB) applied to ANLG In 2 ADA-8405-C User Manual (Iss. 02) DashBoard Menus • 4–3...
  • Page 30 4–4 • DashBoard Menus ADA-8405-C User Manual (Iss. 02)
  • Page 31: Specifications

    Specifications In This Chapter This chapter provides the technical specification information for the ADA-8405-C. Note that specifications are subject to change without notice. The following topics are discussed: • Technical Specifications ADA-8405-C User Manual (Iss. 02) Specifications • 5–1...
  • Page 32: Technical Specifications

    Technical Specifications This section provides the technical specifications for the ADA-8405-C. Table 5.1 ADA-8405-C Technical Specifications Category Parameter Specification 8310AR-042 and 8320AR-042: 2 Number of Inputs 8320AR-043: 1 Input Impedance >20Kohm, balanced Analog Inputs Connector WECO® Maximum Input Level +27.5dBu...
  • Page 33: Service Information

    Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy ADA-8405-C User Manual (Iss. 02) Service Information • 6–1...
  • Page 34: Troubleshooting Checklist

    Routine maintenance to this openGear product is not required. In the event of problems with your ADA-8405-C, the following basic troubleshooting checklist may help identify the source of the problem. If the frame still does not appear to be working properly after checking all possible causes, please contact your openGear products distributor, or the Technical Support department at the numbers listed under the “Contact Us”...
  • Page 35: Warranty And Repair Policy

    FIVE (5) years from the date of shipment from our factory. In the event that your ADA-8405-C proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics.
  • Page 36 Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
