Serial monitoring amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Save Time and Avoid Damage!
We realize that you will want to start installing your new equipment right away. But, you will
save time and avoid costly damage by taking a few moments to review the following helpful
information before you proceed.
1. Installation and Cable Connections
Before turning the power on, consult the "Installation" section of this manual to
obtain specific advice about cable connections, switch settings and jumper
configurations.
2. Operation
See the "Operation" section for proper use of your new equipment.
3. Calibration
All Ross Video Terminal Equipment is factory calibrated. Adjustment of sealed
calibration components or any repairs to this unit, are to be performed by an
authorized Ross Video technician. Unauthorized repairs will void your Warranty.
In Case of Problems
If you encounter any problems with the installation of this unit, please call our Customer
Service Department at (613) 652-4886, 24 hours a day, 7 days a week.
Advice is available, without charge, for the life of this equipment, not just for the warranty
period.
DM-8018-02
READ THIS FIRST!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMA-8018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ross SMA-8018

Summary of Contents for Ross SMA-8018

  • Page 1 See the “Operation” section for proper use of your new equipment. 3. Calibration All Ross Video Terminal Equipment is factory calibrated. Adjustment of sealed calibration components or any repairs to this unit, are to be performed by an authorized Ross Video technician. Unauthorized repairs will void your Warranty.
  • Page 2 SMA-8018 Serial Monitoring Amplifier USER’S MANUAL DM-8018-02...
  • Page 3 The material in this guide is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.

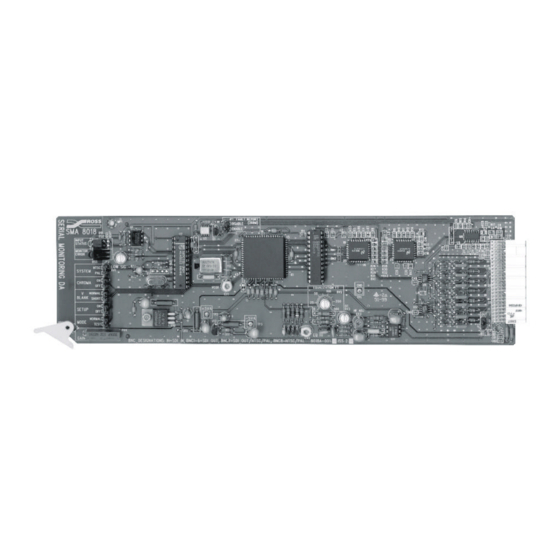

  • Page 4 The SMA-8018 Component Monitoring Amplifier provides a convenient and cost effective solution to signal distribution and picture monitoring requirements in serial component (4:2:2) systems. The complete unit occupies only a single card slot in a standard Ross digital rack frame. Ten modules may be mounted in the 2-RU frame.

  • Page 5: Installation

    However, in the case of the SMA-8018, there are six or seven outputs of serial digital and one or two analog composite video outputs. It is not necessary to terminate unused outputs.
  • Page 6 SMA-8018 Serial Monitoring Amplifier V BLANK (JP2) NORMAL Deletes all vertical interval information signals (20-line blanking). SHORT Passes all vertical interval signals occurring after the post equalizing pulses. If setup is ON, the signal will be non-standard because setup will be applied to the vertical interval.
  • Page 7 SMA-8018 Serial Monitoring Amplifier Operation The only customer-operated controls are GAIN (RV4) and EQ (RV2) for the analog video output. The GAIN control has been factory-adjusted for correct output level and should not need adjustment in the field. The front edge of the module has several LED indicators, which show the current status of the amplifier.
  • Page 8 Ross Video Ltd. for repair. All Ross digital distribution products are covered by a generous 5-year warranty and will be repaired without charge for materials or labor in this period. See "Ross Gear Terminal Equipment - Warranty and Repair Policy" in this manual.

  • Page 9: Specifications

    DM-8018 Additional User's Manual for SMA-8018 Note: All Ross Video Limited terminal equipment frames include one power supply. A redundant power supply may be installed in all two-rack unit frames if required. One User's manual is supplied with each frame.

  • Page 10: Warranty And Repair Policy

    FIVE (5) years from the date of shipment from our factory. In the event that your Ross Gear product proves to be defective in any way during this warranty period, we will gladly repair or replace this piece of equipment with a unit of equal or superior performance characteristics.
