- Page 1 DRA-8604 Dual 3G/HD/SD Reclocking Amplifier User Manual...
- Page 2 Copyright © 2013 Ross Video Limited. All rights reserved. This work is proprietary and confidential to Ross Video Limited, its subsidiaries and its other affiliated corporations and may not be copied, distributed, sold or otherwise used or relied upon without the express written permission of Ross Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited.
-
Page 3: Important Safety Instructions
Important Regulatory and Safety Notices to Service Personnel Before using this product and nay associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. - Page 4 Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A”...
- Page 5 The crossed out wheelie bin symbol invites you to use these systems. If you need more information on the collection, re-use, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performance of our products.
- Page 6 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario, K0E 1K0 Ogdensburg, New York Canada USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
-
Page 7: Table Of Contents
Card Overview ........................3-2 Monitoring Features......................3-3 Status LEDs ......................3-3 Using DashBoard ......................... 3-4 Configuring the DRA-8604 ....................3-5 Enabling a Single Channel Configuration............. 3-5 Enabling the Failover Feature ................3-5 Configuring the Equalizer for a Channel............... 3-6 Configuring the Reclocker for a Channel.............. 3-6 Loss of Input...................... - Page 8 Specifications Technical Specifications ...................... 5-2 Service Information Troubleshooting Checklist ....................6-2 Bootload Button..................... 6-2 Warranty and Repair Policy ....................6-3 ii • Contents DRA-8604 User Manual (Iss. 02)
-
Page 9: Introduction

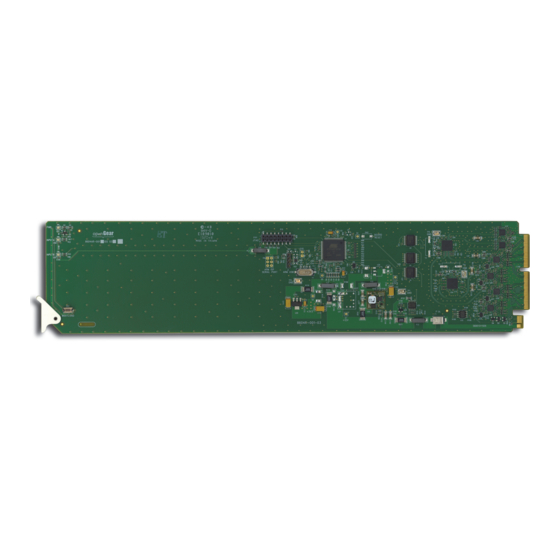

Congratulations on choosing an openGear DRA-8604 Dual 3G/HD/SD Reclocking Amplifier. Your DRA-8604 is part of a full line of products within the openGear Terminal Equipment family of products, backed by Ross Video’s experience in engineering and design expertise since 1974. -
Page 10: Overview
The outputs are non-inverting making it an excellent ASI distribution amplifier. A special feature of the DRA-8604 is the ability to operate in a number of different channel configurations. Dual channel mode is ideal for applications requiring only a few outputs, such as mid-cable signal boosters, router expansion, or signal cleanup. -
Page 11: Functional Block Diagrams
Functional Block Diagrams The DRA-8604 can operate as a reclocking dual 1x8 or as a dual 1x4. The configuration depends on the rear module you are using. This section provides the block diagrams for all configurations. Dual 1x8 Configuration Figure 1.1 describes the workflow of the DRA-8604 with the 8320AR-302 Full Rear module. -
Page 12: Single 1X16 Configuration
Single 1x16 Configuration Figure 1.3 describes the workflow of the DRA-8604 with the 8320AR-302 Full Rear module and the Channel Option menu set to Single Channel (1x16). This configuration has the DRA-8604 operating as a single reclocking 1x16 with HD-BNC connections. -
Page 13: User Interfaces
User Interfaces The following interfaces are available for control and monitoring of your DRA-8604. DashBoard Control System™ The DashBoard Control System™ enables you to monitor and control openGear frames and cards from a computer. DashBoard communicates with other cards in the openGear frame through the Network Controller Card. -
Page 14: Documentation Terms And Conventions
“openGear frame” refers to all versions of the DFR-8321 series and OG3-FR series frames unless otherwise indicated. • “Operator” and “User” both refer to the person who uses the DRA-8604. • “System” and “Video system” both refer to the mix of interconnected production and terminal equipment in which the card operates. -
Page 15: Installation
Installation In This Chapter This chapter provides instructions for installing the rear module for your DRA-8604, installing the card in the openGear frame, cabling details, and how to upgrade the software on your card(s). The following topics are discussed: •... -
Page 16: Before You Begin
Unpacking Unpack each card you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. 2–2 • Installation DRA-8604 User Manual (Iss. 02) -
Page 17: Installing The Dra-8604
The procedure for installing the rear module and card in your openGear frame is the same regardless of the rear module used. The DRA-8604 can be installed in the DFR-8321 series frames and the OG3-FR series frames using one of the supported rear modules. - Page 18 3. Carefully align the card edges with the slots in the frame. 4. Fully insert the card into the frame until the rear connection plugs are properly seated on the midplane and rear modules. 2–4 • Installation DRA-8604 User Manual (Iss. 02)
-
Page 19: Cabling
Cabling The DRA-8604 can operate as a dual 1x8, or a dual 1x4 depending on the rear module you are using. This section provides cabling details based on the configuration. Important — It is necessary to terminate unused outputs. Dual 1x8 Configuration The 8320AR-302 Full Rear Module is required when operating in a dual 1x8 configuration. - Page 20 SDI IN BACKUP IN OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 9 10 OUT 7 OUT 8 Figure 2.5 Cable Connections for the 8320AR-300 Full Rear Module 2–6 • Installation DRA-8604 User Manual (Iss. 02)
-
Page 21: Software Upgrades
Software Upgrades The DRA-8604 can be upgraded in the field via the Network Controller Card in your openGear frame. Note that DashBoard version 5.1.0 or higher is required for this procedure. To upgrade the software on a card 1. Contact Ross Technical Support for the latest software version file. - Page 22 2–8 • Installation DRA-8604 User Manual (Iss. 02)
-
Page 23: Configuration
Configuration In This Chapter This chapter provides a general overview of the user controls available on your DRA-8604. The following topics are discussed: • Card Overview • Monitoring Features • Using DashBoard • Configuring the DRA-8604 DRA-8604 User Manual (Iss. 02) -
Page 24: Card Overview
Figure 3.1 Card-edge Controls 1. Bootload Button This button is used for factory service in the unlikely event of a complete card failure. Do not use this button unless advised by Ross Technical Support. For More Information on... • the Bootload process, refer to the section “Bootload Button” on page 6-2. -
Page 25: Monitoring Features
When lit red or flashing red, this LED indicates the card is not operational. Re-seat card in frame, check the rear module type and connections, or call Ross Video Technical Support. When unlit, this LED indicates there is no power to the card. -
Page 26: Using Dashboard
1. Ensure that you are running DashBoard software version 5.1.0 or higher. 2. Launch DashBoard by double-clicking its icon on your desktop. 3. Ensure that the openGear frame with your DRA-8604 card(s) is displayed in the Tree View located on the left-side of the DashBoard window. -
Page 27: Configuring The Dra-8604
The failover feature enables the DRA-8604 to use a backup input source when the primary input source is lost and the backup input is stable for at least 3 seconds. Once the DRA-8604 determines that the primary input source is stable for at least 3 seconds, it automatically switches back to the primary source. -
Page 28: Configuring The Equalizer For A Channel
2. Select the Enable Reclocker check box for the channel to clear the box contents. Loss of Input You can configure the DRA-8604 to report when a loss of input occurs for any channel. 3–6 • Configuration DRA-8604 User Manual (Iss. 02) - Page 29 The Status fields in the Signal tab now report when the card detects an invalid or absent input signal for that channel. To verify which BNC to troubleshoot, refer to the rear module labelling or the Input BNC status field in the Setup tab. DRA-8604 User Manual (Iss. 02) Configuration • 3–7...
- Page 30 3–8 • Configuration DRA-8604 User Manual (Iss. 02)
-
Page 31: Dashboard Menus
This chapter briefly summarizes the menus, items, and parameters available from DashBoard for your card. Default parameters are noted with an asterisk (*). The following topics are discussed: • Status Tabs • Setup Tab • Alarms Tab DRA-8604 User Manual (Iss. 02) DashBoard Menus • 4–1... -
Page 32: Status Tabs
Setup tab) Locked - 270M Reclocker locks at 270Mbps data rate Output Locked - 1.5G Reclocker locks at 1.485Gbps data rate Locked - 3.0G Reclocker locks at 2.97Gbps data rate 4–2 • DashBoard Menus DRA-8604 User Manual (Iss. 02) -
Page 33: Hardware Tab
Current consumption of card CPU Headroom Processing power available RAM Available On-board processing memory available Displays the number of hours since the Uptime (h) last reboot of the card Configuration Bank Storage count DRA-8604 User Manual (Iss. 02) DashBoard Menus • 4–3... -
Page 34: Product Tab
Indicates the rear module the card is installed in Rear Module Indicates that the installed rear module is Unknown not recognized by the card Software Rev ##.## Indicates the software version 4–4 • DashBoard Menus DRA-8604 User Manual (Iss. 02) -
Page 35: Setup Tab
This option only available when using the 8320AR-300 Full Rear Module. c. If the fields are labeled as Channel A-1 and Channel A-2, the Channel Options menu is set to Single Channel. DRA-8604 User Manual (Iss. 02) DashBoard Menus • 4–5... -
Page 36: Alarms Tab
Cleared the loss of the specified input as information only a. If the fields are labeled as Channel A-1 and Channel A-2, the Channel Options menu is set to Single Channel. 4–6 • DashBoard Menus DRA-8604 User Manual (Iss. 02) -
Page 37: Specifications
Specifications In This Chapter This chapter includes the technical specifications for the DRA-8604. Note that specifications are subject to change without notice. The following topics are discussed: • Technical Specifications DRA-8604 User Manual (Iss. 02) Specifications • 5–1... -
Page 38: Technical Specifications
Technical Specifications This section lists the technical specifications for the DRA-8604. Table 5.1 Technical Specifications Category Parameter Specification Supported Rear Modules 8320AR-300, 8320AR-302 Rear Modules Number of Inputs 270Mbps, 525/625 Component, SMPTE 259M 270Mbps, SMPTE 310 Data Rates and SMPTE Standards... -
Page 39: Service Information
Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy DRA-8604 User Manual (Iss. 02) Service Information • 6–1... -
Page 40: Troubleshooting Checklist
Bootload Button In the unlikely event of a complete card failure, you may be instructed by a Ross Technical Support specialist to reload the software on the card. To reload the software on the card 1. -
Page 41: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your DRA-8604 proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 42 Notes:...
- Page 43 Notes:...
- Page 44 Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
