Planet ADE-3400 User Manual

Adsl 2/2+ router
Hide thumbs Also See for ADE-3400:
Table of Contents

Advertisement

Quick Links

Download this manual

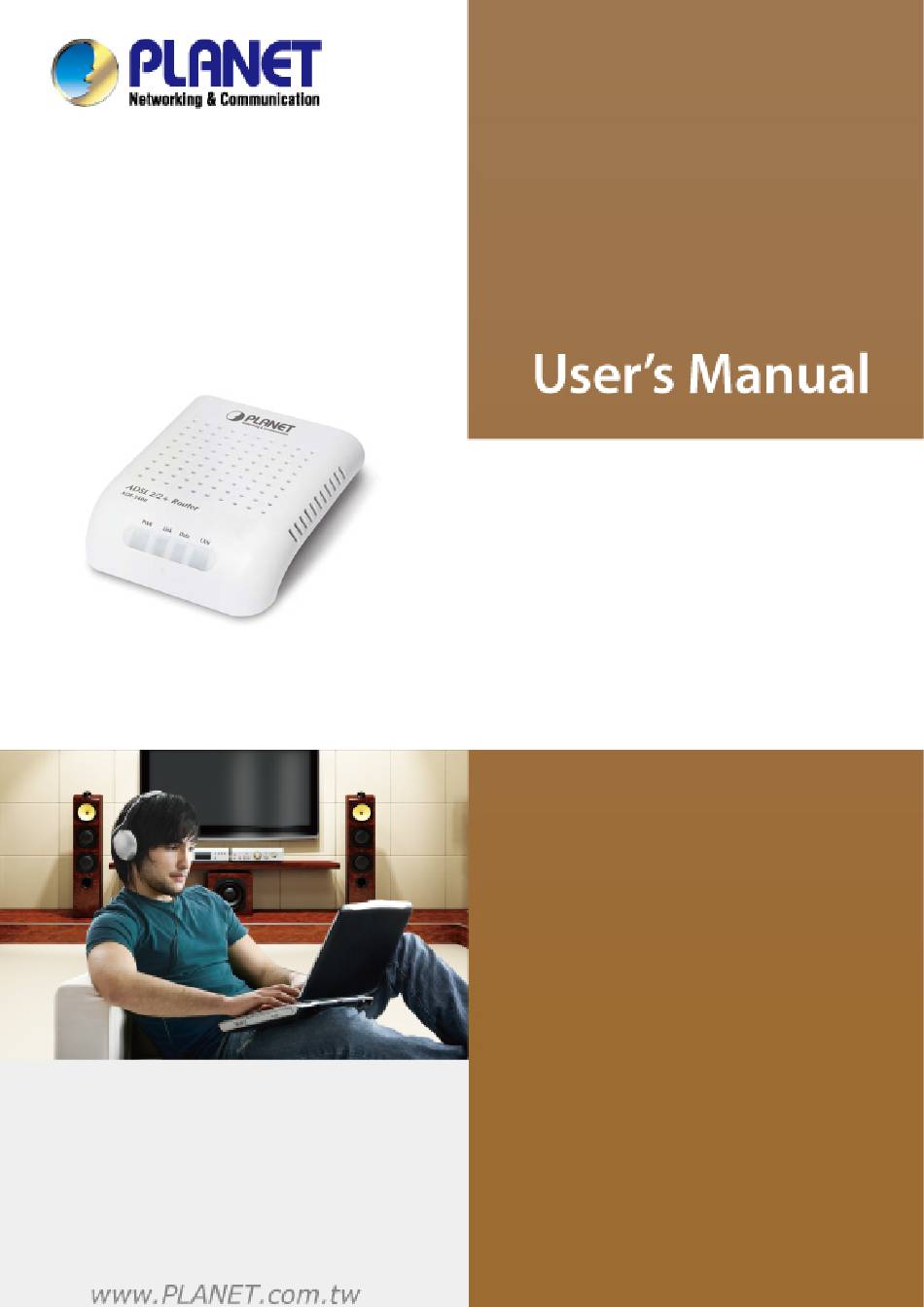

ADSL 2/2+ Router
ADE-3400
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADE-3400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet ADE-3400

Summary of Contents for Planet ADE-3400

  • Page 1 ADSL 2/2+ Router ADE-3400...
  • Page 2 Copyright Copyright 2011 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and...

  • Page 4: Table Of Contents

    Table of Contents 1. INTRODUCTION ................................ 6 1.1 Feature ..........................6 1.2 Package Contents ......................8 1.3 Physical Details ........................9 2. INSTALLATION................................ 11 2.1 System Requirement......................11 2.2 Hardware Installation ....................... 11 2.3 Configuring the Network Properties................12 3. WEB CONFIGURATION MANAGEMENT ......................17 3.1 Access the Router ......................
  • Page 5 3.5.2.1 IP Port Filter..........................36 3.5.2.2 MAC Filter............................ 36 3.5.2.3 URL Blocking..........................37 3.5.2.4 Virtual Server..........................38 3.5.2.5 DMZ Setting ..........................38 3.5.2.6 NAT EXCLUDE IP ........................39 3.5.2.7 DoS Setting ........................... 39 3.5.3 UPNP ............................... 40 3.5.4 IGMP Proxy............................. 40 3.5.5 TR-069..............................

  • Page 6: Introduction

    Shared Internet Access  All users on the LAN can access the Intern et through the ADE-3400 using only a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address Translation).
  • Page 7 It is an easy way to remotely manage the router via SNMP. LAN Features Ethernet Port  The ADE-3400 provides one Ether net port, making it easy to create or extend your LAN. DHCP Server Support  Dynamic Host Configuration Protocol provides a dynamic IP address to P Cs and other devices upon request.

  • Page 8: Package Contents

    1.2 Package Contents ‧ ADE-3400 Unit x 1 ‧ Power Adapter x 1 ‧ Quick Installation Guide x 1 ‧ User’s Manual CD x 1 ‧ RJ-11 cable x 2 ‧ RJ-45 cable x 1 ‧ Splitter x 1...

  • Page 9: Physical Details

    1.3 Physical Details Front Panel of ADE-3400 Front Panel LED definition State Description When the router is powered on and in ready state. The devise is being turned on and booting. When the router is powered off. Successful connection between ADSL modem and telecom' Link network.
  • Page 10 Rear Panel of ADE-3400 Rear Panel Port and Button Definition Connector Description POWER Button The power button is for turn on or turns off the router. Power Power connector with 5V DC, 1A The reset button can restore the defaul t settings of device. To restore...

  • Page 11: Installation

    The “Phone” port of the splitter can be use to connect the telephone by a telephone cable.  Use Ethernet cable to connect “LAN” port of the modem and “LAN” port of your computer. Figure1 ADE-3400 connection diagram...

  • Page 12: Configuring The Network Properties

    If do not need to connect to the splitter,  Connect the modem to wall jack with a telephone cable.  Use Ethernet cable to connect “LAN” port of the modem and network adaptor of your computer. 2.3 Configuring the Network Properties Configuring PC in Windows XP 1.
  • Page 13 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration.
  • Page 14 Configuring PC in Windows 2000 Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. Double-click Local Area Connection. In the Local Area Connection Status window click Properties. Select Internet Protocol (TCP/IP) and click Properties. Select the Obtain an IP address automatically and the Obtain DNS server address...
  • Page 15 Click OK to finish the configuration.
  • Page 16 Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP  NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC.

  • Page 17: Web Configuration Management

    3. Web Configuration Management This chapter describes how to configure the router by using the W eb-based configuration utility. 3.1 Access the Router The following is the detailed description of accessing the router for the first time. Step 1 : Open the Internet Explorer (IE) browser and enter http://192.168.1.1. Step 2 : In the Login page that is displayed, enter the username and password.

  • Page 18: Wizard

    3.2 Wizard The Wizard page guides fast and accurate configur ation of the Internet connection an d other important paramet ers. The following sections d escribe these various configuration parameters. Whether you configure these parameters or use the default ones, click NEXT to enable your Internet connection.
  • Page 19 The following table describes the parameters of this page: Field Description You can disable or enable NTP function. You have to enable it if State you want to configure the parameters of this page. Server IP Enter the IP address of the specified time server manually. Set the interval that the router obtains the time from the time Interval...
  • Page 20 If you want to modify the configuration, click BACK to return to the pr evious page. If you ensure the configuration is correct, click FINISH to take the configuration effect. 1483 MER In the Setup WAN Interface page, enter the correct PVC, set the channel mode to 1483 MER.
  • Page 21 Field Description Default Route You can select Enable or Disable.  Obtain DNS Automatically : IP address is assigned by the of fice end automatically. You need not to enter the IP address. DNS Settings  Use the follow ing DNS server address : If you want to enter the DNS server address manually, select it and enter the IP addresses of primary DNS and secondary DNS.
  • Page 22 Field Description reserved for local management of ATM traffic). Select the method of encap sulation provided by your ISP . Y ou can Encapsulation select LLC/SNAP or VC-Mux. Select the W AN connection type. You can select 1483 Bridged, 1483 Channel MER, PPP over Ethernet (PPPoE), PPP over ATM (PPPoA), or 1483 Mode...
  • Page 23 The following table describes the parameters of this page: Field Description  VPI: Virtual Path Identifier (VPI) is the virtual p ath between two points in an ATM network, and its valid value is from 0 to 255. PVC Settings ...

  • Page 24: Status

    3.3 Status In the navigation bar, click Status. In the Status page that is displayed contains System, LAN, WAN, Statistics and ARP Table. 3.3.1System Choose Status > System. The page that is displayed shows the current status and some basic settings of the router , such as, uptim e, sof tware version, up stream speed, downstream speed, and other information.

  • Page 25: Statistics

    3.3.4 Statistics Choose Status > Statistics. The Statistics page that is displayed cont ains Traffic Statistic and DSL Statistic. 3.3.4.1 Traffic Statistic Click Traffic Statistic in the left pane, the page shown in the following figure appears. In this page, you can view the statistics of each network interface. 3.3.4.2 ADSL Statistic Click DSL Statistic in the left pane, the page shown in the following figure appears.

  • Page 26: Arp Table

    3.3.5 ARP Table Choose Status > ARP Table. In the Arp tables page, you can view the table that shows a list of learned MAC addresses. 3.4 Network In the navigation bar , click Network. The Network page that is display ed contains LAN and WAN.

  • Page 27: Dhcp

    Field Description Enter the IP address of LAN interface. It is recommended to use an address from a block that IP Address is reserved for private us e. This address block is 192.168.1.1- 192.168.255.254. Enter the subnet mask of LAN interface. The Subnet Mask range of subnet mask is from 255.255.0.0-255.255.255.254.
  • Page 28 The following table describes the parameters of this page: Field Description If set to DHCP Server, the router can assign IP addresses, IP default gateway and DNS Servers to the host in Windows95, DHCP Mode Windows NT and other operation systems that support the DHCP client.
  • Page 29 Field Description Device Name You can set the device name on this item. Start Address The IP address range start address. End Address The IP address range end address. Router Address Set the router address on this item Option60 Type the Option60 value. In the DHCP Mode field, choose None.

  • Page 30: Dhcp Static Ip

    The following table describes the parameters and buttons of this page: Field Description If set to DHCP Re lay, the router act surrogate DHCP Ser ver and relays the DHCP DHCP Mode requests and responses between the remote server and the client. Enter the DHCP ser ver address provided by Relay Server your ISP.
  • Page 31 The following table describes the parameters of this page: Field Description Default Route Selection You can select Auto or Specified. The virtual path between two poi nts in an ATM network, ranging from 0 to 255. The virtual channel between two points in an ATM network, ranging from 32 to 655 35 (1 to 31 are reserved for known protocols) Encapsulation...
  • Page 32 Field Description IP address is assigned by the remote DHCP server. Enter the IP address of W AN interface provided by your Local IP Address ISP. Remote IP Address Enter the gateway IP address provided by your ISP. Netmask Enter the subnet mask of the local IP address. Unnumbered Select this checkbox to enable IP unnumbered function.

  • Page 33: Atm Setting

    Field Description idle timeout time. Within the preset minutes, if the router does not detect the flow of the user continuously , the router automatically disconnects the PPPoE connection. You can select Bridged Ethernet, Bridged PPPoE, or Bridge Disable Bridge. AC-Name The accessed equipment type.

  • Page 34: Adsl Setting

    3.4.2.3 ADSL Setting Click ADSL Setting in the lef t pane, the p age shown in the following figure appears. In this p age, you can select the DSL modulati on. Mostly, you need to remain this factory default settings. The router supports these modulations: G.Lite, G. Dmt, T1.413, ADSL2, ADSL2+, AnnexL, and AnnexM.

  • Page 35: Ddns

    The following table describes the parameters and buttons of this page: Field Description Select it, the router acc epts the first received DNS Attain DNS Automatically assignment from one of the PPPoA, PPPoE or MER enabled PVC(s) during the connection establishment. Select it, enter the IP addr esses of the primary and Set DNS Manually secondary DNS server.

  • Page 36: Firewall

    Field Description DDNS provider Choose the DDNS provider name. Hostname The DDNS identifier. Interface The WAN interface of the router. Enable Enable or disable DDNS function. Username The name provided by DDNS provider. Password The password provided by DDNS provider. Email The email provided by DDNS provider.

  • Page 37: Url Blocking

    3.5.2.3 URL Blocking Click URL Blocking in the left pane, the page shown in the following figure appears. This page is us ed to block a fully qualified dom ain name, such as tw .yahoo.com and filtered keyword. You can add or delete FQDN and filtered keyword. The following table describes the parameters and buttons of this page: Field Description...

  • Page 38: Virtual Server

    3.5.2.4 Virtual Server Click Virtual Server in the left pane, the page shown in the following figure appears. The following table describes the parameters of this page: Field Description You can select the common service type, for example, AUTH, DNS, or FTP. You can also define a service name. ...

  • Page 39: Nat Exclude Ip

    3.5.2.6 NAT EXCLUDE IP In the p age , you can config some source IP address which use t he purge route mode when access internet through the specified interface .You can set a range of the ip not via the NAT to the internet.

  • Page 40: Upnp

    3.5.3 UPNP Choose Service > UPnP, the p age shown in the following figure appears. This p age is used to configure UPnP. The system acts as a daemon after you enable it. 3.5.4 IGMP Proxy Choose Service > IGMP Proxy, the p age shown in the following figure appears. IGMP proxy enables the system to issue IGMP hos t messages on behalf of host s that the system discovered through st andard IGMP interfaces.

  • Page 41: Acl

    The following table describes the parameters of this page: Field Description The URL of the auto-configuration server to connect to. User Name The user name for logging in to the ACS. Password The password for logging in to the ACS. Select Enable to periodically connect to the ACS to chec k Periodic Inform Enable whether the configuration updates.
  • Page 42 The following table describes the parameters and buttons of this page: Field Description Select the router inte rface. You can select LAN or WAN. In this Direction Select example, LAN is selected. LAN ACL Switch Select it to enable or disable ACL function. Enter the IP address of the specified interface.

  • Page 43: Advance

    The following table describes the parameters and buttons of this page: Field Description Select the router interface. You can select LAN or WAN. Direction Select In this example, WAN is selected. WAN Setting You can choose Interface or IP Address. Choose the interface that permit s dat a p ackets from WAN Interface WAN to access the router.

  • Page 44: Routing

    3.6.2 Routing Choose Advance > Routing , the page shown in the follo wing figure appears. The p age that is displayed contains RIP and Static Route. 3.6.2.1 Static Route Click Static Route in the lef t pane, the p age shown in the following figure appears. This page is used to configure the routing information.

  • Page 45: Rip

    Field Description Select a row in the S tatic Route T able and click it to Delete Selected delete the row. Click it, the IP Route Table appears. You can view a list Show Routes of destination routes commonly accessed by your network.

  • Page 46: Qos

    Field Description  Choose RIP1 indicates the router broadcast s RIP1 messages only.  Choose RIP2 indicates the router multicast s RIP2 messages only. Click it to add the RIP interface to the Rip Config List. Select a ro w in the Rip Config List and click it to delete the Delete row.

  • Page 47: Snmp

    The following table describes the parameters and buttons of this page: Field Description Select to enable or disable IP QoS function. You need to enable IP IP QoS QoS if you want to configure the parameters of this page. QoS Policy You can choose stream based, 802.1p based, or DSCP based.

  • Page 48: Others

    Community name The networ k administrators must use this p assword to (read-only) read the information of this router. Community name The networ k administrators must use this p assword to (write-only) configure the information of the router. 3.6.5 Others Choose Advance >...

  • Page 49: Upgrade

    3.7.2 Upgrade Choose Admin > Upgrade. The Upgrade p age t hat is displayed cont ains Upgrade Firmware and Backup/Restore. Caution: Do not turn off the router or press the Reset button w hile th e proced ure is in progress.

  • Page 50: System Log

    Click it, and select the path. Then you can save the Save Settings to File configuration file of the router. Load Settings from File Click Browse to select the configuration file. After selecting the configur ation file of the router , Upload click Upload to st art uploading the configuration file of the router.

  • Page 51: Time Zone

    Field Description root If you want to change the password, select the account and Old Password enter the old password. Enter the password to which you want to change the old New Password password. Confirmed Password Enter the new password again. User Account Table Select it, and you can change the above parameter.

  • Page 52: Atm Loopback

    The following table describes the parameter and button of this page: Field Description Host Enter the valid IP address or domain name. Run Ping Click it to start to Ping. 3.8.2 ATM Loopback Choose Diagnostic > ATM Loopback. The page shown in the following figure appears. In this p age, you can use VCC loopback functi on to check the connectivity of the VCC.

  • Page 53: Diagnostic Test

    Click Start to start ADSL tone diagnostics. 3.8.4 Diagnostic Test Choose Diagnostic > Diagnostic Test, the p age shown in the following figure appears. In this p age, you can test the DSL connec tion. Y ou can also view the LAN st atus connection and ADSL connection.

  • Page 54: Appendix A: Glossary

    Appendix A: Glossary Address mask A bit mask select bits from an Internet address for subnet addressing. The mask is 32 bits long and selects the network portion of the Internet address and one or more bits of the local portion. Sometimes it called subnet mask. AAL5 ATM Adaptation Layer - This layer maps higher layer user data into ATM cells, making the data suitable for transport through the ATM network.
  • Page 55 DHCP (Dynamic Host Configuration Protocol) DHCP is software that automatically assigns IP addresses to client stations logging onto a TCP/IP network. DHCP eliminates having to manually assign permanent IP addresses to every device on your network. DHCP software typically runs in servers and is also found in network devices such as Routers.
  • Page 56 HTML Hypertext Markup Language - The page-coding language for the World Wide Web. HTML browser A browser used to traverse the Internet, such as Netscape or Microsoft Internet Explorer. http Hypertext Transfer Protocol - The protocol carry world-wide-web (www) traffic between a www browser computer and the www server being accessed.
  • Page 57 Management Information Base - A collection of objects can be accessed via a network management protocol, such as SNMP and CMIP (Common Management Information Protocol). Network Address Translation - A proposal for IP address reuse, where the local IP address is mapped to a globally unique address.
  • Page 58 Route The path that network traffic takes from its source to its destination. The route a datagram may follow can include many gateways and many physical networks. In the Internet, each datagram is routed separately. Router A system is responsible for making decisions about which of several paths network (or Internet) traffic will follow.
  • Page 59 Spoofing A method of fooling network end stations into believing that keep alive signals have come from and returned to the host. Polls are received and returned locally at either end Static IP Address A static IP address is an IP address permanently assigned to computer in a TCP/IP network. Static IP addresses are usually assigned to networked devices that are consistently accessed by multiple users, such as Server PCs, or printers.
  • Page 60 User Datagram Protocol - A connectionless transport protocol that runs on top of TCP/IP's IP. UDP, like TCP, uses IP for delivery; however, unlike TCP, UDP provides for exchange of datagram without acknowledgments or guaranteed delivery. Best suited for small, independent requests, such as requesting a MIB value from an SNMP agent, in which first setting up a connection would take more time than sending the data.
  • Page 61 Important Note According to Annex3 of the ERC/REC 70-03 publication, the use of Wideband Data Transmission systems has the following National Restrictions: Frequency range: 2400-2483.5MHz Country Restriction Reason/Remark France Outdoor use limited to 10 mW Military Radiolocation use. Refarming of the 2.4 GHz b and e.i.r.p.
