Crestron WPR-DS
Docking Station for WPR-48
Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPR-DS and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron WPR-DS

Summary of Contents for Crestron WPR-DS

  • Page 1 Crestron WPR-DS Docking Station for WPR-48 Operations Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names, and trademarks are the property of their respective owners. ©2004 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Crestron WPR-DS Contents Docking Station for WPR-48: WPR-DS Introduction ... 1 Functions and Features... 1 Specifications ... 2 Physical Description... 2 Industry Compliance ... 4 Setup ... 4 Power Source... 4 Docking Station to PC Serial Communication ... 5 Problem Solving ... 5 Troubleshooting ...

  • Page 5: Docking Station For Wpr-48: Wpr-Ds

    The duration of a “trickle charge” is continuous as long as the WPR-48 is not fully charged. The WPR-DS also functions as an interface to a PC via the RS-232 port, for uploading of new firmware and configuring the WPR-48.

  • Page 6: Specifications

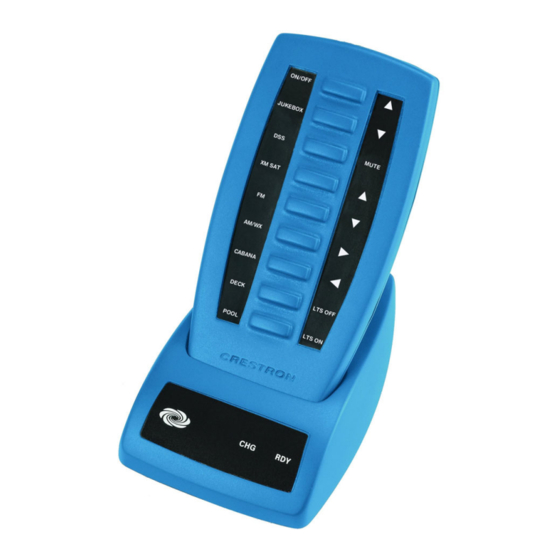

    Specifications for the WPR-DS Physical Description The WPR-DS, shown below and on the next page, is constructed of blue high- impact -plastic with labeling on the front and rear surfaces. Three LEDs on the front panel indicate the unit’s status. The cavity accommodates the WPR-48 wireless handheld remote.
  • Page 7 This port supplies power via the PW-1205 (110v USA and Canada) or PWI-1210 (220v International) external power pack supplied with the docking station. RS-232 This port provides serial interface between the WPR-DS and the PC. Operations Guide – DOC. 6255A Docking Station for WPR-48...

  • Page 8: Industry Compliance

    Docking Station for WPR-48 Indicators Illuminates green when 12 VDC power is provided to the WPR-DS via the external power pack. CHG (Charge) Illuminates (red) when a WPR-48 is inserted in the WPR-DS cavity and their contacts meet. The LED remains ON while the rechargeable battery is charging.

  • Page 9: Docking Station To Pc Serial Communication

    Use an RS-232 cable (RJ-11 – DB-9, such as the Crestron STCP-502 (not supplied) to connect the WPR-DS to the serial port of the PC. This connection can also be made with a modular RJ-11 cable and a DB9F to RJ-11 adapter. (Refer to the following illustration.)

  • Page 10: Further Inquiries

    Crestron's award winning customer service team in your area. Dial one of the following numbers. You can also log onto the online help section of the Crestron website (www.crestron.com) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.

  • Page 11: Return And Warranty Policies

    CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures.
  • Page 12 Crestron Electronics, Inc. Operations Guide – DOC. 6255A 15 Volvo Drive Rockleigh, NJ 07647 10.04 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
