This User's Guide describes the evaluation module (EVM) for the TPS2378 (TPS2378EVM-105).
TPS2378 is an IEEE802.3at type 2 compliant powered device (PD) controller.
1
1.1
1.2
2
...................................................................................................................
3
....................................................................................................................
4
5
5.1
5.2
6
6.1
6.2
6.3
7
1
2
3
4
5
6
7
8
1
2
...................................................................................................................
3
......................................................................................................................
4
5
SLVU682 - March 2012
Submit Documentation Feedback
..................................................................................................................
.............................................................................................................
.........................................................................................................
..........................................................................................
..................................................................................
....................................................................................................
..........................................................................................................
........................................................................................................
..................................................................................................
...................................................................................................
.............................................................................................................
..................................................................................................
........................................................................................
........................................................................................................
...........................................................................................................
..........................................................................................................
........................................................................................................
........................................................................................................
....................................................................................................
....................................................................................................
..........................................................................................
Copyright © 2012, Texas Instruments Incorporated
TPS2378 EVM User's Guide
Contents
......................................................................
List of Figures
List of Tables
.............................................................
User's Guide
SLVU682 - March 2012
TPS2378 EVM User's Guide
2
2
2
2
3
4
5
5
5
6
6
9
9
10
4
6
6
7
7
8
8
9
2
5
5
5
10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS2378 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPS2378

  • Page 1: Table Of Contents

    User's Guide SLVU682 – March 2012 TPS2378 EVM User’s Guide This User’s Guide describes the evaluation module (EVM) for the TPS2378 (TPS2378EVM-105). TPS2378 is an IEEE802.3at type 2 compliant powered device (PD) controller. Contents ........................Introduction ......................Features ......................Applications ..................
  • Page 2: Introduction

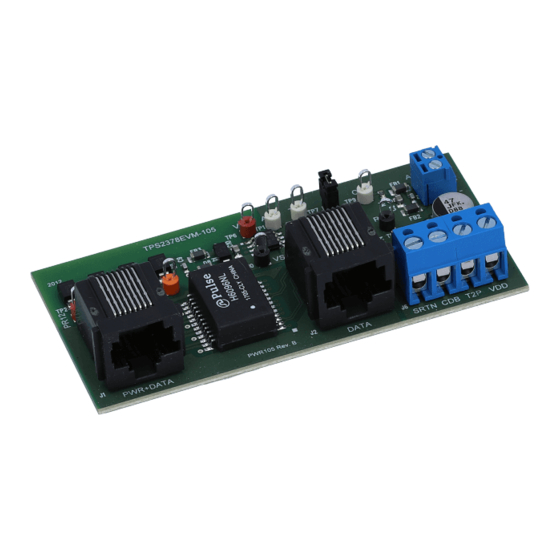

    Introduction The TPS2378EVM allows reference circuit evaluation of the TI TPS2378 PD controller. The TPS2378 features an auxiliary power detect (APD) input, providing priority for an external power adapter. It also features a 100 V pass transistor, 140 mA inrush current limiting, type-2 indication, auto-retry fault protection, and an open-drain power-good output.
  • Page 3: Description

    4 signature resistance to the PSE. To the right of the TPS2378 (U1) is the switched side of the PD controller. The TPS2378 RTN pin provides inrush limited turn on and charge of the bulk capacitor, C4. During inrush, the TPS2378 CDB pin is pulled low (with respect to the RTN pin).
  • Page 4: Schematic

    TP11 1000pF BZT52C18V IRFL4310 B2100 NOTES NOT USED a. Use for switched RTN b. Use to "OR" second TPS2378 Figure 1. TPS2378EVM Schematic TPS2378 EVM User’s Guide SLVU682 – March 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 5: General Configuration And Description

    Output connector to load. Connect pin #4 (VDD) to positive input and pin #1 (RTN) to low side of load. Pin #2 (CDB) can be used to inhibit the converter while the TPS2378 output is ramping up. Pin #3 (T2P) can be used to notify the load of when high power source is present.
  • Page 6: Evm Assembly Drawings And Layout Guidelines

    EVM Assembly Drawings and Layout Guidelines PC Drawings The following figures show component placement and layout of the EVM. Figure 3. Top Side Placement TPS2378 EVM User’s Guide SLVU682 – March 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 7: Top Side Routing

    EVM Assembly Drawings and Layout Guidelines www.ti.com Figure 4. Top Side Routing Figure 5. Layer Two Routing SLVU682 – March 2012 TPS2378 EVM User’s Guide Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 8: Layer Three Routing

    EVM Assembly Drawings and Layout Guidelines www.ti.com Figure 6. Layer Three Routing Figure 7. Bottom Side Routing TPS2378 EVM User’s Guide SLVU682 – March 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 9: Layout Guidelines

    Spacing consistent with safety standards like IEC60950 must be observed between the 48-V input voltage rails and between the input and an isolated converter output. • The TPS2378 should be located over split, local ground planes referenced to VSS for the PoE input and to RTN for the switched output. •...
  • Page 10: Bill Of Materials

    IC, IEEE 802.3at PoE High Power PD Controller TPS2378DDA TPS2378DDA IRFL4310 MOSFET, N-ch, 100V, 200-milliOhms SOT223 IRFL4310TRPBF Wurth 749022011 749022011 Electronics PoE Plus Gigabit Ethernet Transfomer S024 H6096NL H6096NL Pulse TPS2378 EVM User’s Guide SLVU682 – March 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
