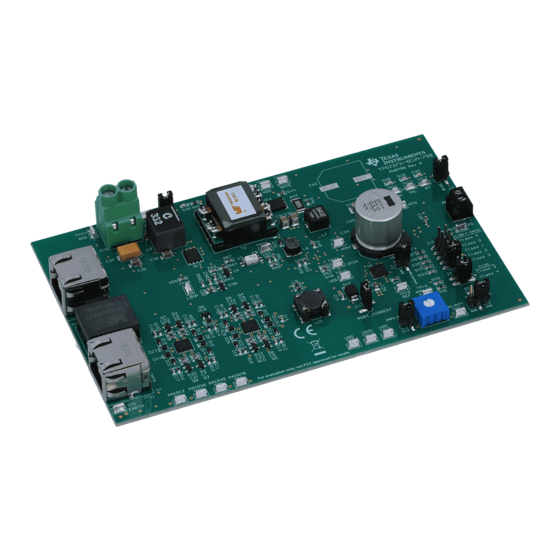

This user's guide describes the TPS2373-4 evaluation module (TPS2373-4EVM-758). The TPS2373-
4EVM-758 contains evaluation and reference circuitry for the TPS2373-4. The TPS2373-4 device is an
IEEE 802.3bt-compliant, powered-device (PD) controller optimized for isolated converter topologies. The
TPS2373-4EVM-758 is designed for high-efficiency, 70-W, PD solutions.
...................................................................................................................
1
Introduction
2
Electrical Specifications
....................................................................................................................
3
Description
.....................................................................................................................
4
Schematic
5
General Configuration and Description
6
TPS237xEVM-758 Performance Data
7
EVM Assembly Drawings and Layout Guidelines
8
Bill of Material
1
TPS2373-4EVM-758 PD Front-End Schematic
2
TPS2373-4EVM-758 PD and DC/DC Converter Schematic
3
Startup Response to Full Load (14 A) for a 48-V Input
4
Transient Response from 7 A to 14 A for a 48-V Input
5
Efficiency of the TPS2373-4EVM-758, V
6
Top Side Component Placement
7
Top Side Routing
8
Layer 2 Routing
9
Layer 3 Routing
10
Bottom Side Routing
11
Bottom Component Placement
1
TPS2373-4EVM-758 Electrical and Performance Specifications at 25°C
2
Connector Functionality
....................................................................................................................
3
Test Points
4
Jumper Descriptions
5
TPS237xEVM-758 BOM
Trademarks
All trademarks are the property of their respective owners.
SLUUBJ1A – February 2017 – Revised June 2017
Submit Documentation Feedback
TPS2373-4EVM-758 Evaluation Module
.....................................................................................................
...................................................................................
....................................................................................
...............................................................................................................
= 48 V
IN
..........................................................................................
...........................................................................................................
.............................................................................................................
.............................................................................................................
.......................................................................................................
...........................................................................................
.....................................................................................................
.........................................................................................................
..................................................................................................
Copyright © 2017, Texas Instruments Incorporated
SLUUBJ1A – February 2017 – Revised June 2017
Contents
.......................................................................
List of Figures
..........................................................................
...........................................................
.................................................................
.................................................................
.......................................................................
List of Tables
............................................
TPS2373-4EVM-758 Evaluation Module
User's Guide
2
2
3
4
6
8
9
14
4
5
8
8
9
9
10
10
11
11
12
2
6
6
7
14
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS2373-4EVM-758 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TPS2373-4EVM-758

Summary of Contents for Texas Instruments TPS2373-4EVM-758

  • Page 1 SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module This user’s guide describes the TPS2373-4 evaluation module (TPS2373-4EVM-758). The TPS2373- 4EVM-758 contains evaluation and reference circuitry for the TPS2373-4. The TPS2373-4 device is an IEEE 802.3bt-compliant, powered-device (PD) controller optimized for isolated converter topologies. The TPS2373-4EVM-758 is designed for high-efficiency, 70-W, PD solutions.

  • Page 2: Sluubj1A – February 2017 – Revised June

    Introduction www.ti.com Introduction The TPS2373-4EVM-758 allows reference circuitry evaluation of the TPS2373-4. It contains input and output power connectors and an array of on-board test points for circuit evaluation. Features The TPS2373-4EVM-758 features include: • High-efficiency active clamp-forward converter •...

  • Page 3: Description

    Description www.ti.com Description The TPS2373-4EVM-758 enables full evaluation of the TPS2373-4 device. Refer to the schematic shown Figure 1 Figure 2. Ethernet power is applied from J1 and is dropped to the FET bridge rectifier. At the output of the FET bridge is the EMI and EMC filter and transient protection for the TPS2373-4.

  • Page 4: Schematic

    301k 1000pF 8.2V 8.2V 8.2V 8.2V Q11D Q11A Copyright © 2017, Texas Instruments Incorporated Figure 1. TPS2373-4EVM-758 PD Front-End Schematic TPS2373-4EVM-758 Evaluation Module SLUUBJ1A – February 2017 – Revised June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 5: Tps2373-4Evm-758 Pd And Dc/Dc Converter Schematic

    R64 = 3.01k for 5.3V Output 3.16k R64 = 2.87k for 5.5V Output Copyright © 2017, Texas Instruments Incorporated Figure 2. TPS2373-4EVM-758 PD and DC/DC Converter Schematic SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module Submit Documentation Feedback...

  • Page 6: General Configuration And Description

    Feedback connection for frequency response measurements TP29 UVLO_SEL Select UVLO of U1 (open circuited) TP30 VCOUT Output voltage of advanced startup of U1 TPS2373-4EVM-758 Evaluation Module SLUUBJ1A – February 2017 – Revised June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 7: Jumper Descriptions

    Can be used to measure port current; otherwise, J11 should be shorted Jump to add auto MPS current Jump to power output LED SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 8: Tps237Xevm-758 Performance Data

    TPS237xEVM-758 Performance Data www.ti.com TPS237xEVM-758 Performance Data Startup Figure 3 illustrates the startup response of the TPS2373-4EVM-758. Figure 3. Startup Response to Full Load (14 A) for a 48-V Input Transient Response Figure 4 illustrates the transient response of the TPS2373-4EVM-758.

  • Page 9: Evm Assembly Drawings And Layout Guidelines

    This section contains the assembly drawings and layout guidelines. PCB Drawings Figure 6 through Figure 11 show component placement and layout of the TPS2373-4EVM-758. Figure 6. Top Side Component Placement SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module Submit Documentation Feedback...

  • Page 10: Top Side Routing

    EVM Assembly Drawings and Layout Guidelines www.ti.com Figure 7. Top Side Routing Figure 8. Layer 2 Routing TPS2373-4EVM-758 Evaluation Module SLUUBJ1A – February 2017 – Revised June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 11: Layer 3 Routing

    EVM Assembly Drawings and Layout Guidelines www.ti.com Figure 9. Layer 3 Routing Figure 10. Bottom Side Routing SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 12: Bottom Component Placement

    Keep the high-current and high-voltage switching away from low-level sensing circuits including those outside the power supply. • Use proper spacing around the high-voltage sections of the converter. TPS2373-4EVM-758 Evaluation Module SLUUBJ1A – February 2017 – Revised June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 13 • Possible use of integrated RJ-45 jacks (shielded with internal transformer and Bob Smith terminations). • End-product enclosure considerations (shielding). SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 14: Bill Of Material

    D13, D14, D15, D16, D18, D19, 100V Diode, Switching, 100V, 0.2A, SOD-323 SOD-323 MMDL914-TP Micro D20, D21, D22 Commercial Components TPS2373-4EVM-758 Evaluation Module SLUUBJ1A – February 2017 – Revised June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 15 MOSFET, N-CH, 40V, 100A, SON 5x6mm SON 5x6mm CSD18502Q5B Texas None Instruments 150V MOSFET, N-CH, 150V, 35A, PQFN08A PQFN08A FDMS86200 Fairchild None Semiconductor SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 16 RES, 2.00 k, 1%, 0.1 W, 0603 0603 CRCW06032K00FKEA Vishay-Dale 20.0k RES, 20.0 k, 1%, 0.1 W, 0603 0603 CRCW060320K0FKEA Vishay-Dale TPS2373-4EVM-758 Evaluation Module SLUUBJ1A – February 2017 – Revised June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 17 Notes: Unless otherwise noted in the Alternate Part Number and/or Alternate Manufacturer columns, all parts may be substituted with equivalents. SLUUBJ1A – February 2017 – Revised June 2017 TPS2373-4EVM-758 Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 18: Revision History

    Changes from Original (February 2017) to A Revision ....................Page • Changed TPS2373-4EVM-758 PD front-end schematic and TPS2373-4EVM-758 pd and DC/DC converter schematic. Revision History SLUUBJ1A – February 2017 – Revised June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
