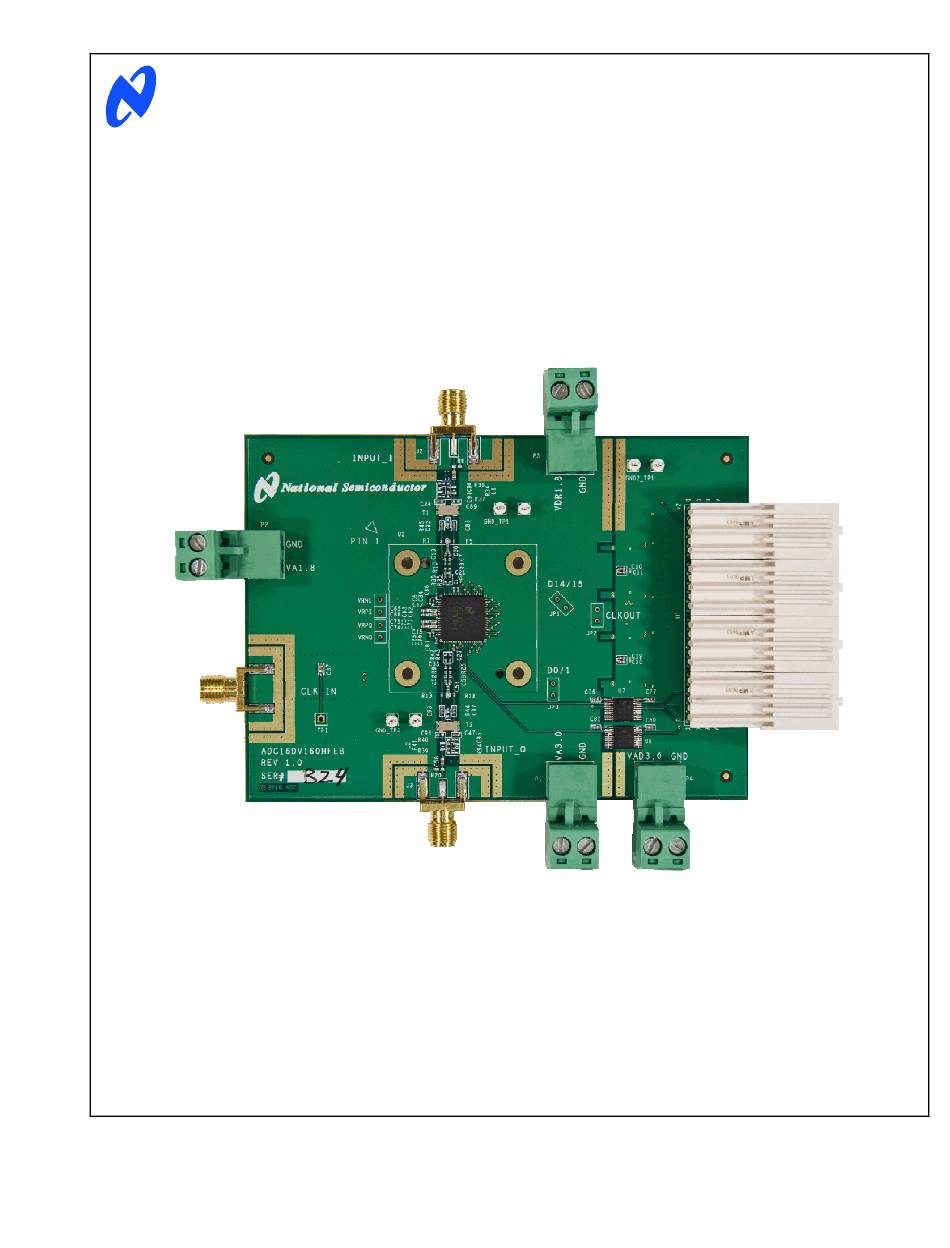

- Page 1 June 16, 2010 Rev 1.0 National Semiconductor ADC16DV160HFEB Evaluation Board User’s Guide ADC16DV160 Dual 16-Bit, 160 MSPS A/D Converter © 2009 National Semiconductor Corporation. http://www.national.com...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ............................3 2.0 Board Assembly ........................... 3 3.0 Quick Start ............................4 4.0 Functional Description ......................... 4 4.1 Analog Input .......................... 4 4.2 ADC reference circuitry ......................4 4.3 ADC clock circuit ........................5 4.4 Power Supply Connections ....................5 5.0 Installing the ADC16DV160 Evaluation Board .................. -
Page 3: Introduction
1.0 Introduction latest WaveVision software is available through the This Evaluation Board may be used to evaluate the National Semiconductor website: ADC16DV160. The ADC is a dual 16 bit analog to digital http://www.national.com/analog/adc/wavevision5 converters that provides data at rates of up to 160 MHz. -
Page 4: Quick Start
Evaluation Board. The latest WaveVision software is available through the For best results, also attach a 3dB 50 ohm National Semiconductor website: attenuator right at the input SMA of the eval board. http://www.national.com/analog/adc/wavevision5. -
Page 5: Adc Clock Circuit
This Evaluation Board is configured to use the internal reference. 4.3 ADC clock circuit Care must be taken to provide a high quality low jitter clock source. The board is configured to accept a single ended sinusoidal. It converts the sine wave to a differential signal through transformer T4. -
Page 6: Hardware Schematic
VA1.8 GND_TP1 GND_TP4 SDIO VDR1.8 VAD3.0 VDR1.8 National Semiconductor VAD3.0 GND_3 0.1u 10uF GND2_TP1 GND2_TP2 Title GND_4 0.1u GND1 10uF ADC16DV160HFEB Evaluation Board GND2 GND3 VAD3.0 Size Document Number SN74AVC8T245 GND2 GND2 GND2 Date: Wednesday, May 19, 2010 Sheet http://www.national.com... -
Page 7: Evaluation Board Layout
7.0 Evaluation Board Layout Layer 1: Component Side Layer 2: Ground http://www.national.com... - Page 8 Layer 3: Power Layer 4: Ground, Clock http://www.national.com...
- Page 9 Layer 5: Ground Layer 6: Circuit Side http://www.national.com...
-
Page 10: Evaluation Board Bill Of Materials
R12,R14 Yageo RC0603JR-070RL R21,R22 Panasonic - ECG ERJ-3EKF10R0V R31,R33 Panasonic - ECG ERJ-2RKF1000X T1,T2 BD0205F5050A00 Anaren BD0205F5050A00 ADT1_1WT Mini-Circuits ADT1-1WT+ ADC16DV160 National Semiconductor ADC16DV160 24C02-SO8 Atmel AT24HC02BN-SH-B U4,U5 FIN1108MTD Fairchild FIN1108MTD FIN1101K8X Fairchild FIN1101K8X U7,U8 SN74AVC8T245 Texas Instuments SN74AVC8T245DGVR http://www.national.com... - Page 11 European EMC Directive 89/336/EEC, or for compliance with any other electromagnetic compatibility requirements. National Semiconductor Corporation does not assume any responsibility for use of any circuitry or software supplied or described. No circuit patent licenses are implied.
