June 2009
Rev 0.9
National Semiconductor
Evaluation Board User's Guide
ADC10DV200, 10-Bit, 200 Msps A/D Converter
ADC11DV200, 11-Bit, 200 Msps A/D Converter
© 2009 National Semiconductor Corporation.
http://www.national.com
1

Advertisement

Table of Contents
loading

Related Manuals for National Semiconductor ADC10DV200

Summary of Contents for National Semiconductor ADC10DV200

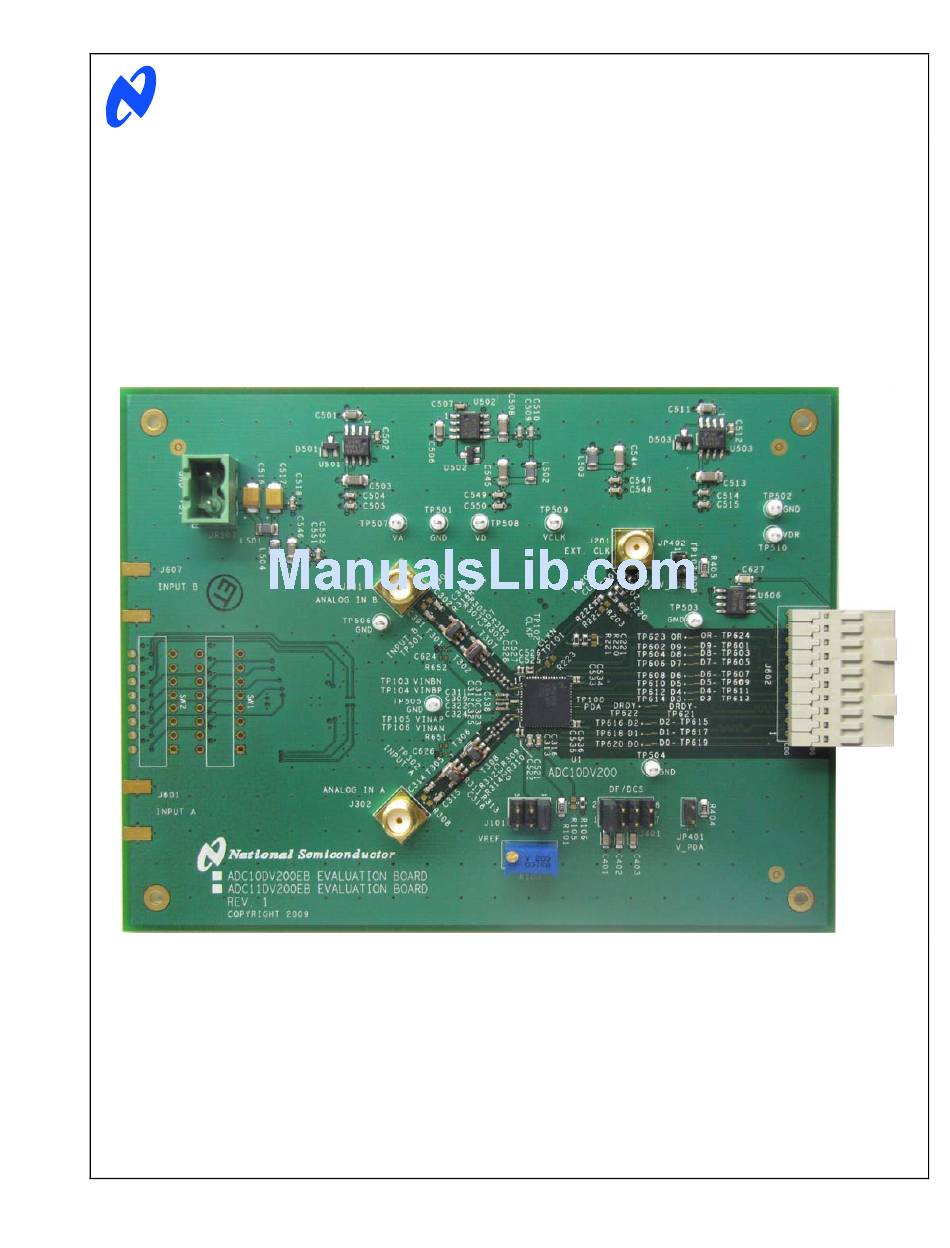

  • Page 1 June 2009 Rev 0.9 National Semiconductor Evaluation Board User’s Guide ADC10DV200, 10-Bit, 200 Msps A/D Converter ADC11DV200, 11-Bit, 200 Msps A/D Converter © 2009 National Semiconductor Corporation. http://www.national.com...

  • Page 2: Table Of Contents

    4.4 Digital Data Output ....................... 5 4.5 Data Format/ Duty Cycle Stabilizer ..................5 4.6 Power Supply Connections ....................5 5.0 Installing the ADC10DV200 Evaluation Board .................. 5 6.0 Hardware Schematic..........................6 7.0 Evaluation Board Layout........................12 8.0 Evaluation Board Bill of Materials...................... 15 A1.0 Operating in the Computer Mode .....................

  • Page 3: Introduction

    10 and 11 bit converters that provides data at http://www.national.com/store/view_item/index.html?nsid= rates of up to 200MHz. Further reference in this manual WAVEVSN+BRD+5.1 to the ADC10DV200 is meant to also include the other listed parts unless otherwise specified 2.0 Board Assembly The ADC10DV200 Evaluation Board comes pre- The evaluation board is designed to be used with the assembled.

  • Page 4: Quick Start

    4.0 Functional Description Refer to Figure 1 for locations of jumpers, test points and The ADC10DV200 Evaluation Board schematic is shown major components. Refer to Figure 2 for the test set up. in Section 6. A list of test points and jumper settings can The board is configured by default to use a external clock be found in the Appendix.

  • Page 5: Adc Reference Circuitry

    If this board is used in conjunction with the 4.2 ADC reference circuitry WaveVision5™ Data Capture Board and WaveVision5™ The ADC10DV200 can use an internal or external voltage software, a USB must be connected between the Data reference. The internal reference is selectable between a Capture Board Board and the host.

  • Page 6: Hardware Schematic

    6.0 Hardware Schematic http://www.national.com...
  • Page 7 http://www.national.com...
  • Page 8 http://www.national.com...
  • Page 9 http://www.national.com...
  • Page 10 http://www.national.com...
  • Page 11 http://www.national.com...

  • Page 12: Evaluation Board Layout

    7.0 Evaluation Board Layout Layer 1 : Component Side Layer 2 : Ground http://www.national.com...
  • Page 13 Layer 3 : Ground Layer 4 : Power http://www.national.com...
  • Page 14 Layer 5 : Ground Layer 6 : Circuit Side http://www.national.com...

  • Page 15: Evaluation Board Bill Of Materials

    8.0 Evaluation Board Bill of Materials Item Reference Part Part Number Vendor ______________________________________________ C201,C220, .1uF PCC1762CT Digi-Key C301,C302,C313,C314, C315,C316,C504,C509,C514, C518,C547,C549,C551 C305,C309,C311, .1uF 490-1318-1 Digi-Key C312,C318,C322,C324,C325, C218,C502,C505,C507,C510, .01uF PCC1784CT Digi-Key C512,C515,C548,C550,C552 C219 PCC2224CT Digi-Key C307,C320 27pF PCC270CQCT Digi-Key C310,C323 .1uF PCC2336CT Digi-Key C401,C402,C403,C627 .1uF...
  • Page 16 TP505,TP506 TP507 5002K Digi-Key TP508 5002K Digi-Key TP509 VCLK 5002K Digi-Key TP510 5002K Digi-Key T301,T305,T302,T306 ETC1-1-13 ETC1-1-13 Richardson ADC10DV200 (or ADC10DV200CISQ or ADC11DV200) ADC11DV200CISQ U203 NC7SV125 NC7SV125P5X Mouser U501,U502,U503 LP2989LV-1.8 LP2989AIM-1.8 Digi-Keys U606 24C02/SO8 511-M24C02-WMN6P Mouser DO NOT POPULATE U201...

  • Page 17: A1.0 Operating In The Computer Mode

    APPENDIX A1.0 Operating in the Computer Mode The ADC10DV200 Evaluation Board is compatible with the WaveVision5™ Data Capture Board and WaveVision5™ software. You can download the latest version from: http://www.national.com/analog/adc/wavevision5 When connected to the WaveVision5™ Board, data capture is easily controlled from a personal computer operating in the Windows environment.

  • Page 18: A2.4 Clock Circuit Solder Jumper Settings

    A2.4 Clock Circuit Solder Jumper settings Components can be installed or removed to select the path of the clock to the ADC. While not as convenient as pin-type jumpers, these introduce less distortion into the clock signal. Termination A: Differential Sinusoid Install C210, C216, and C217 Remove R223, R224, R225, and JP204 Termination B: Single Ended Sinusoid...
  • Page 19 PURCHASE PRICE PAID, IF ANY. The ADC10DV200 Evaluation Boards are intended for product evaluation purposes only and are not intended for resale to end consumers, is not authorized for such use and is not designed for compliance with European EMC Directive 89/336/EEC, or for compliance with any other electromagnetic compatibility requirements.
  • Page 20 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
  • Page 21 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments ADC10DV200EB/NOPB...
