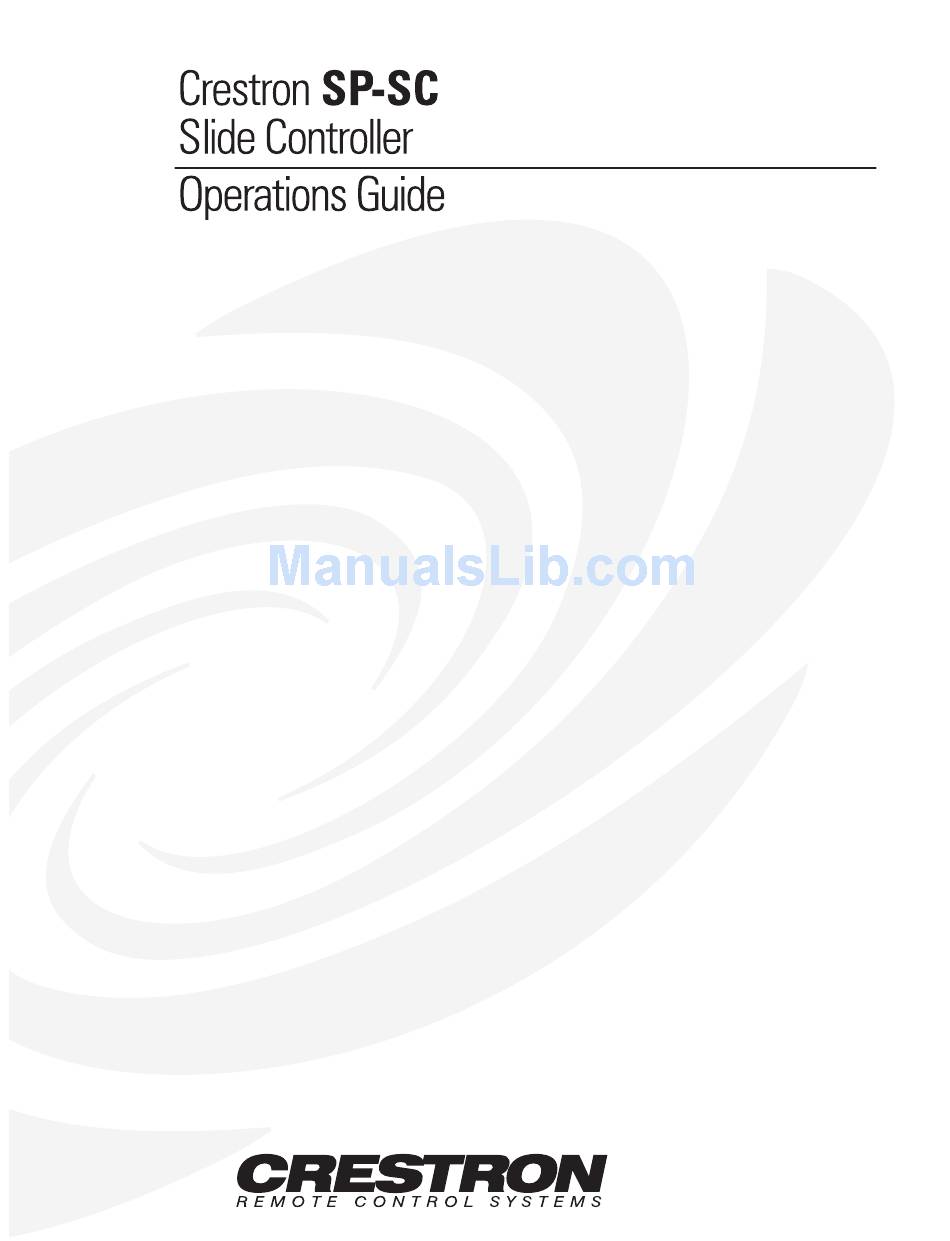

Crestron SP-SC Operation Manual
  1. Manuals
  2. Brands
  3. Crestron Manuals
  4. Controller
  5. SP-SC
  6. Operation manual
Crestron SP-SC Operation Manual

Crestron SP-SC Operation Manual

Slide controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-SC and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron SP-SC

Summary of Contents for Crestron SP-SC

  • Page 3: Table Of Contents

    Contents Slide Controller: SP-SC Description Functional Description Physical Description Specifications Setup SP-SC with SmartPresenter™ SP-SC with SmarTouch™ ST-CP SP-SC with CNMSX Programming SmartPresenter™ SP-1 SmarTouch™ ST-CP CNMSX Problem Solving Troubleshooting Further Inquiries Return and Warranty Policies Merchandise Returns / Repair Service CRESTRON Limited Warranty Operations Guide - DOC.

  • Page 5: Slide Controller: Sp-Sc

    SmartPresenter, Smartouch ST-CP, and CNMSX systems. Physical Description The SP-SC is a small unit with a permanently attached 6 ft. (183 cm) projector cable. The projector cable is equipped with an EBY, pickle type connector. A 3ft. (91 cm) Serial Data Cable is supplied for connection to the SmartPresenter or the SmarTouch ST-CP systems.

  • Page 6: Specifications

    Specifications Dimensions: Weight: Projector Cable: Serial Data Cable¹: Serial Data Cable²: 12v DC Power Supply*: Crestron p/n PW-1205 Software: ¹ For SmartPresenter and SmarTouch ST-CP (supplied) ² Required for use with CNMSX (Sold separately) Required for use with SmarTouch ST-CP and CNMSX (sold separately)

  • Page 7: Setup

    Setup SP-SC with SmartPresenter Connect the 3.5 mm, Serial Data Cable (supplied) to the input port on the SP-SC. Connect the other end of the cable to one of the outputs on the SP-1. The EBY, five- pin, pickle type connector should be plugged into the projector.

  • Page 8: Sp-Sc With Smartouch™ St-Cp

    SP-SC with SmarTouch Connect the 3.5 mm, Serial Data Cable (supplied) to the input port on the SP-SC. Connect the other end of the cable to one of the outputs on the ST-CP. The EBY, five-pin, pickle type connector should be plugged into the projector.

  • Page 9: Sp-Sc With Cnmsx

    When used with a CNMSX there are additional hardware requirements. Connect the stereo plug of the CNSP-112 into the input port of the SP-SC. Connect the Phoenix type connector to of the CNSP-112 to one of the Infrared – Serial output ports on the CNMSX.

  • Page 10: Programming

    SC). Feedback is provided to alert the touchpanel user that a button is, in fact, being pressed. The IR Device represents the driver for the SP-SC. This SP-SC driver can be located in the Crestron Database (version 11.7.207 or later), under Slide Controllers.

  • Page 11: Problem Solving

    Troubleshooting Further Inquiries If after reviewing this Operations Guide, you cannot locate specific information or have questions, please take advantage of Crestron's award winning technical support team by calling: For local support from exclusive Crestron factory trained personnel call: Operations Guide - DOC. 5729...

  • Page 12: Return And Warranty Policies

    (3) years from the date of shipment to purchaser. Disk drives and any other moving or rotating mechanical parts are covered for a period of one (1) year. CRESTRON warrants all its other products for a period of one year from the defects mentioned above, excluding touchscreen display components which are covered for 90 days.
