Summary of Contents for Crestron CNIRHT-15
-
Page 3: Table Of Contents
CRESTRON CNRFHT-15/30 & CNIRHT-15/30 DESCRIPTION... Functional Description... CNRFHT-15/30... CNIRHT-15/30 ... Sleep Mode ... Physical Description... Configuration Differences ... LEADING SPECIFICATIONS ... CONTROLS AND INDICATORS... Controls ... Indicators... INSTALLATION/SETUP... Identity Code ... RF Receiver/Transmitter Tuning... RF Receiver... RF Transmitter ... PROGRAMMING ... -
Page 5: Description

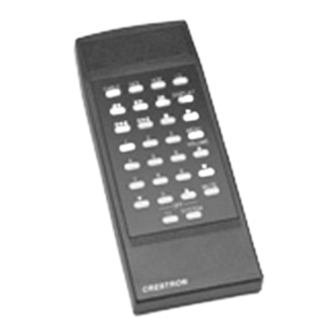

CRESTRON CNRFHT-15/30 & CNIRHT-15/30 POWER CHANNEL CRESTRON CNRFHT Figure 1. CRESTRON Hand-held Wireless Transmitters DESCRIPTION: Functional Description CNRFHT-15/30: The CNRFHT, illustrated in figure 1, is a hand-held radio-frequency (RF) transmitter. The unit is designed to operate with the CRESNET II remote control system (herein referred to as the CRESNET II system) via a RF wireless receiver, CNRFGW Wireless Gateway. -
Page 6: Physical Description
Physical Description NOTE CRESTRON does not recommend designing large button caps for single functions. Depressing the center of a large button cap can cause the unit to transmit incorrectly which may result in the control system misinterpreting the user's intent. Therefore, design large button caps for dual functions, such as a volume up/volume down rocker-type button. -
Page 7: Configuration Differences
CRESTRON CNRFHT-15/30 & CNIRHT-15/30 A nine-volt battery is included with all units. Access to the battery is permitted after the battery cover, located on the underside of the unit, is removed. Configuration Differences The CNRFHT and CNIRHT each have two different configurations which are depicted in table 1. -
Page 8: Installation/Setup
CRESTRON CNRFHT-15/30 & CNIRHT-15/30 INSTALLATION/SETUP: Identity Code Every hand-held wireless transmitter communicating with either the CNRFGW or CNIRGW requires a unique identity code (ID CODE). For RF devices the ID CODE is referred to as RF ID. For IR devices the ID CODE is referred to as IR ID. - Page 9 CRESTRON CNRFHT-15/30 & CNIRHT-15/30 6. Refer to table 3 and translate the ID CODE two-digit hexadecimal number or letter into an eight-digit SIP switch code. NOTES 1. The ID CODE of the unit is factory set to 20. This hexadecimal setting corresponds to an eight-digit SIP switch code of 00000100, with respect to SIP switches 1 through 8.
-
Page 10: Rf Receiver/Transmitter Tuning
CRESTRON CNRFHT-15/30 & CNIRHT-15/30 RF Receiver/Transmitter Tuning NOTE The following installation instructions are for the CNRFHT only. The CNRFHT and CNRFGW are factory tuned and normally do not require tuning. However, in some cases it may be necessary to tune the CNRFHT transmitter for the CNRFGW to receive signals properly. Complete the following steps to tune the transmitter and receiver. -
Page 11: Programming
CRESTRON CNRFHT-15/30 & CNIRHT-15/30 6. Once the frequency is located, it may be necessary to fine tune the device by slowly turning the tuning tool in either direction, until the red LED marked SIGNAL is brightly illuminating. The LED must be at its brightest setting to confirm the unit is tuned to the highest lobe of the frequency range. - Page 12 CRESTRON CNRFHT-15/30 & CNIRHT-15/30 System PF: 4.5 Net ID TAB to select entries F2-Detail ESC to Def Equip Net ID: 03 RF ID F2-Detail ESC to Define Rack R E M O T E C O N T R O L...
- Page 13 CRESTRON CNRFHT-15/30 & CNIRHT-15/30 RF ID F2-Detail ESC to Define Net RF ID F2-Detail ESC to Define Net R E M O T E C O N T R O L S Y S T E M S CNRFGW CNRFHT...
-
Page 14: Testing/Troubleshooting
CRESTRON CNRFHT-15/30 & CNIRHT-15/30 TEST/TROUBLESHOOTING: Table 4 provides corrective action for possible trouble situations. If further assistance is required, please contact a CRESTRON technical support representative. TROUBLE LED on unit does not No battery in unit or battery is dead. -
Page 15: Syntax
CRESTRON CNRFHT-15/30 & CNIRHT-15/30 SYNTAX: The following syntax codes are provided for compatibility purposes only. NOTE The CNRFHT and CNIRHT units are defined as CNRFT in SIMPL-C. NET.ID < 03 to FE > : CNRFGW TRANSMITTER < RF IDCODE > : CNRFT i1 = <signal name>...
