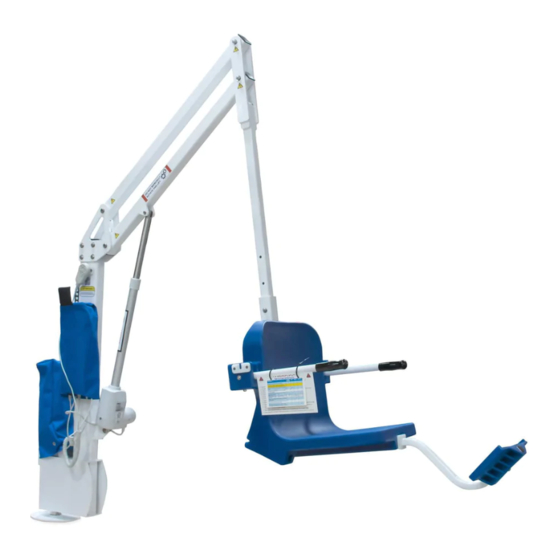

Scout Excel
Pool Lift
PART #: F-SCTXL
US PATENT NUMBER: [D507,769 S]
375 LB. [170 kg] MAXIMUM WEIGHT CAPACITY
FOR INDOOR OR OUTDOOR USE
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
ADA COMPLIANT
READ CAREFULLY
Check entire box and inside all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical all parts be carefully inspected by the installer prior to installation to ensure no
damage occurred in transit and a damaged part is not used. If any damage occurred in transit,
Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek's
warranty and may aff ect the safety of the user.
1
Copyright © 2020 Aqua Creek Products All Rights Reserved
Revised 4/20/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scout Excel F-SCTXL and is the answer not in the manual?

Questions and answers

Related Manuals for Aqua Creek Products Scout Excel F-SCTXL

Summary of Contents for Aqua Creek Products Scout Excel F-SCTXL

  • Page 1 If any damage occurred in transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may aff ect the safety of the user. Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...
  • Page 2 REDUCE THE RISK OF DROWNING! Supervise children at all times. No jumping or diving from the lift. Seat may be hot, use caution when entering. Keep covered when not in use. Inspect and clean before use. INDOOR BATTERY CHARGER: AMPERAGE = 0.65 FREQUENCY = 60 24 VOLT BATTERY AMPERAGE = 8 IP RATING = IPX5 Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...

  • Page 3: Table Of Contents

    Scout Excel Lift Assembly Instructions Warranty Footrest Installation Instructions Scout Excel Components 1. THE SCOUT EXCEL LIFT MAIN ASSEMBLY 2. CONTROL ARM 3. LIFTING ARM 4. ADJUSTABLE SEAT ARM 5. FOOTREST 6. ACTUATOR 7. HANDSET 8. 24V BATTERY Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...
  • Page 4 NEC Section 680 and/or local code requirements. 75.5" 71" 48" ADA CLEAR 36" DECK SPACE 12" 31" (MIN) 19" (MIN) 35" (MAX) DECK POOL WALL WATER FIGURE 1 Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...

  • Page 5: Anchor Installation: Core-Drill Retro-Fit

    Remove plug and clean out the holes with a wire brush. Insert an air nozzle to the bottom of the hole. Use a pump or compressed air to blow out the hole. A heat-gun may be helpful in drying out the hole. continued on page 6 Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...
  • Page 6 Adjust the hole as needed. NOTE: Pool decks with pavers or thick tiles may require other anchor options. Contact Aqua Creek Products. Inject epoxy adhesive into each hole starting at the bottom until the hole is 1/3 to 1/2 full.

  • Page 7: Anchor Installation: Saw-Cut Retro-Fit

    FIGURE C 8-AWG SOLID COPPER WIRE (TO BONDING GRID) 1" X 4" PVC FIXING ANCHOR BONDING LUG: BOND PER LOCAL CODE FIGURE B 2.19 O.D. X 6" BRONZE ANCHOR ASSEMBLY Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...

  • Page 8: Scout Excel Lift Assembly Instructions

    NOTE: The LIFTING ARM is easily fl ipped around the wrong way. Make sure the end Over-tightening can cause damage and compromise the safety of your lift. marked “B” is towards the mast, as shown. Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...
  • Page 9 FIGURE F cable. The lift will only operate when the battery is connected properly. WHEN LIFT IS NOT IN SERVICE, STORE BATTERY ON THE CHARGER! PHOTO 4 PHOTO 5 Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...
  • Page 10 5/16" X 4 1/2" HEX BOLT 5/16" NYLOCK 5/16" FLAT WASHER CHAIR ARM 5/16" FLAT WASHER ADJUSTMENT HOLES IN 4" INCREMENTS (16" ADJ. RANGE) CHAIR ADJUSTED TO LOWEST POSITION FIGURE G Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...
  • Page 11 2. Using the supplied 1/4” hardware, fasten the legrest assembly to the 2 x 2 tubing. FOOTREST ASSEMBLY 1/4" FLAT WASHER 1/4" LOCK WASHER 1/4" X 5/8" THUMB SCREW FOOTREST IN FOOTREST OUT Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...

  • Page 12: Handset

    Note: the lift will not retract if the battery is not fully charged or if the control box is not working. The emergency but- ton only overrides the remote handset. Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...

  • Page 13: Pinch Point Locations

    Pinch Point Locations CAUTION! PINCH POINT AREAS! LIFT TO BE STICKERED ON BOTH SIDES OF ARMS! Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...

  • Page 14: Proper Care Of Pool & Spa Lifts

    To remove stubborn stains from finish, spray affected area with mild dish soap, rub briskly with a 3M Scotch Brite™ pad. Use white epoxy paint to touch up the finish. Apply wax to protect when dry. Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...

  • Page 15: Scout Excel Parts List

    1/2 X 2 3/4 SHOULDER INV01703 SHAFT COLLAR 18-8 BOLT 94751A785 EXT. RETAINING RING BS 1/2 X 3 18-8 1/2 X 3 SHOULDER BOLT 93576A250 SPIRAL EXT. RET. RING K50X55X20H NEEDLE BEARING Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 4/20/20...
