Ethernet Input/Output Module
18 • Ethernet Input/Output Module: CEN-IO
Expand the Ethernet folder and double click on the CEN-IO for a detail view
(alternatively CTRL+D or drag and drop into Detail View). Assign the signal as
shown after this paragraph.

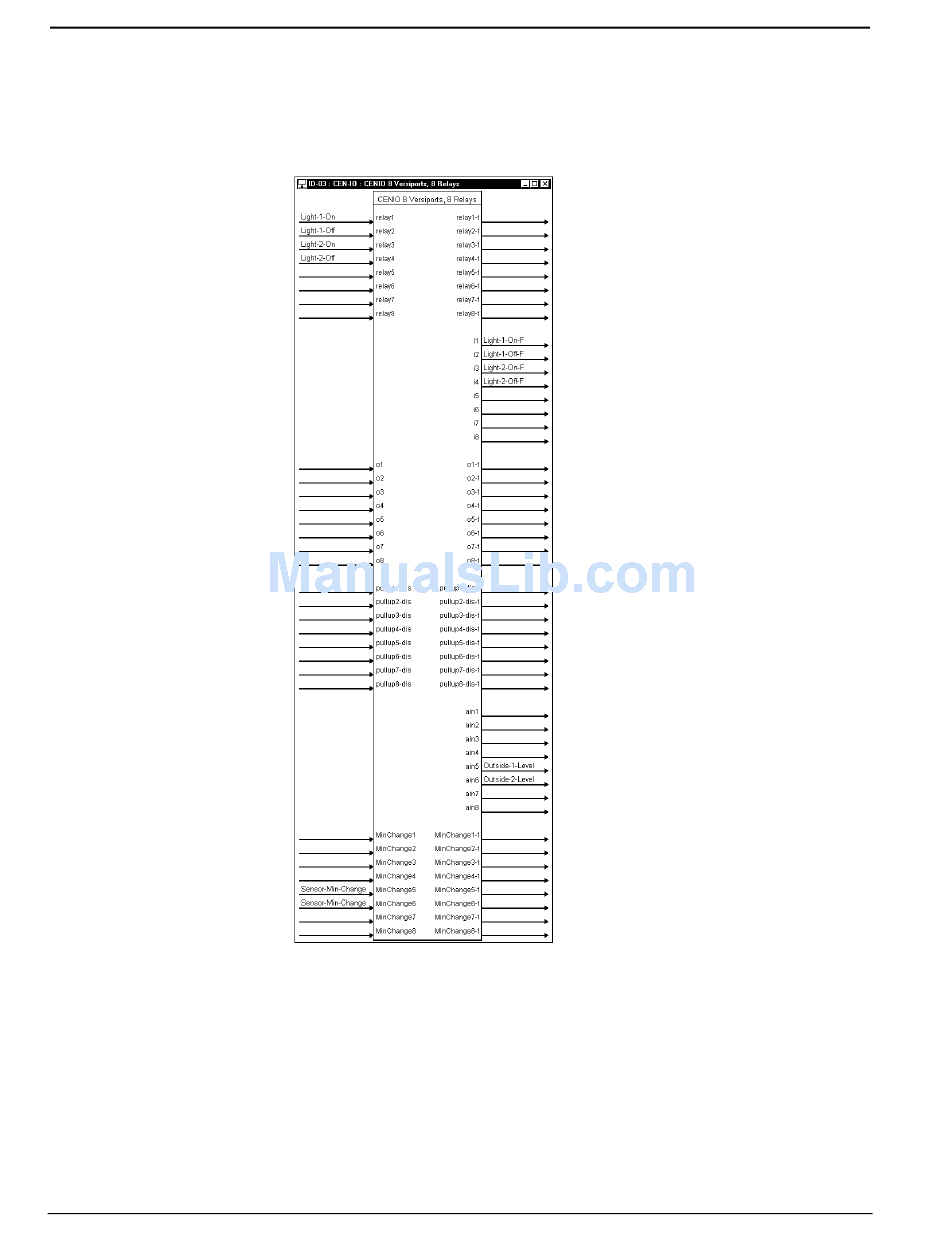

Detail View of the CEN-IO in SIMPL Windows' Programming Manager
All logic symbols necessary for the SIMPL Windows program must be added from
the Symbol Library in the Programming Manager workspace. In this example, drag
and drop two Analog Initialize symbols from the Analog Operations folder, a
Multiple One Shot symbol from the Timers folder, and two Analog Compare and
two OR symbols from the Conditional folder into the Logic folder in Program View.
Expand the Logic folder and double click on symbol icons for a detail view
(alternatively CTRL+D or drag and drop into Detail View). Assign signals as shown
below and on the next page.
