Operations Guide - DOC. 5718

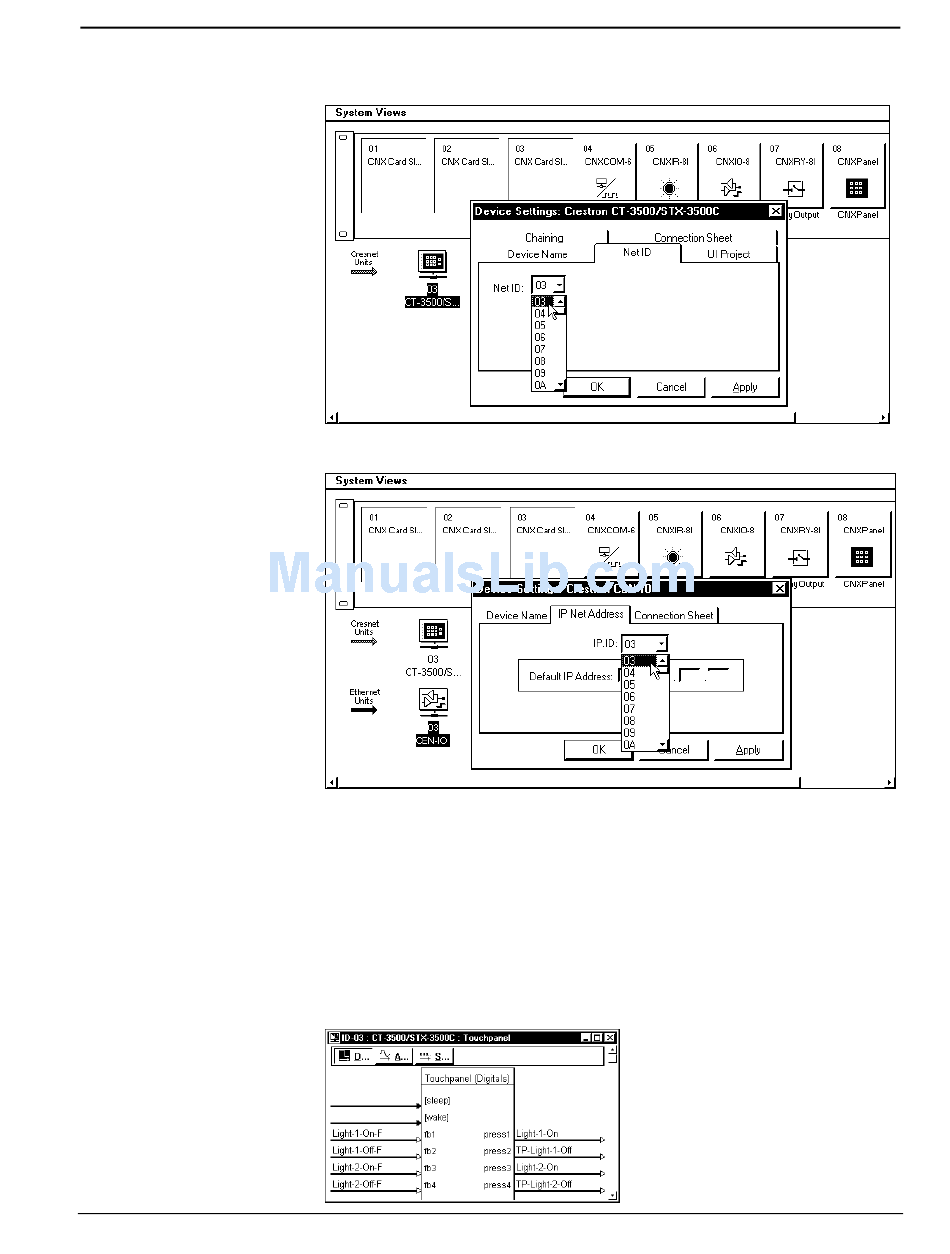

System View of the CT-3500 in SIMPL Windows' Configuration Manager
System View of the CEN-IO in SIMPL Windows' Configuration Manager
Programming Manager
Use the Programming Manager workspace (Project | Program System) in SIMPL
Windows to select symbols and assign their respective signals. For this example, a
touchpanel and CEN-IO symbol were added automatically when the devices were
added to the system in the Configuration Manager workspace. Expand the Network
Modules folder and double click on the CT-3500 for a detail view (alternatively
CTRL+D or drag and drop into Detail View). Assign the signal as shown after this
paragraph.
Detail View of the CT-3500 in SIMPL Windows' Programming Manager
Ethernet Input/Output Module
Ethernet Input/Output Module: CEN-IO • 17
