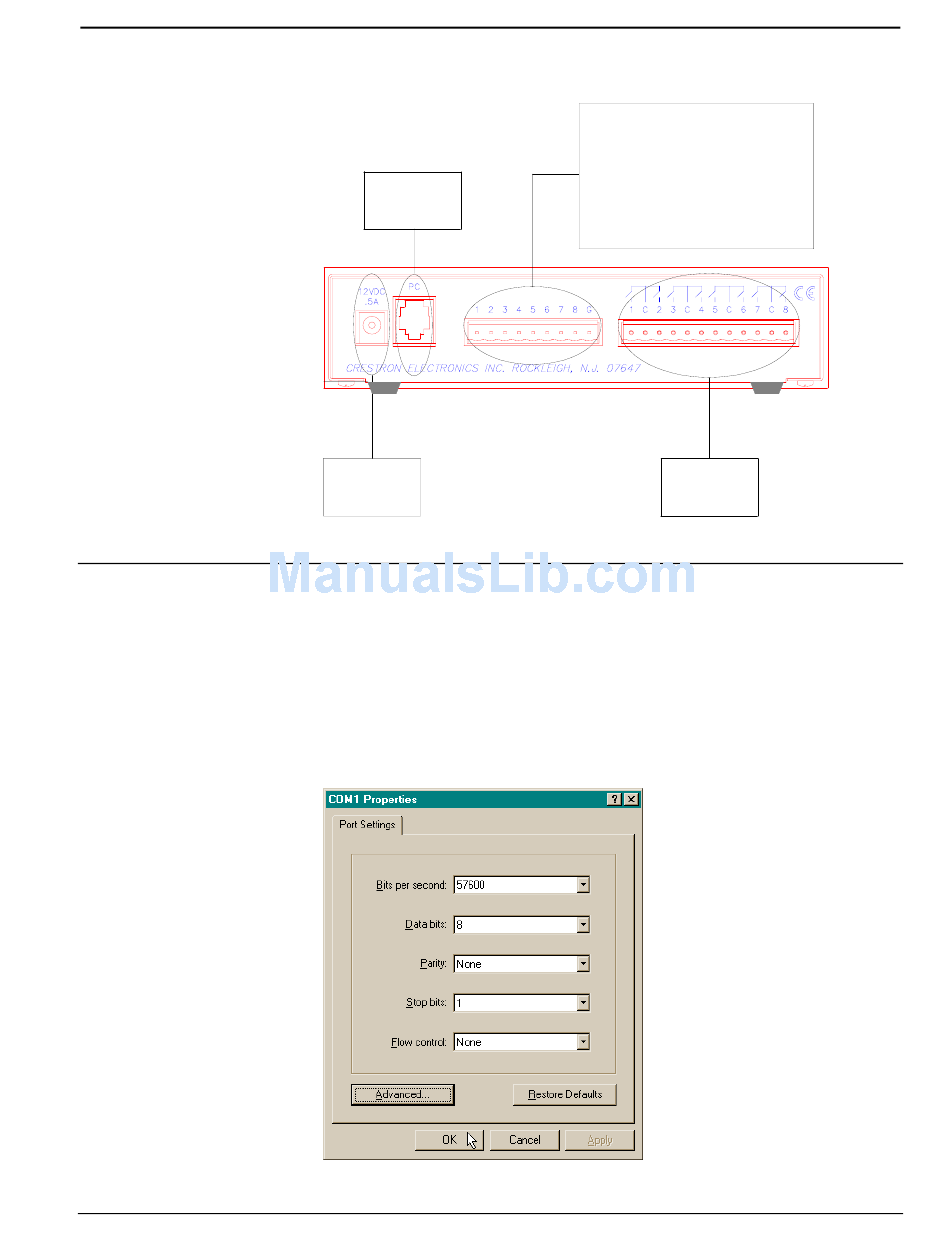

Hookup Connections for CEN-IO
NOTE:
CABLES ARE NOT SUPPLIED.
ETHERNET CONNECTION NOT SHOWN.
PC
POWER PACK
(500 mA)
(1000 mA
for CENI-IO)
The CEN-IO setup menus can be accessed only after connecting the communications
port of the PC to the PC port on the CEN-IO. Communication cables are not
provided. Refer to "Preparation for Use" on page 6 for CEN-IO hookup details.
After connecting the CEN-IO and before applying power, open the communications
package that resides on the PC. Viewport from either SIMPL Windows or
VisionTools Pro is used in the illustrations that follow. Be sure to set the PC
communication parameters as shown below.
PC Communication Parameters
Ethernet Input/Output Module
TO
CONTROLLABLE DEVICES
FROM DEVICE OUTPUTS
- CONTACT CLOSURES
- SOLID STATE CLOSURES
- LIGHTING SYSTEMS
INPUT/OUTPUT
CONTROLLABLE
Ethernet Input/Output Module: CEN-IO • 7
RELAY OUTPUT
TO
DEVICES
