TCP/IP Configuration

Depressing "1" from the NETWORK FUNCTIONS MENU opens the TCP/IP
CONFIGURATION MENU which appears on the screen as six options.

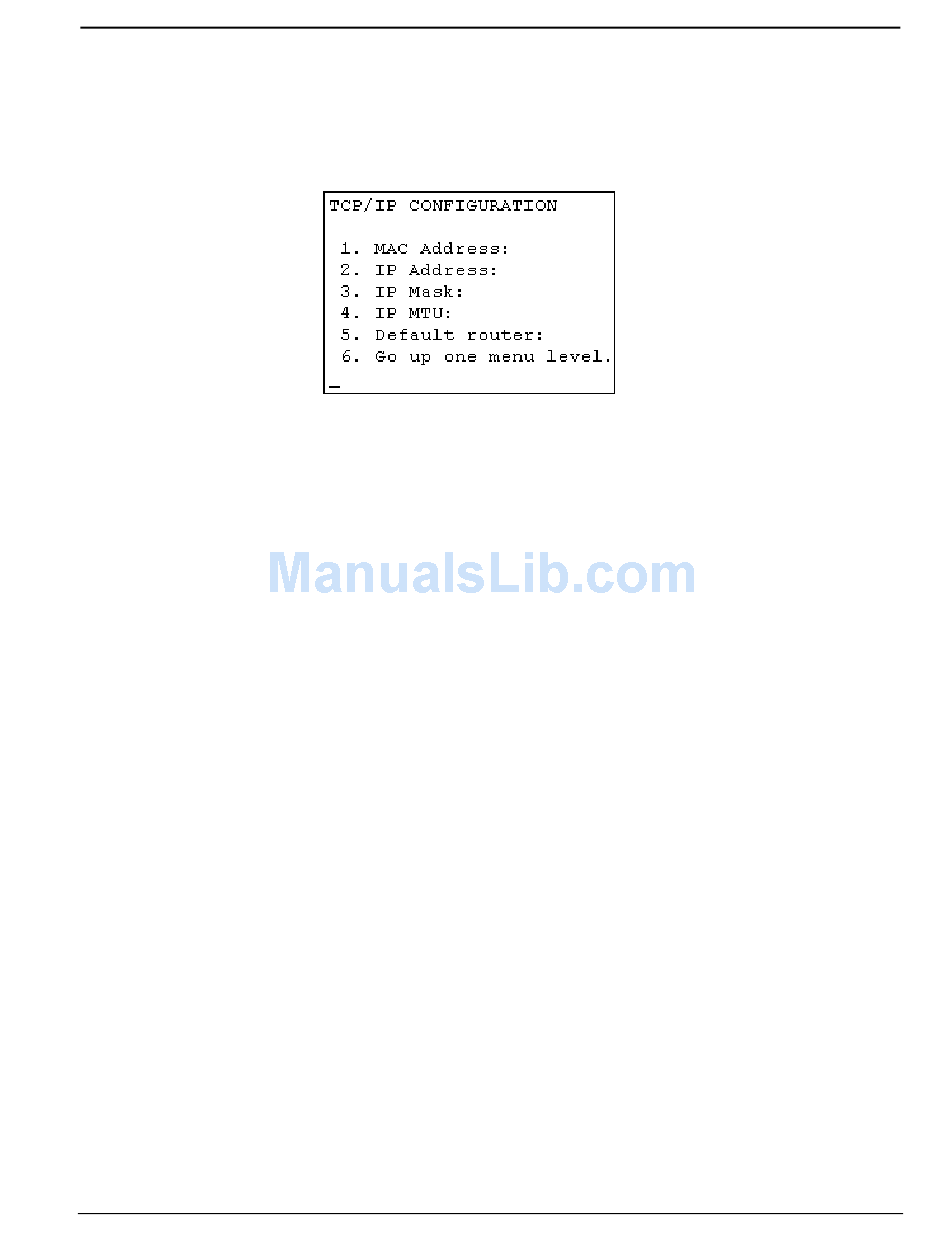

TCP/IP CONFIGURATION MENU in Viewport Window
MAC Address - Depressing "1" from the TCP/IP CONFIGURATION MENU
displays the MAC address (## ## ## ## ## ##, where # represents an alphanumeric)
and prompts the user to 'Press any key to continue'. Doing so displays the TCP/IP
CONFIGURATION MENU again. The MAC address can not be changed.
IP Address (*) - Depressing "2" from the TCP/IP CONFIGURATION MENU
allows the user to change the IP address for the connected CEN-IO. The program
displays the current IP address and prompts the user to enter an new IP address.
Enter the new address and depress ENTER. The program responds with the new IP
address and prompts the user to 'Press any key to continue'. Doing so displays the
TCP/IP CONFIGURATION MENU again.
IP MASK (*) - Depressing "3" from the TCP/IP CONFIGURATION MENU
allows the user to change the IP mask for the connected CEN-IO. The program
displays the current IP mask and prompts the user to enter an new IP mask. Enter the
new mask and depress ENTER. The program responds with the new IP mask and
prompts the user to 'Press any key to continue'. Doing so displays the TCP/IP
CONFIGURATION MENU again.
IP MTU (*) - Depressing "4" from the TCP/IP CONFIGURATION MENU allows
the user to change the IP MTU for the connected CEN-IO. The program displays the
current IP MTU and prompts the user to enter an new IP MTU. Enter the new IP
MTU and depress ENTER. The program responds with the new IP MTU and
prompts the user to 'Press any key to continue'. Doing so displays the TCP/IP
CONFIGURATION MENU again.
Default router (*) - Depressing "5" from the TCP/IP CONFIGURATION MENU
allows the user to change the default router for the connected CEN-IO. The program
displays the current default router and prompts the user to enter an new default
router. Enter the new router and depress ENTER. The program responds with the
new default router and prompts the user to 'Press any key to continue'. Doing so
displays the TCP/IP CONFIGURATION MENU again.
