4K HDBaseT™ Low Profile Receiver
with Scaling & Dual Ethernet Ports
RX-70-4K-SCL v1
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Install the latest firmware to ensure that all features described in this
document are available.
• The following items are required for
o
PC or Mac
o
Telnet and Terminal software such as PuTTY.
o
USB to 3-pin Port Adapter Cable (Included)
o
Network router and/or switch for quick configuration after installation
without the need to connect directly.
Basic Wiring Diagram
H2 Matrix with ARC
RX-70-4K-SCL
Key
HDMI/Digital Video
HDBaseT/Ethernet
Copyright © 2017 WyreStorm Technologies |
RX-70-4K-SCL v1 Quickstart Guide | 170718
Setup and
Configuration.
Cont
rol System
IR RX
CAB-IR-LINK (Sold Separately)
Digital Audio
Analog Audio
wyrestorm.com
In the Box

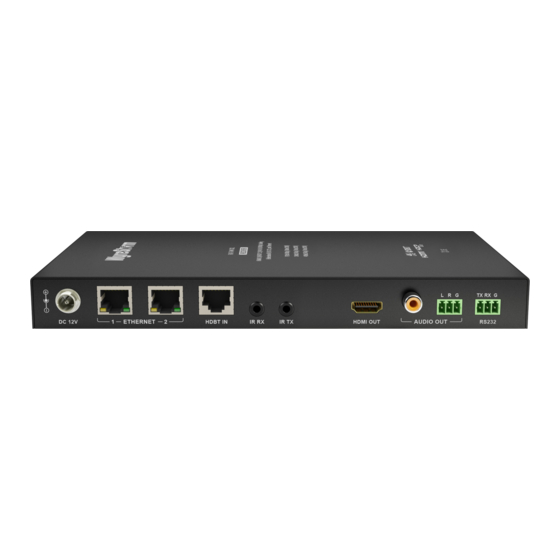

1x RX-70-4K-SCL Scaling Receiver
1x 12V DC 3A Power Supply
1x AC Cable
2x 3-pin Phoenix Connector
1x IR Emitter
1x IR Receiver
1x USB to 3-pin RS-232 Port Adapter Cable
2x Mounting Brackets
1x Quickstart Guide (this document)
Additional Information
Setup and control of the receiver for functions such EDID and audio
volume commands can be found in the
documentation pertaining to this product can be found in the Downloads Tab
located on the product page at WyreStorm.com.
Cont
Cont
Amplifier
or
HDMI In
IR Emitter
IR Recei
ver
IR
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
RX-70-4K-SCL
API. This and other
Ethernet
UHD Display
support@wyrestorm.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm RX-70-4K-SCL
Summary of Contents for Wyrestorm RX-70-4K-SCL
- Page 1 4K HDBaseT™ Low Profile Receiver with Scaling & Dual Ethernet Ports RX-70-4K-SCL v1 Quickstart Guide WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x RX-70-4K-SCL Scaling Receiver •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 While the receiver is provided an IP address via DHCP when connected to a network or a matrix via HDBaseT, the address is not available to IP scanners. For this reason WyreStorm recommends setting a static IP address that will never change so that it can be configured once it is installed.
- Page 4 Troubleshooting Tips: • Verify that the receiving device and display support the output resolution of • WyreStorm recommends using a cable tester or connecting the cable to the source. other devices to verify functionality.
