Wyrestorm RX-70-4K v2 Quick Start Manual

4K UHD HDBaseT Receiver with 5Play
and 2-way PoH (70m/230ft)

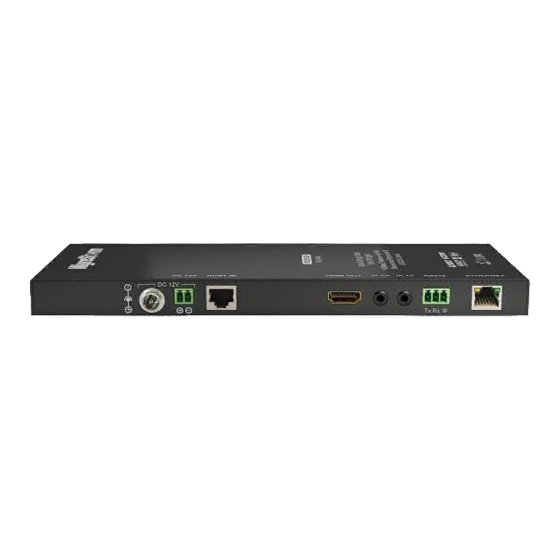

RX-70-4K v2
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
In the Box
1x RX-70-4K Receiver
1x Wide-band IR Emitter
1x Wide-band IR Receiver (30-50KHz)
2x Mounting Brackets
1x 3-pin Phoenix Connector
1x 2-pin Phoenix Connector
1x Quickstart Guide (this document)

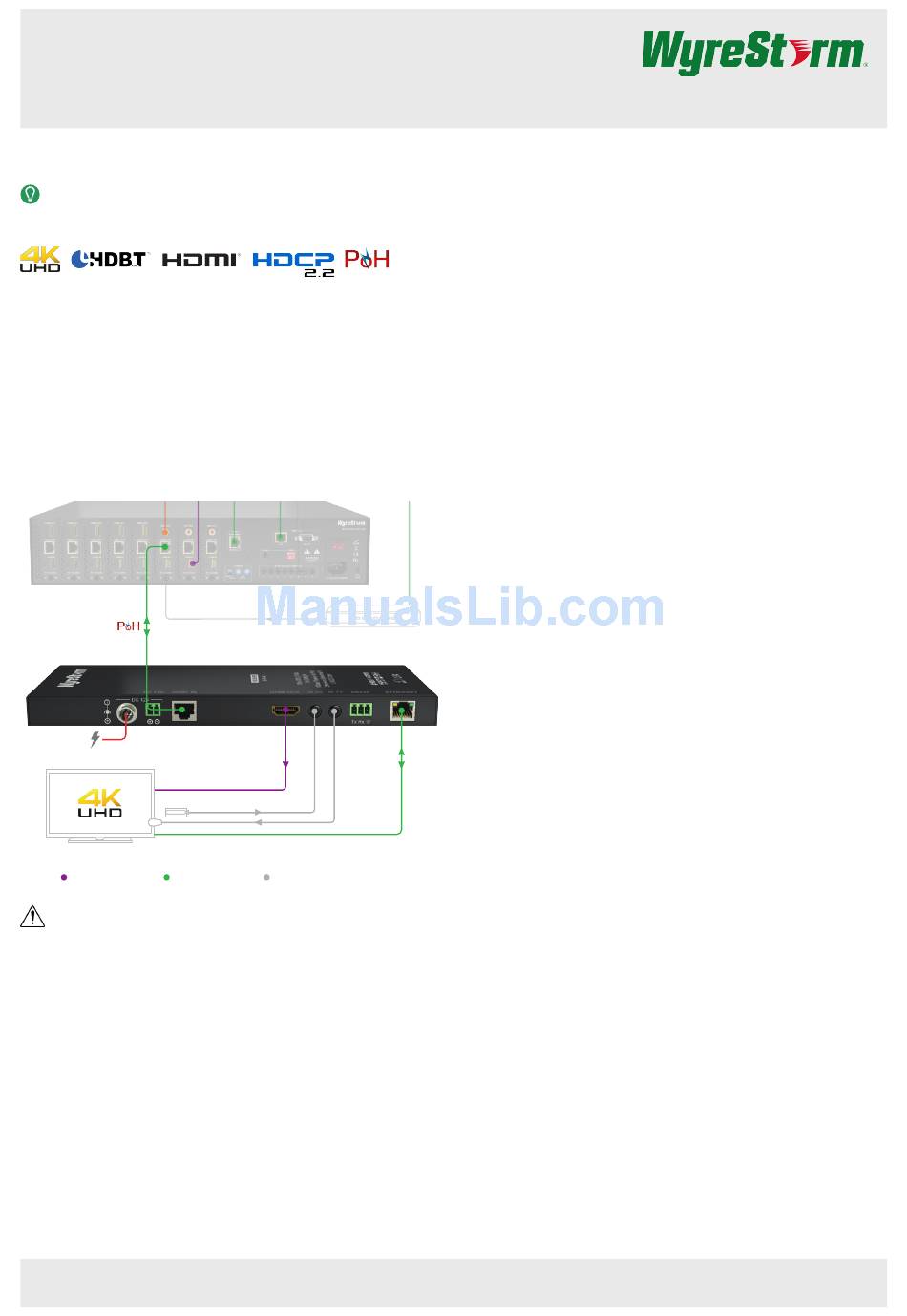

Basic Wiring Diagram
H2 Matrix with ARC
2-Way
Note: The RX can power a transmitter
RX-70-4K via PoH when a PSU is connected to the 12V DC In.
12V DC 2A
Note: Not required if powering
the receiver via PoH.
HDMI
UHD Display
Key HDMI/Digital Video HDBaseT/Ethernet
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Recommended Products
To take full advantage of the features of this receiver, WyreStorm
recommends the following products be used within the system.
• CAB-IR-LINK – Use this cable when using an IR control system for matrix
control of HDBaseT pass-through.
Copyright © 2016 WyreStorm Technologies |
RX-70-4K v2 Quickstart Guide | 160818
Control System
IR RX
CAB-IR-LINK (Sold Separately)
IR RX IR TX
Ethernet
IR
wyrestorm.com

Additional Information

This Quickstart Guide provides the basic steps for the common uses of this
product. Refer to the Installation Guide and other documentation on the
product page for additional information.

Before Beginning

WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included per the
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the receiver
location no longer than 70m/230ft (4K UHD) and 100m/328ft (1080p).
Terminate the cable per the
2. (Optional) If using 3rd party IR emitters or connecting blocks at either
the transmitter or receiver, run the wire and terminate per the
(Emitter) Wiring section.
3. (Optional) If using RS-232 pass-through, run the wire and terminate per
the RS-232 Wiring section.
4. (Optional) If using 3rd party IR receivers at either the transmitter or
receiver, run the wire and terminate per the
section.

Receiver Installation

Connect the HDMI Out on the receiver to an input on the display using
1.
an HDMI cable from a high quality brand such as
2. Using the cable created in
female plug to the HDBT In jack.
3. (Optional) Place an IR emitter onto the display device near the device's
IR sensor and connect it the IR TX port.
4. (Optional) If using RS-232 pass-through, connect the 3-pin connector
to the RS-232 port on the receiver and the opposite end to a port on the
device being controlled.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4

Quickstart Guide

In The Box list.
HDMI/HDBaseT Wiring section.
IR RX (Receiver) Wiring
WyreStorm Express.
Pre Wire step 1, connect the 8-pin RJ-45
support@wyrestorm.com
IR TX
