4K HDBaseT™ Low Profile Receiver
with Scaling & Dual Ethernet Ports
RX-70-4K-SCL v1
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Install the latest firmware to ensure that all features described in this
document are available.
• The following items are required for
o
PC or Mac
o
Telnet and Terminal software such as
o
USB to 3-pin Port Adapter Cable (Included)
o
Network router and/or switch for quick configuration after installation
without the need to connect directly.

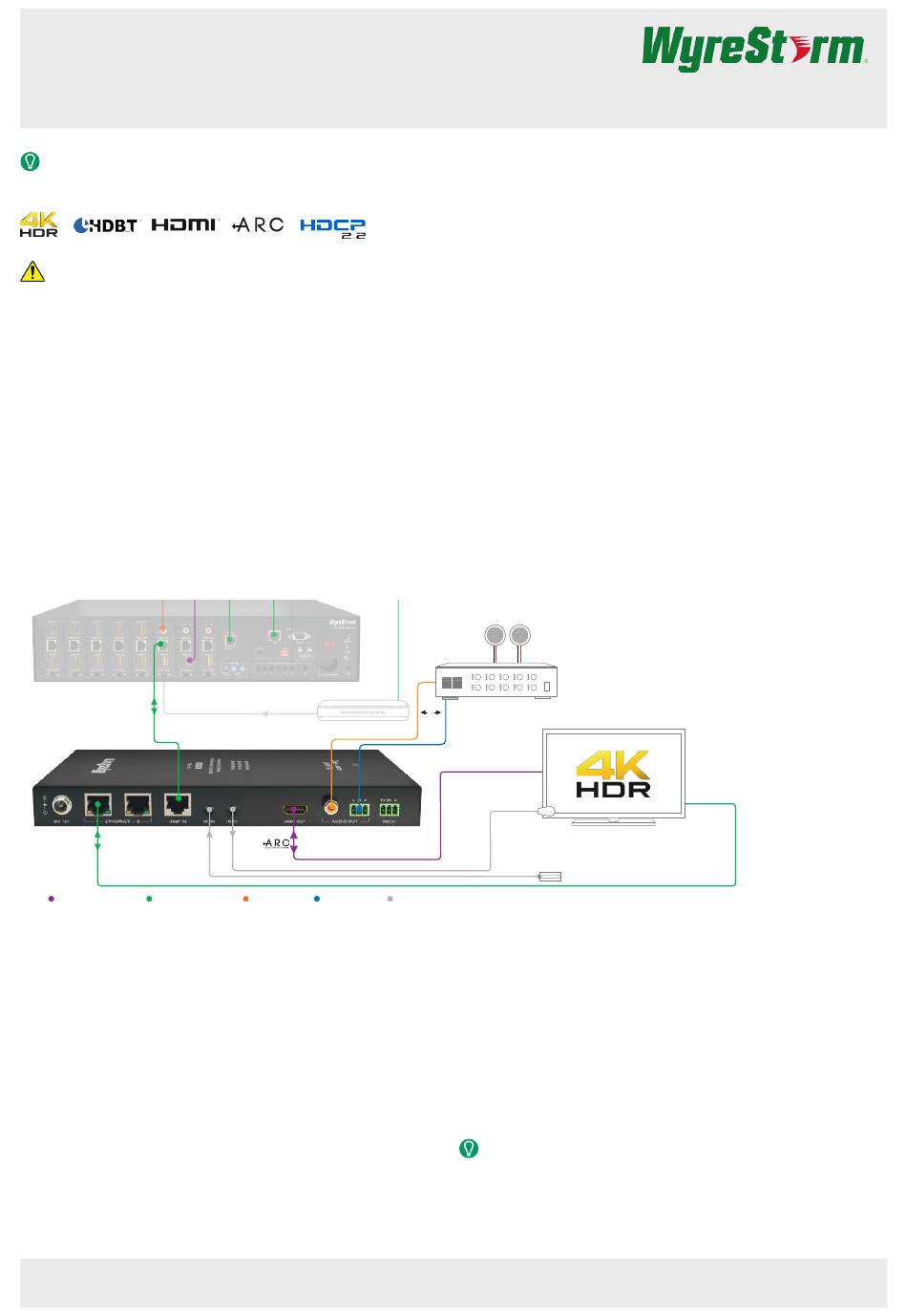

Basic Wiring Diagram
H2 Matrix with ARC
RX-70-4K-SCL
Key
HDMI/Digital Video
HDBaseT/Ethernet
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to all devices in the system and that they
are powered on.
• Verify that all source and HDBaseT connections are not loose and are
functioning properly.
• Verify that the transmitter or matrix, receiving device, and display support
the output resolution configured in the receiver. Refer to Video Resolutions
in the
table before determining cable type and length.
• Verify that the receiving device and display support the output resolution of
the source.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
Copyright © 2017 WyreStorm Technologies |
RX-70-4K-SCL v1 Quickstart Guide | 171107
Setup and
Configuration.
PuTTY.
Cont
rol System
IR RX
CAB-IR-LINK (Sold Separately)
Digital Audio
Analog Audio
IR
wyrestorm.com
In the Box

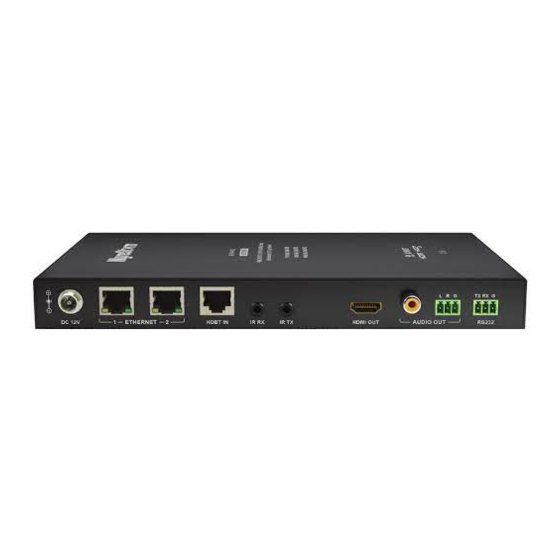

1x RX-70-4K-SCL Scaling Receiver
1x 12V DC 3A Power Supply
1x AC Cable
2x 3-pin Phoenix Connector
1x IR Emitter
1x IR Receiver
1x USB to 3-pin RS-232 Port Adapter Cable
2x Mounting Brackets
1x Quickstart Guide (this document)
Additional Information
Setup and control of the receiver for functions such EDID and audio
volume commands can be found in the
documentation pertaining to this product can be found in the Downloads Tab
located on the product page at
Cont
Cont
Amplifier
or
HDMI In
IR Emitter
UHD Display
IR Recei
ver
No or Intermittent 3rd party Device Control
• Verify that the IR cable(s) is properly terminated.
See
IR RX (Receiver)
Wiring.
• Verify that the IR emitter is located near the IR receiver on the device.
• Verify that the connected matrix is connected to a network
switch or router.
• Verify that the RS-232 cable is properly terminated per
the
section.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
• Use a flashlight to locate the IR sensor behind any tinted panels on the
device being controlled. It will likely appear as a small round disc.
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
RX-70-4K-SCL
API.
This and other
WyreStorm.com.
Ethernet
