1. Copy the firmware update file (H3390-10.VER) to the root directory of a CF card or USB memory
stick on a PC.
2. Insert the CF card or USB memory stick with the copied firmware update file to the 3390-10, and
turn on the power.
The settings will be initialized after the firmware update, so save the settings before the update.
3. Press "FILE" key, so that the file list is displayed.
If using a USB memory stick, press either left or right key of PAGE to display the file list in the USB
memory stick.

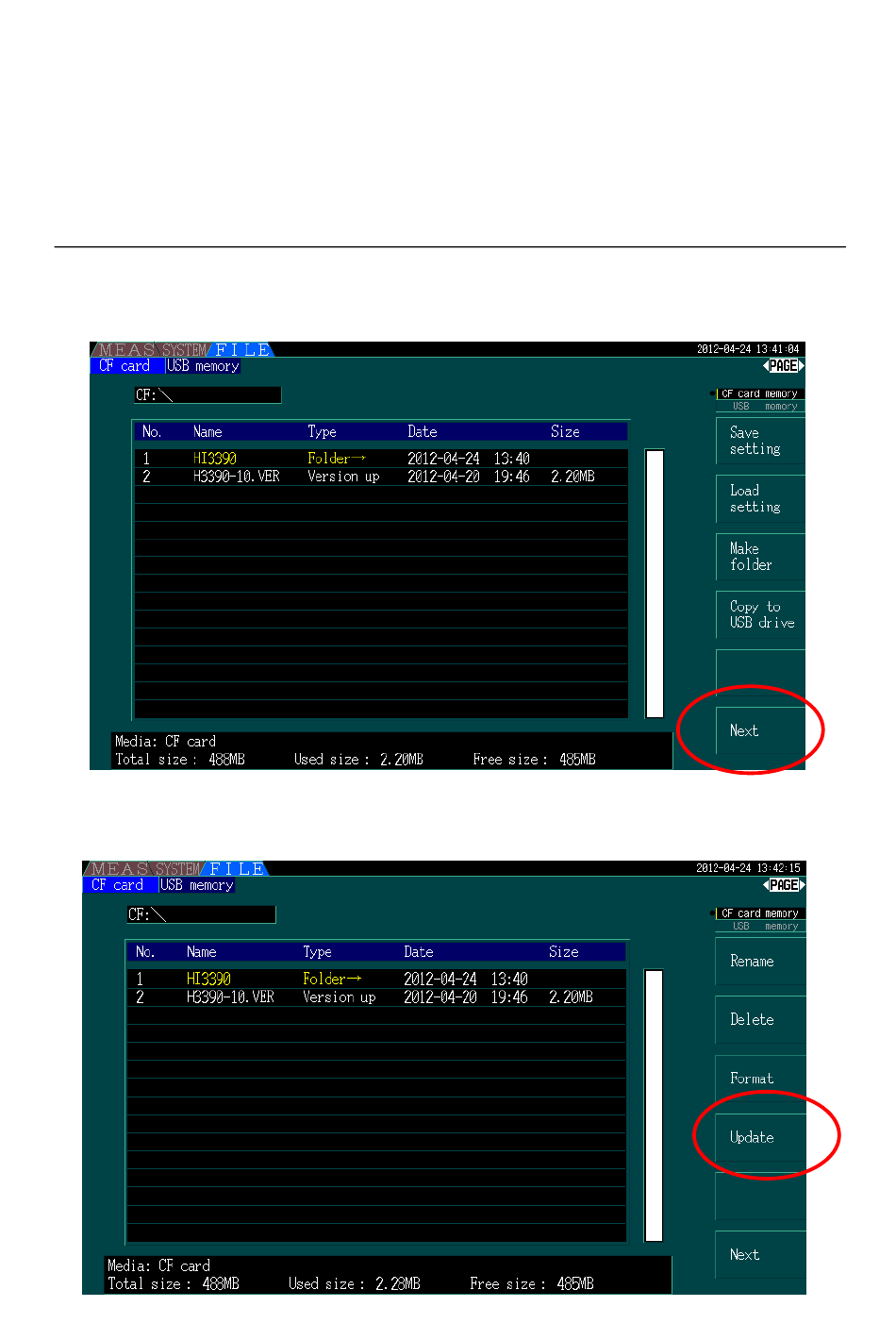

4. Press "Next (F6)" key, so that the file list screen will be changed as shown below.
Model 3390-10 Firmware Update Procedures
Figure 1: File list screen (1)
Figure 2: File list screen (2)
April 27, 2012
HIOKI E.E. CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3390-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hioki 3390-10

Summary of Contents for Hioki 3390-10

  • Page 1 1. Copy the firmware update file (H3390-10.VER) to the root directory of a CF card or USB memory stick on a PC. 2. Insert the CF card or USB memory stick with the copied firmware update file to the 3390-10, and turn on the power.
  • Page 2 “SHIFT”, and “START/STOP” keys will be lit. Do not turn off the power while LEDs are lit. If the update fails, the unit must be sent to HIOKI for repair and adjustment. Figure 4: Update message screen 7. Update is completed in about 1 minute, and LEDs will be turned off.
  • Page 3 correct action after the firmware update. The message will be changed to “BACKUP PASS” from the next start. Confirm the version number in the setting screen by pressing “SYSTEM” key when the measurement screen is displayed.
