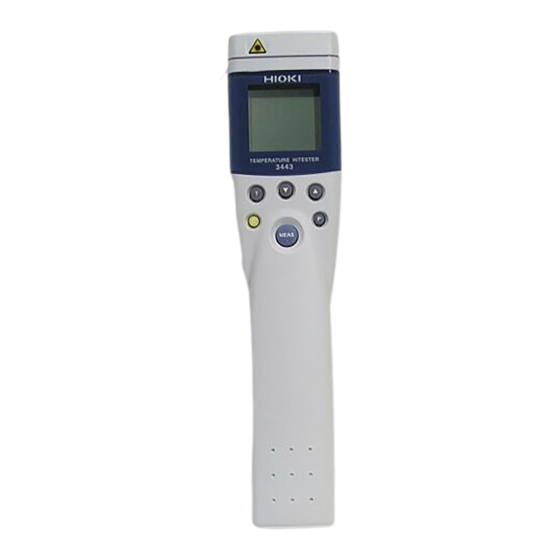

Hioki HiTester 3443-01 Instruction Manual

Temperature tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
For...は専用機種。複数の場合は「/」で区切る。
不要の場合はとる。
形名を入力。 複数の場合は「/」で区切る。
3443-01
品名を入力。
TEMPERATURE HiTESTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HiTester 3443-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hioki HiTester 3443-01

Summary of Contents for Hioki HiTester 3443-01

  • Page 1 INSTRUCTION MANUAL For...は専用機種。複数の場合は「/」で区切る。 不要の場合はとる。 形名を入力。 複数の場合は「/」で区切る。 3443-01 品名を入力。 TEMPERATURE HiTESTER...

  • Page 3: Table Of Contents

    Contents Introduction Safety Notes Inspection Notes on Use Chapter 1 Summary 1.1 Product Summary 1.2 Names and Functions of Parts Chapter 2 Prior to Use 2.1 Battery Loading and Replacement 2.2 Setting the Date and Time Chapter 3 Making Measurements 3.1 Start and Complete Measurement 3.2 Target Size and Sighting 3.3 Setting Emissivity (ε)
  • Page 5 ――――――――――――――――――――――――――― Introduction Thank you for purchasing this HIOKI "3443-01 TEMPERATURE HiTESTER." To get the maximum performance from the unit, please read this manual first, and keep this at hand. ―――――――――――――――――――――――― Introduction...

  • Page 6: Safety Notes

    ――――――――――――――――――――――――――― Safety Notes WARNING Incorrect measurement procedures could result in injury or death, as well as damage to the equipment. Please read this manual carefully and be sure that you understand its contents before using the equipment. The manufacturer disclaims all responsibility for any accident or injury except that resulting due to defect in its product.
  • Page 7 ――――――――――――――――――――――――――― The following symbols are used in this Instruction Manual to indicate the relative importance of cautions and warnings.  Indicates that incorrect operation presents extreme danger of accident DANGER resulting in death or serious injury to the user.  Indicates that incorrect operation presents significant danger of accident WARNING resulting in death or serious injury to...

  • Page 8: Inspection

    Before using the unit, inspect it and check the operation to make sure that the unit was not damaged due to poor storage or transport conditions. If damage is found, contact your dealer or HIOKI representative. Inspection When you receive this product, before use, please check that no abnormality or damage has occurred during delivery.

  • Page 9: Notes On Use

    ――――――――――――――――――――――――――― Notes on Use In order to ensure safe operation and to obtain maximum performance from the unit, observe the cautions listed below. DANGER ･Operation of this unit according to any procedure not specified in this manual may cause explosion due to dangerous laser radiation.
  • Page 10 ――――――――――――――――――――――――――― WARNING ･To prevent electric shock, do not allow the unit to become wet and do not use the unit when your hands are wet. ･Ensure that protective functions are fail-safe: that is to say, that if they fail they either prevent the unit from operating or give an indication to prevent unwitting operation.
  • Page 11 ――――――――――――――――――――――――――― CAUTION ･ This unit has been constructed with some degree of water resistance, but if it is subjected to direct contact with water for a long period of time, water may get into the unit. Further, water drops left on the lens will cause measurement errors.
  • Page 12 ――――――――――――――――――――――――――― Warning Labels Location of labels used in the HIOKI "3443-01 TEMPERATURE HiTESTER" are as follows. Laser caution label Laser specification and caution label Rear Front ―――――――――――――――――――――――― Notes on Use...

  • Page 13: Chapter 1 Summary

    ――――――――――――――――――――――――――― Chapter 1 Summary 1.1 Product Summary 1. Theory of Measurement Every object emits infrared energy in accordance with its temperature. By measuring the amount of this radiant energy, it is possible to determine the temperature of the emitting object. 2.
  • Page 14 ――――――――――――――――――――――――――― The output signal from the infrared radiation sensor is input to an electronic circuit along with the output signal from a standard temperature sensor. The electronic circuit calculates the object temperature while applying standard temperature compensation, thermal emissivity compensation, etc., and displays the result.

  • Page 15: Names And Functions Of Parts

    ――――――――――――――――――――――――――― 1.2 Names and Functions of Parts 3443-01 field type unit ①Lens ②Laser port Screw hole for camera tripod Laser specification (spec.) and caution label Battery box Connector cover (inside: connector for interface pack) ―――――――――――――――――――――――― Chapter 1 Summary...
  • Page 16 ――――――――――――――――――――――――――― ･ Connect the cable provided with the optional 3909 NOTE INTERFACE PACK to the expansion box connector. For details, please refer to the user instructions provided with the 3909 INTERFACE PACK. Operating section LCD display ④Mode select key ③Time key ⑦Printer key ⑤Clear key ⑥MEAS key...
  • Page 17 ――――――――――――――――――――――――――― ① Lens Infrared rays from the object whose temperature is to be measured are received here. ② Laser marker beam emission openings The laser marker beams are emitted from here. ③ Time key Used to set the time and to check the time of stored data.
  • Page 18 ――――――――――――――――――――――――――― ⑦ Printer key Pressing the key outputs the stored data to an external printer. ･ To use the printer output function, an optional 3909 NOTE INTERFACE PACK is required. The printer must be provided by the user. Printer with RS-232C interface. Standard printers such as the EPSON PM series and the CANON BJ series for personal computers cannot be used.
  • Page 19 ――――――――――――――――――――――――――― ・ε indicator : Appears when the thermal emissivity is being set. ・SET indicator : Blinks when date, time, and emissivity are being set. ・TIME indicator : Displayed when time is set and the time of data memory is displayed. Blinks: during time operation.
  • Page 20 ――――――――――――――――――――――――――― ―――――――――――――――――――――――― Chapter 1 Summary...

  • Page 21: Chapter 2 Prior To Use

    ――――――――――――――――――――――――――― Chapter 2 Prior to Use Prior to operating the thermometer, carry out the following: 1. Attaching the accessory screwdriver Attach the accessory screwdriver to the hand strap so that it will not get lost. This screwdriver is used to remove the battery cover screws.

  • Page 22: Battery Loading And Replacement

    ――――――――――――――――――――――――――― 2.1 Battery Loading and Replacement ･ The thermometer does not come with the battery loaded. Load the battery according to the procedure described below. ･ If the battery indicator starts to blink, promptly replace the battery. ･ If the main body is wet, be sure to wipe off the water, set the battery box facing downward so that any water in the joint will not enter the case, and then remove the battery cover.
  • Page 23 ――――――――――――――――――――――――――― DANGER When changing the battery, be careful not to press the key by mistake. MEAS It is very dangerous to allow the laser beam to shine into your eyes or those of another person. Also, after changing the battery, be sure to close the cover before using the unit.

  • Page 24: Setting The Date And Time

    ――――――――――――――――――――――――――― ･ All settings are lost when the battery is replaced. NOTE After replacing the battery, please re-set the emissivity, date and time. For details, see 2.2, Setting the Date and Time* and 3.3, Setting Emissivity (ε) . ･ When not in use for a long time, to prevent possible corrosion caused by battery leakage, remove the battery before storage.
  • Page 25 ――――――――――――――――――――――――――― 2. Change the date. Blinking figures can be changed with the ▼ ▲ keys. 3. Completing the date setting. Pressing the key moves to the time setting mode. Pressing the MEAS completes the date setting. ･ Setting is also possible for a date that does not NOTE actually exist (for example, November 31, February 31, etc.), so confirm the date after setting it.
  • Page 26 ――――――――――――――――――――――――――― 2. Change the time. Using the keys, set ▼ ▲ the present time. Time is displayed in 24- hour format. 3. Completing the time setting. Pressing key moves to the date setting mode. Pressing the MEAS completes the setting. ――――――――――――――――――――――――...

  • Page 27: Chapter 3 Making Measurements

    ――――――――――――――――――――――――――― Chapter 3 Making Measurements 3.1 Start and Complete Measurement 1. When the power is off, pressing the MEAS turns on the power. The values and settings on the LCD display return to the state before the power was last turned off. ･...
  • Page 28 ――――――――――――――――――――――――――― DANGER With the 3443-01, whenever the indication flashing, the laser marker beam (class 2) is being emitted. Exercise extreme care not to allow the laser marker beam to enter your eyes (because of this laser light causing damage to the eyes) or those of another person.

  • Page 29: Target Size And Sighting

    ――――――――――――――――――――――――――― 3.2 Target Size and Sighting ･ Although the field of measurement and the sighting NOTE almost coincide, actually the field of measurement corresponds to the diameter for 90% optical response. The object whose temperature is to be measured needs to be larger than the measurement diameter by an adequate margin‐at least 1.5 to 2 times larger.

  • Page 30: Setting Emissivity (Ε)

    ――――――――――――――――――――――――――― 3.3 Setting Emissivity (ε) Each substance has particular emissivity. Precise measurement requires appropriate setting. 1. Displaying emissivity (ε) With the power off, display the emissivity setting by pressing the while pressing and MEAS key. SET holding the begins flashing. 2.
  • Page 31 ――――――――――――――――――――――――――― Substance Thermal Substance Thermal emissivity emissivity Asphalt 0.90 to 0.98 Charcoal 0.96 (powder) Concrete 0.94 Lacquer 0.80 to 0.95 Cement 0.96 Lacquer (matt) 0.97 Sand 0.90 Rubber (black) 0.94 Earth 0.92 to 0.96 Plastic 0.85 Water 0.92 to 0.96 Timber 0.90 0.96 to 0.98...

  • Page 32: Storing The Data

    ――――――――――――――――――――――――――― ･ Variations in the surface condition and color of the NOTE object whose temperature is to be measured may cause the thermal emissivity ε to be somewhat different from the values in the above table. If an accurate temperature measurement is desired for an object whose thermal emissivity is not known, black body tape or black body spray (sold separately) should be used.
  • Page 33 ――――――――――――――――――――――――――― Displaying data memory The data of the last memory No. in the stored data can be displayed using the keys. ▼ ▲ Data in the same No. can be displayed using the ▼ keys while pressing the ▲ T key. The time of data memory is displayed.

  • Page 34: Switching Between Fahrenheit And Celsius, And Erasing All Data From Memory

    ――――――――――――――――――――――――――― 3.5 Switching between Fahrenheit and Celsius, and Erasing All Data from Memory To switch between Fahrenheit and Celsius displays, perform the following operation when turning on the electrical power: On shipment from the factory, the HiTESTER is set to display temperature in degrees Fahrenheit. 1.

  • Page 35: Turning The Power Off

    ――――――――――――――――――――――――――― 3.6 Turning the Power Off The unit has an auto power off function. The power goes off after 15 seconds if no control action is performed. If you need to check the measured temperature value again, just press the key once.
  • Page 36 ――――――――――――――――――――――――――― ―――――――――――――――――――――――― Chapter 3 Making Measurements...

  • Page 37: Chapter 4 Specification

    ――――――――――――――――――――――――――― Chapter 4 Specification Product type 3443-01 Temperature HiTester (Field Type) Detector / optical lens thermopile / silicon Measurement 8 to 16 μm wavelength Measurement -58.0 to 932 temperature range -50.0 to 500.0℃ Display resolution 0.1 , 0.1℃ Guaranteed accuracy period 1 year Accuracy of...
  • Page 38 ――――――――――――――――――――――――――― Number of memory 130 (total of No. 1 to No. 64) Displayable memory No. + measured value + time content Thermal emissivity Normally fixed a t 0.95 (can be compensation changed in 0.10 to 1.00 with the keys) Auto power off approx.
  • Page 39 ――――――――――――――――――――――――――― Options 3909 INTERFACE PACK, Black body tape, Black body spray, AC Adapter (AC-10), 9442 PRINTER, 9443-03 AC ADAPTER (for printer), 9444 CONNECTION CABLE (for printer) *1 : To use the printer output function and RS- 232C interface, an optional expansion kit is required.
  • Page 40 ――――――――――――――――――――――――――― ―――――――――――――――――――――――― Chapter 4 Specification...

  • Page 41: Chapter 5 Maintenance And Service

    ――――――――――――――――――――――――――― Chapter 5 Maintenance and Service WARNING ･ Do not attempt to adjust or repair the unit with the case open. Such adjustments or repairs should only be made by a technician who fully understands the dangers involved. ･ If the protective functions of the unit are damaged, either remove the unit from service or post warnings to prevent others from using the unit inadvertently.
  • Page 42 ･ If the unit is not functioning properly, check the battery, the probe. If a problem is found, contact your dealer or HIOKI representative. Pack the unit carefully so that it will not be damaged during transport, and write a detailed description of the problem.

  • Page 43: Troubleshooting

    ――――――――――――――――――――――――――― 5.1 Troubleshooting Problem Cause Solution No display ･ Batteries ･ Change the exhausted, poorly battery, or insert contacting, or them correctly. wrongly inserted. Measured ･ Lens dirty ･ Clean the lens. temperature value peculiar ･ A heat source such ･...

  • Page 44: Questions And Answers

    ――――――――――――――――――――――――――― 5.2 Questions and Answers about Measurement Q: Why can't I measure the temperature on the other side of a glass pane? A: Normal glass absorbs infrared radiation of the wavelength (8 to 16 μm) which this device uses for temperature measurement.
  • Page 45 ――――――――――――――――――――――――――― Q: Why can't I measure the temperature of a gas, vapor, or flame? A: Since gases, vapors, and flames are transparent to infrared radiation, their temperatures cannot be measured in this way. Q: Why can't I measure temperature through rain or fog? A: Since rain and fog reflect and absorb infrared radiation, accurate measurement through them is...
  • Page 46 ――――――――――――――――――――――――――― ―――――――――――――――――――――――― Chapter 5 Maintenance and Service...
