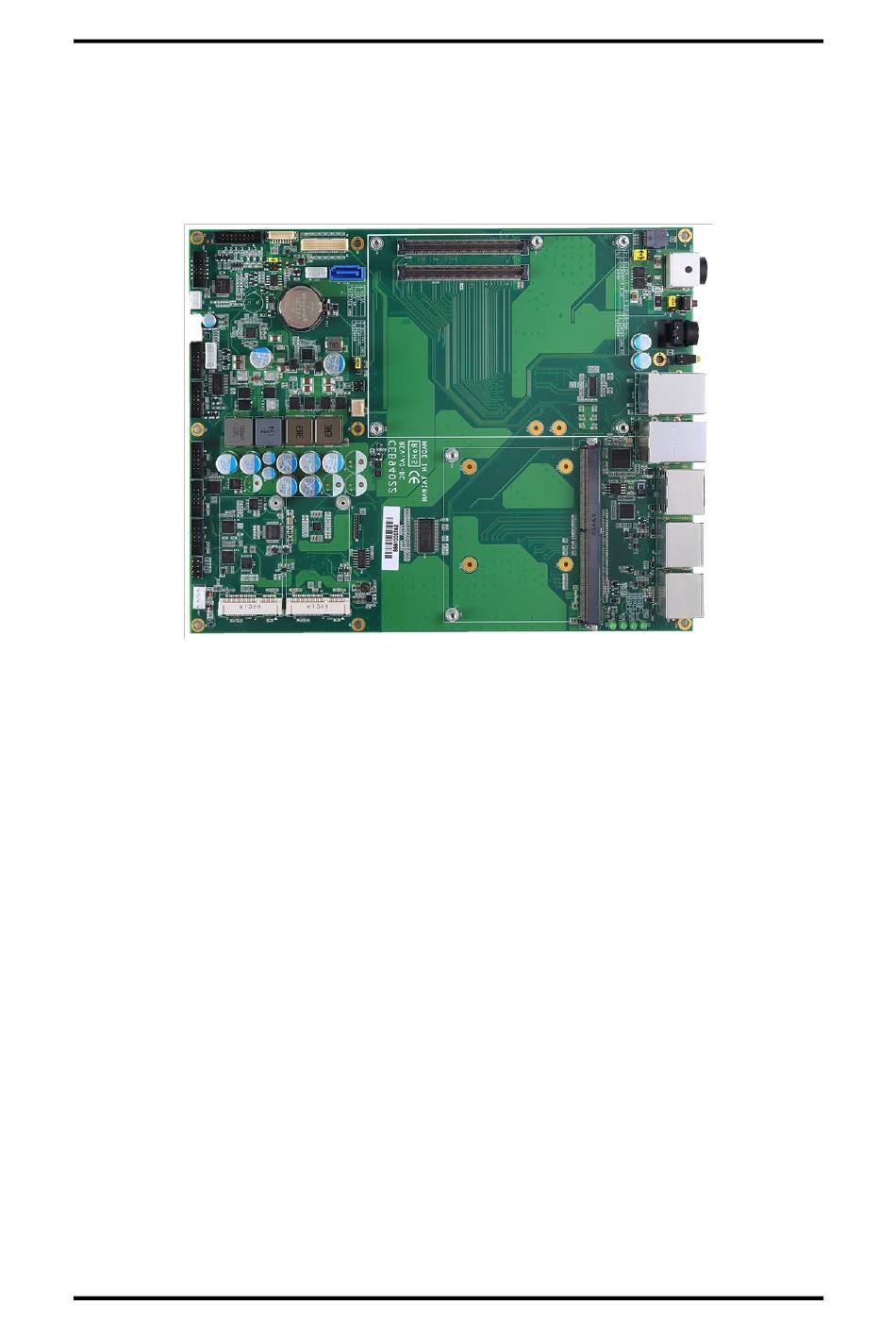

The CEB94022 is a new COM Express
TM
Express Type 6 with MXM slot which fully compliant with the PCI Industrial Computer
Manufactures PICMG COM Express
converting, CEB94022 provides six display interfaces which include one HDMI port (from COM
TM
Express module), one DP port (from COM Express
module). Besides of multiple display interface, CEB94022 also provide two full-size
PCI-Express Mini Card sockets for expansion purposes.
This board supports various I/O features: display interfaces including one VGA (box header)
and LVDS (connector), two Gigabit/Fast Ethernet, HD audio codec, one SATA-600 interface,
two USB 3.0, two USB 2.0, eight GPIO and four serial ports (three RS-232/422/485 and one
RS-232).
With CEB94022, customers can implement it in their own applications devices and accelerate
time-to-market for multiple display or high graphic computing demand applications e.g. Retail
or computer vision.
Introduction
CEB94022 COM Express
TM
Type 6 Application Board for embedded COM
TM
standard. In addition to the standard output signals for
TM
Type 6 with MXM Application Board
Chapter 1
Introduction
TM
module) and four DP port (from MXM
