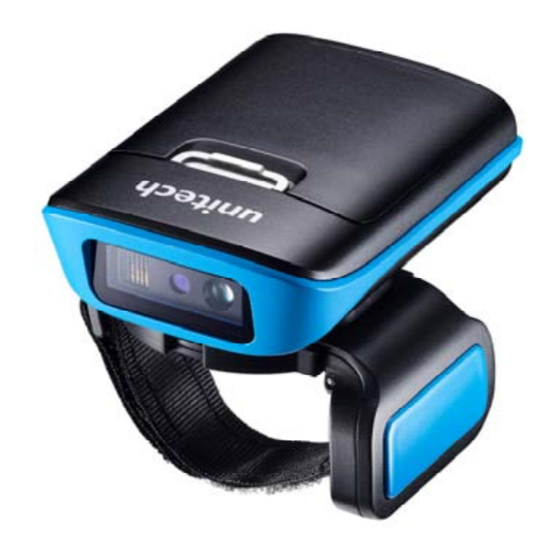

Wearable 2D Ring Scanner
- MS652Plus -
User's Manual
Version 1.0
© 2019 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
All product and company names are trademarks, service marks, or registered trademarks of their respective
owners.
