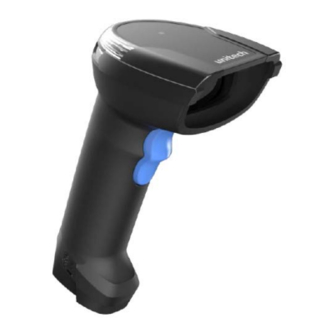

Rugged Handheld Laser Scanner
- MS851 -
User's Manual
Version 0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS851 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitech MS851

Summary of Contents for Unitech MS851

  • Page 1 Rugged Handheld Laser Scanner - MS851 - User's Manual Version 0.1...
  • Page 2 Change Log Date Change Description Version...

  • Page 3: Preface

    –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 4 Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 5 MS851 User’s Manual European Conformity Statement unitech Electronics co., Ltd herewith declares that the unitech product is in compliance with the essential requirements and all other provisions of the RED 2014/53/EU directive, the EMC 2014/30/EU directive and the Low Voltage 2014/35/EU directive.
  • Page 6 MS851 User’s Manual Waste electrical and electronic equipment (WEEE) unitech has set up a policy and process to meet the EU directive 2002/96/EC and update 2003/108/EC concerning electronic waste disposal. For more detailed information of the electronic waste disposal of the products you have purchased from unitech directly or via unitech’s resellers, you shall either...
  • Page 7 MS851 User’s Manual Taiwan NCC Warning Statement 低功率電波輻射性電機管理辦法 第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者 均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻射性電機設備 之干擾。 注意事項: 1. 使用過度恐傷害視力。 2. 使用30分鐘請休息10分鐘；2歲以下幼兒不看螢幕，2歲以上每天看螢幕不要超過 1小時。 3. 減少電磁波影響，請妥適使用。 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 8: Laser Information

    MS851 User’s Manual Laser Information The unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.

  • Page 9: Battery Notice

    It may not be functional anymore. Please only use the original battery from unitech. Using a third party battery can damage our products. Please note that when such damage occurs, it is not covered by your warranty.
  • Page 10 If the connector is damaged, please ensure the connector is being fully repaired before use the unit to avoid causing short circuited. viii © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 11 Please follow the limitation of suggested temperature conditions to avoid failure, damage or malfunction. *For applicable temperature conditions, please refer to the specification of each product. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 12: Adapter Notice

    Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with your unitech product is not meant to be used outdoors. An adapter exposed to water or rain, or a very humid environment can cause damage to both the adapter and the product.

  • Page 13: Worldwide Support

    MS851 User’s Manual Worldwide Support unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...

  • Page 14: Warranty Policy

    The warranty period is varied from each country. Please consult with your supplier or unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.

  • Page 15: Table Of Contents

    2.9 Transmit “No Read” message...............14  2.10 Prefix / Suffix ..................15  Chapter 3 – Symbology ................20  3.1 UPC/EAN .....................20  3.2 Code 128....................36  xiii © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 16 3.12 Transmit Code ID Character...............68  3.13 Linear Code Type Security Level............69  3.14 Bi-directional Redundancy..............71  Appendix A –Miscellaneous Code Information ......72  Appendix B –Numeric Bar Codes............76  © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 17: Chapter 1 - Overview

    MS851 User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the MS851 gift box. If something is missing or damaged, please contact your unitech representative. The standard package contents:  MS852 Rugged Handheld Laser Scanner ...

  • Page 18: Product Detail

    MS851 User’s Manual 1.2 Product Detail LED Indicator Scan Window Trigger Key Cable Connector - 2 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 19: Specifications

    87.8mm x 177.7mm x71.6 mm (L x H X W) Weight 147g without cable Switch Life 10 million times - 3 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 20 -40°C to 70°C (-40°F to +158°F) Relative Humidity 95% non-condensing IP Rating IP42 Regulatory Approvals CE, FCC, BSMI, VCCII - 4 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 21: Getting Started

    MS851 User’s Manual 1.4 Getting Started To get started with MS851, please connect USB cable to the USB port of a host PC. - 5 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 22: Led Indicator / Beeper Sequence

    High Tone, Low Tone, Green Blink Parameter entered High Tone, Low Tone Number entry expected High Tone, Low Tone Green Blink - 6 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 23: Chapter 2 - Command Settings

    Scan below bar code to restore the factory setting. Default 2.1.2 Display F/W Version Scan below bar code to display F/W version. Display F/W Version - 7 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 24: Usb Device Type

    2.2 USB Device Type HID Keyboard* CDC (SPP) 2.3 Scan Mode Trigger Mode Continuous Mode Host Mode Pulse Mode Blink Mode - 8 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 25: Beeps & Volume

    Good Read Beep Enable* Good Read Beep Disable 2.4.2 Beeper Volume Low Volume Medium Volume * High Volume - 9 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 26: Beeper Tone

    MS851 User’s Manual 2.4.3 Beeper Tone Low Frequency Medium Frequency* (Optimum Setting) High Frequency - 10 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 27: Bt Config

    MS851 User’s Manual 2.5 BT Config 2.5.1 HID Keyboard Character Delay 2.5.2 HID Keyboard Block Delay - 11 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 28 MS851 User’s Manual 2.5.3 HID Keyboard Case 2.5.4 HID Keyboard Language - 12 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 29: Laser On Time

    0.5 seconds, scan the bar code below, then scan the “0” and “5” bar codes. To change the selection or cancel an incorrect entry, scan Cancel on Appendix - 13 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 30: Time Out Between Same Symbol

    When disabled, and a symbol cannot be decoded, no message is sent to the host. - 14 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 31: Prefix / Suffix

    Setting Prefixes and Suffixes Via Serial Commands. NOTE In order to use Prefix/Suffix values, Data Transmission Format must be set. - 15 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 32 MS851 User’s Manual 2.10.2 Data Terminator Quick Setting Scan below bar code to terminate data Enter * CR/LF None - 16 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 33 1028 CTRL \ 1060 < 1029 CTRL ] 1061 1030 CTRL 6 1062 > 1031 CTRL - 1063 - 17 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 34 1088 1121 1089 1122 1090 1123 1091 1124 1092 1125 1093 1126 1094 1127 Undefined 1095 1096 ‘ - 18 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 35 2.10.3 Data Transmission Format To change Data Transmission Format, scan one of the eight bar codes corresponding to the desired format. - 19 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 36: Chapter 3 - Symbology

    To enable or disable UPC-A, scan the appropriate bar code below. 3.1.2 UPC-E To enable or disable UPC-E, scan the appropriate bar code below. - 20 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 37 NOTE UPC-E1 is not a UCC (Uniform Code Council) approved symbology. 3.1.4 EAN-8 To enable or disable EAN-8, scan the appropriate bar code below. - 21 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 38: Bookland Ean

    NOTE If you enable Bookland EAN, select a Bookland ISBN Format. Also select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN Supplementals. - 22 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 39 978 or 979) as EAN-13 in 13-digit format to meet the 2007 ISBN-13 protocol. NOTE For Bookland EAN to function properly, first enable Bookland EAN using Enable/Disable Bookland EAN. - 23 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 40 Enable 491 Supplemental Mode. • Enable Smart Supplemental Mode - applies to EAN-13 bar codes starting with any prefix listed previously. - 24 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 41 User-Programmable Supplementals. NOTE To minimize the risk of invalid data transmission, select either to decode or ignore supplemental characters. - 25 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 42 3.1.8.3 Auto discriminate UPC/EAN Supplementals 3.1.8.4 Enable 378/379 Supplemental Mode 3.1.8.5 Enable 978/979 Supplemental Mode 3.1.8.6 Enable 977 Supplemental Mode - 26 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 43 3.1.8.10 Supplemental User-Programmable Type 1 3.1.8.11 Supplemental User-Programmable Type 1 and 2 3.1.8.12 Smart Supplemental Plus User-Programmable 1 - 27 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 44 Select User-Programmable Supplemental 2 to set a second 3-digit prefix. Then select the 3 digits using the numeric bar codes beginning. - 28 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 45 3.1.11 Transmit UPC-A Check Digit Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit. - 29 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 46 3.1.13 Transmit UPC-E1 Check Digit Scan the appropriate bar code below to transmit the symbol with or without the UPC-E1 check digit. - 30 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 47 (“0” for USA), or transmit no preamble. - 31 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 48 (“0” for USA), or transmit no preamble. - 32 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 49 (“0” for USA), or transmit no preamble. - 33 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 50 UPC-A programming selections (e.g., Preamble, Check Digit). Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E1 (zero suppressed) decoded data. - 34 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 51: Ean Zero Extend

    The UCC Coupon Extended Code is an additional bar code adjacent to a UCC Coupon Code. To enable or disable UCC Coupon Extended Code, scan the appropriate bar code below. - 35 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 52: Code 128

    To enable or disable GS1-128, scan the appropriate bar code below. (See Appendix A, Miscellaneous Code Information for details on GS1-128 (formerly UCC/EAN-128).) - 36 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 53 Table 3-1 indicates the behavior of the MS916 in each of the four possible parameter settings. - 37 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 54 ABCD E are read as ABCD FNC1 ABCD E is read as ABCD ABCDE is read as ABCDE - 38 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 55: Code 39

    3.3 Code 39 3.3.1 Code 39 To enable or disable Code 39, scan the appropriate bar code below. - 39 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 56: Trioptic Code

    Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32. NOTE Code 39 must be enabled in order for this parameter to function. - 40 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 57: Code 32 Prefix

    1 followed by 4. To change the selection or cancel an incorrect entry, scan Cancel on Appendix B. - 41 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 58 Cancel on Appendix Any Length - Scan this option to decode Code 39 symbols containing any number of characters. - 42 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 59: Code 39 Check Digit Verification

    Scan this symbol to transmit the check digit with the data. Scan this symbol to transmit data without the check digit. - 43 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 60: Code 39 Full Ascii

    If you get an error beep when enabling Code 39 Full ASCII, disable Trioptic Code 39 and try again. - 44 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 61 1023 1055 1024 1056 1025 1057 1026 1058 1027 1059 1028 1060 1029 1061 1030 1062 1031 1063 - 45 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 62 1087 1120 1088 1121 1089 1122 1090 1123 1091 1124 1092 1125 1093 1126 1094 1127 1095 1096 - 46 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 63: Code 93

    14 characters. Numeric bar codes begin on Appendix B. To change the selection or cancel an incorrect entry, scan Cancel on Appendix - 47 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 64 Cancel on Appendix Any Length - Scan this option to decode Code 93 symbols containing any number of characters. - 48 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 65: Code 11

    Code 11 - Two Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan Cancel on Appendix - 49 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 66 Any Length - Scan this option to decode Code 11 symbols containing any number of characters within the scan engine capability. - 50 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 67: Code 11 Check Digit Verification

    This feature selects whether or not to transmit the Code 11 check digit(s). NOTE Code 11 Check Digit Verification must be enabled for this parameter to function. - 51 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 68: Interleaved 2 Of 5

    Numeric bar codes begin on Appendix B. To change the selection or cancel an incorrect entry, scan Cancel on Appendix B. - 52 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 69 Any Length - Scan this option to decode I 2 of 5 symbols containing any number of characters. NOTE Selecting this option may lead to misdecodes for I 2 of 5 codes. - 53 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 70: I 2 Of 5 Check Digit Verification

    Scan this symbol to transmit the check digit with the data. Scan this symbol to transmit data without the check digit. - 54 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 71: Discrete 2 Of 5

    3.7.1 Discrete 2 of 5 To enable or disable Discrete 2 of 5, scan the appropriate bar code below. - 55 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 72: Set Lengths For Discrete 2 Of

    14 characters. Numeric bar codes begin on Appendix B. To change the selection or cancel an incorrect entry, scan Cancel on Appendix B. - 56 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 73 Any Length - Scan this option to decode D 2 of 5 symbols containing any number of characters. NOTE Selecting this option may lead to misdecodes for D 2 of 5 codes. - 57 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 74: Chinese 2 Of 5

    To enable or disable Chinese 2 of 5, scan the appropriate bar code below. 3.9 Codabar 3.9.1 Codabar To enable or disable Codabar, scan the appropriate bar code below. - 58 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 75: Set Lengths For Codabar

    14 characters. Numeric bar codes begin on Appendix B. To change the selection or cancel an incorrect entry, scan Cancel on Appendix B. - 59 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 76: Clsi Editing

    14-character Codabar symbol. NOTE Symbol length does not include start and stop characters. - 60 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 77: Msi

    Codabar symbol. 3.10 MSI 3.10.1 MSI To enable or disable MSI, scan the appropriate bar code below. - 61 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 78: Set Lengths For Msi

    6 or 14 characters. Numeric bar codes begin on Appendix B. To change the selection or cancel an incorrect entry, scan Cancel on Appendix - 62 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 79 Any Length - Scan this option to decode MSI Plessey symbols containing any number of characters. NOTE Selecting this option may lead to misdecodes for MSI codes. - 63 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 80: Msi Check Digits

    Scan this symbol to transmit the check digit with the data. Scan this symbol to transmit data without the check digit. - 64 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 81: Gs1 Databar

    3.11 GS1 DataBar 3.11.1 GS1 DataBar-14 To enable or disable GS1 DataBar-14, scan the appropriate bar code below. - 65 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 82: Gs1 Databar Limited

    3.11.3 GS1 DataBar Expanded To enable or disable GS1 DataBar Expanded, scan the appropriate bar code below. - 66 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 83 Note that neither the system character nor the check digit can be stripped. - 67 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 84: Transmit Code Id Character

    M = Trioptic Code 39 • N = Coupon Code • R = GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded. - 68 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 85: Linear Code Type Security Level

    Codabar 4 or less D 2 of 5 8 or less I 2 of 5 8 or less - 69 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 86: Linear Security Level 2

    8 or less Linear Security Level 4 All code types must be successfully read three times before being decoded. - 70 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 87: Bi-Directional Redundancy

    When this parameter is enabled, a bar code must be successfully scanned in both directions (forward and reverse) before being decoded. - 71 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 88: Appendix A -Miscellaneous Code Information

    Interleaved 2 of 5 Discrete 2 of 5, IATA 2 of 5 Code 39 Trioptic, Bookland EAN GS1 DataBar - 72 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 89 Reader has validated and stripped check digit. Example: An I 2 of 5 bar code without check digit, 4123, is transmitted as ]I04123 - 73 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 90 No options specified at this time. Always transmit 0. Example: A Bookland EAN bar code 123456789X is transmitted as ]X0123456789X - 74 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 91 Higher length value engine capability. Any length bar code is decoded within the scan 0x00 0x00 engine capability. - 75 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 92: Appendix B -Numeric Bar Codes

    Cancel To change the selection or cancel an incorrect entry, scan the bar code below. - 76 - © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
