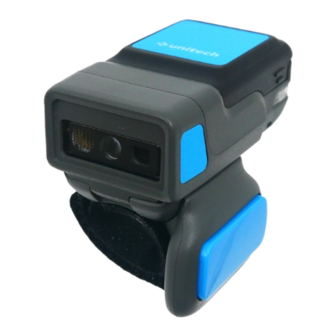

- Page 1 -MS633 Series- Bluetooth 2D Ring Scanner MS633 MS633 LR QUICK START GUIDE V1.2...
-
Page 2: Laser Safety
Copyright Thank you for purchasing the Unitech product. This manual explains how to install, operate and maintain our product. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. -
Page 3: Battery Safety
To charge the mobile device battery, the battery and charger temperatures must be between +32°F and +104°F (0°C and +40°C). Do not use batteries other than those provided by Unitech, otherwise we will not be responsible for the consequences. Dispose of batteries according to instructions. - Page 4 Ring Scanner Side View MS633 Battery Indicators Buzzer Finger Ring Strap Engine Window...
- Page 5 Ring Scanner Side View MS633 LR Battery Indicators Buzzer Finger Ring Strap Engine Window...
- Page 6 Ring Scanner Rear View Turn ON/OFF Turn ON the scanner after pressing and holding scanner's power/trigger button for 1.5 seconds. Turn OFF the scanner after pressing and holding scanner's power/trigger button Battery Latch seconds. USB-C Connector Finger Ring Strap Latch...
-
Page 7: Optional Accessories
Optional Accessories 1. Battery 2. Finger Ring Strap 3. USB-C Cable 4. Battery Charger... -
Page 8: Getting Started
Getting Started Install the Finger Ring Strap Determine whether the ring scanner is intended for use on the right or left hand, and rotate the trigger assembly accordingly. Position the trigger next to the thumb when the ring scanner is placed on the index finger. - Page 9 Install the Finger Ring Strap Trigger Button Finger Ring Strap Latch Latch Slot Finger Ring Trigger Button Strap Latch Latch Slot...
-
Page 10: Install The Battery
Install the Battery 1. Align and insert the battery with the slots of the MS633 / MS633 LR battery compartment. Battery... - Page 11 2. Press the battery into the battery compartment. Battery Battery Latch Remove the Battery To remove the battery, slide the battery latch to the left, then grasp both sides of the battery and pull it upward to remove it.
-
Page 12: Charging The Battery
Charging the Battery Place the battery in the charger as follows: ① Align the end of the battery with the charger ② Pull out the retractor and ③ Press the other end into the compartment. Note: Please pull out the retractors on either side of the charger before taking the battery out of the compartment. - Page 13 Battery Charger LED Status Items Red LED turns on: Battery Charger Power On Battery Charger LED Red LED turns on: Charging Green LED turns on: Fully Charged Battery SLOT A/B LED Light Off: No Battery Charging MS633 / MS633 LR LED Status...
-
Page 14: Scanning Techniques
Scanning Techniques Please aim the red light at the middle of the barcode when scanning the barcode. Please scan properly in accordance with the following diagram. Adjust the scanner’s angle and distance slowly, while simultaneously pressing the trigger button to ensure that the center red light covers both the left and right sides of the barcode. -
Page 15: Service Information
Service Information If there is a question with the MS633 Series, please contact us via the link below: https://www.ute.com/en/contact http://www.ute.com/ EU lmporter: Unique Technology Europe B.V. Kapitein Hatterasstraat 19, 5015 BB, Tilburg, the Netherlands Quick Start Guide Copyright Unitech Electronics Co., Ltd. All rights reserved.
