Unitech MS633 Series Manual

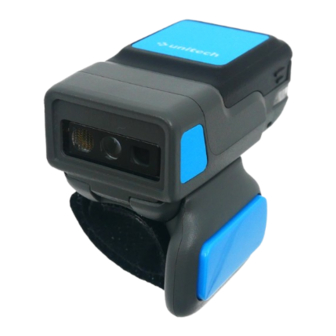

Bluetooth 2d ring scanner
Hide thumbs Also See for MS633 Series:

Advertisement

Quick Links

Download this manual

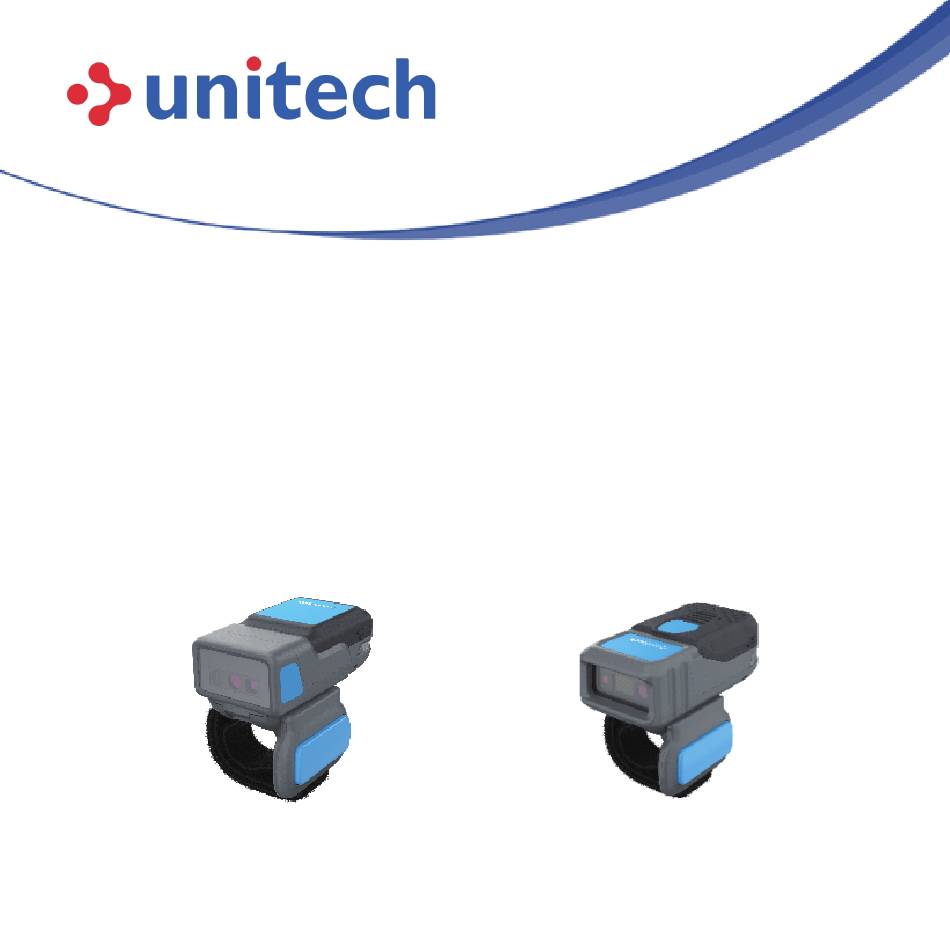

-MS633 Series-
Bluetooth 2D Ring Scanner
MS633
MS633 LR

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS633 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitech MS633 Series

Summary of Contents for Unitech MS633 Series

  • Page 1 -MS633 Series- Bluetooth 2D Ring Scanner MS633 MS633 LR...

  • Page 2: Service Information

    Copyright Thank you for purchasing the Unitech product. This manual explains how to install, operate and maintain our product. No part of this publication may be reproduced or used in any form,...
  • Page 3 Bluetooth HID Mode Step 1. The Bluetooth HID mode is a Bluetooth keyboard. When you scan the barcode, the data will be output at the cursor of the text. Bluetooth HID Mode(*) The blue LED of your device is fast blinking. This means that the device is in pairing mode(HID mode).
  • Page 4 , which means the connection is successful. UnitechBarcodeScanner BT4.0 Connected Step 4. Please open a notebook app on your phone, when you scan a barcode the data will appear at the tip of the cursor. The barcode below is the test barcode. Unitech Unitech (Test Barcode)
  • Page 5 Bluetooth SPP Mode The Bluetooth SPP mode is a Bluetooth serial port. You need a Bluetooth serial port software for data transmission. The SPP mode can also use the serial port software to send commands to the scanner. Please scan Bluetooth SPP Mode barcode Bluetooth SPP Mode The blue LED of your scanner is slow blinking.
  • Page 6 'Connect Scanner' . 'Bluetooth Scanner' . to 'Go select'' . Step 4. Choose your 'Barcode Scanner' . Unitech-BarcodeScanner BT4.0(LE) Step 5. Enter PIN '1234' and click next step ´1234´ Step 6. You will able to see your data in your device.
  • Page 7 Bluetooth BLE Mode The Bluetooth BLE mode is a low Energy protocol after the Bluetooth 4.0 protocol. You need a BLE software for data transmis- sion. The BLE mode can also use the BLE software to send commands to the scanner. Please scan Bluetooth BLE Mode barcode;...
  • Page 8 Step 2. Please click to Step 3. Please click to 'Connect Scanner' . 'Bluetooth Scanner' . to 'Go select' . Step 4. Choose your 'Barcode Unitech-BarcodeScanner BT4.0(LE) Scanner' . Step 5. You will able to see your data in your device.
  • Page 9 USB-HID Mode The USB-HID mode is a USB keyboard. When you scan the barcode, the data will be output at the cursor of the text. Step 1. Please scan USB-HID Mode barcode; USB-HID Mode Step 2. Then connect your device to your computer with the USB cable that comes in the box.
  • Page 10 Step 3. When your connection is successfull, you will hear 3 beeps from your barcode scanner. After that, you can open a text le or your own software on your computer and display your data at the tip of the cursor. Unitech (Test Barcode) Unitech Unitech...
  • Page 11 USB-VCP Mode To use the VCP Mode (Virtual COM Port), you can scan the barcode below. USB-VCP Mode PARAMETERS Baudrate 9600 Data Bits 8 Flow Control N Stop Bits 1...

  • Page 12: Suffix Settings

    Suffix Settings You can Enable or Disable the su x by scanning the following barcodes. The default su x is CR and LF. Disable Su x Enable Su x(*)
  • Page 13 Special Suffix Settings You can change to a di erent su x by scanning the following barcodes. CR LF(*) SPACE...
  • Page 14 Offline Storage Mode O ine storage mode is for storing scanned barcodes in the scanner when Bluetooth is not connected, and can then be uploaded uniformly. You can enable or disable o ine storage mode by scanning the following barcodes. Enable O ine Storage Mode Disable O ine Storage Mode(*) You can get the number of stored barcodes and clear the stored...
  • Page 15 Offline Storage Mode Fast Speed Upload Middle Speed Upload Low Speed Upload Barcode Storage Information Clear Barcode Storage...

  • Page 16: Auto-Trigger Mode

    Auto-Trigger Mode You can turn on auto-trigger mode at di erent intervals, and auto-trigger mode does not go into hibernation. Disable Auto Trigger(*) 1 Second Auto Trigger 2 Second Auto Trigger 5 Second Auto Trigger...
  • Page 17 Hardware Informations You can access your device's software version, ID, battery level and serial number by scanning the barcodes below. Make sure your barcode scanner is connected to a device to view the data. Firmware Version Device ID Battery Level Serial Number...

  • Page 18: Vibration Level

    Vibration Level You can set the vibration level by scanning the following barcodes, only for the R-Series. Vibration Off Level 1 Level 2 Level 3 Level 4...
  • Page 19 QR Code below with your phone's camera and access the application on our website. Only for Android. OTA Tools For leaving DFU mode. ** For MS633 Series, press 10 sec. to the trigger button.

  • Page 20: Default Factory Setting

    Default Factory Setting You can restore the default factory settings by scanning the follow- ing barcode. Default Factory Settings Service Information If you have a question with your Unitech barcode scanner, please contact us through the link below: https://www.ute.com/en/contact...
  • Page 21 QUICK CONFIGURATION MANUAL Copyright Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

This manual is also suitable for:

Ms633 lr
