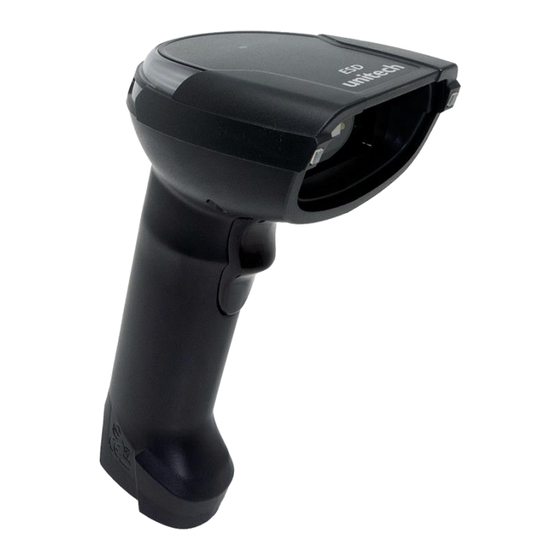

Summary of Contents for Unitech MS852DPM ESD

  • Page 1 2D Imager Scanner - MS852DPM ESD - User's Manual Version 1.1...
  • Page 2 Revision History Date Change Description Version 20230203 First Published Version 20230208 Update 1.1 Package Optional Accessories...
  • Page 3: Preface

    –Connect the equipment into an outlet on a circuit different from that to © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 4 This device must accept any interference received, including interference that may cause undesired operation. European Conformity Statement Unitech Electronics co., Ltd herewith declares that the Unitech product is in compliance with the essential requirements and all other provisions of the RED 2014/53/EU directive.
  • Page 5 Waste electrical and electronic equipment (WEEE) Unitech has set up a policy and process to meet the 2012/19/EU concerning electronic waste disposal. For more detailed information of the electronic waste disposal of the products you have purchased from Unitech directly or via Unitech’s resellers, you shall either...
  • Page 6: Laser Information

    Laser Information The Unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 60825-1. Class I and Class 1 products are not considered to be hazardous. The Unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
  • Page 7: Hearing Damage Warning

    To prevent possible hearing damage, do not listen at high volume levels for long periods. © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 8: Worldwide Support

    Worldwide Support Unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest Unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...
  • Page 9: Warranty Policy

    The warranty period is varied from each country. Please consult with your supplier or Unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.
  • Page 10: Table Of Contents

    3.2 UPC-A ....................27 3.3 UPC-E ....................30 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 11 Appendix E - AIM ID Table ..............87 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 12: Chapter 1 - Overview

    MS852 DPM ESD User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the MS852DPM ESD gift box. If something is missing or damaged, please contact your Unitech representative. The Package Contents  USB Type-C Cable ...
  • Page 13: Product Detail

    Scan Window Scanner Trigger Key © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 14: Specifications

    Regulatory Approvals CE, FCC, BSMI, VCCI © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 15 ․Standard Hands Free Stand (Optional) ․USB Cable © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 16: Getting Started

    Connect USB cable to the USB port of a host computer. © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 17 Open a word processing program such as Microsoft Word or Notepad, and scan the following barcode: If the word “Unitech” appears on the screen, you have successfully installed your scanner. Note: To scan a barcode, make sure the laser aimer is pointed directly at the barcode.
  • Page 18: Led / Beeper Indicator

    Three short beeps (Setting Failed) (tone: high-high-high) © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 19: Chapter 2 - Command Settings

    Enter Setup Exit Setup © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 20: General Setting

    Restore Custom Defaults © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 21: Usb Device Type

    USB-HID Keyboard* USB CDC © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 22: Usb Interface

    Belgium Bulgaria Croatia © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 23 Hungary Italy Japan © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 24 Spain Switzerland Sweden © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 25 Traditional Chinese (Big 5) , Code Page / Excel ; Notepad © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 26 SHIFT-JIS, Microsoft Office Word © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 27 Central and East European Latin Hebrew Vietnamese © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 28 Alt + Unicode Mode © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 29 Upper Case Lower Case © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 30: Scan Mode

    Medium Sensitivity * High Sensitivity © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 31: Aiming

    Always On Trigger * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 32: Illumination Level

    Maximum brightness * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 33: Beeper Control

    High - 4200 Hz © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 34: Decode Settings

    2 Times 3 Times © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 35 Decoding Timeout (ms) © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 36: Chapter 3 - Symbology

    Micro QR Disable © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 37 Only Enable 2D Symbologies © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 38: Upc-A

    Transmit System Character * No Preamble © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 39 Disable 2-Digit / 5-Digit Add-On Code * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 40 UPC-A Add-On Code Not Required * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 41: Upc-E

    Transmit System Character * No Preamble © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 42 Disable 2-Digit / 5-Digit Add-On Code * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 43: Ean-8

    Enable EAN-8 * DisableEAN-8 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 44 Disable conversion * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 45 EAN-8 Add-On Code Not Required * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 46: Ean-13

    Disable Bookland EAN * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 47 EAN-13 Add-On Code Not Required * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 48: Code 128

    © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 49 Any Length * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 50: Code 39

    Disable Code 39 Full ASCII * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 51 Do Not Transmit Code 39 Check Digit* © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 52 Any Length * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 53: Code 93

    © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 54: Codabar

    Enable Codabar Disable Codabar* © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 55 Do Not Transmit Codabar Start/Stop Character * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 56 Length Within Range Any Length* © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 57: Plessey

    Select this option to decode Plessey symbols containing any number of © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 58 Any Length * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 59: Msi

    Do Not Transmit MSI Check Digit(s) © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 60 Two Check Characters, MOD10/MOD11 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 61 Any Length * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 62: Interleaved 2 Of 5

    Transmit Check Character After Verification © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 63 Length Within Range © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 64: Data Matrix

    Mirrored Auto detect © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 65: Qr Code

    Non-Mirrored Only * © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 66: Micro Qr Code

    Enable OEM ID © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 67: Prefix

    Set Prefix for All Symbologies © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 68 Set Symbology Prefix © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 69: Suffix

    Set Suffix for All Symbologies © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 70 Set Symbology Suffix © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 71: Chapter 4 - Data Editing

    Set GS (0x1D) to Other ASCII Code © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 72: Truncate Data

    Truncate Leading Data For Specified Barcodes © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 73 Truncate Ending Data For Specified Barcodes © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 74: Terminating Character

    Set Terminating Character to TAB (0x09) © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 75: Appendix A - Numeric Barcodes

    Appendix A - Numeric Barcodes © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 76 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 77: Appendix B - Symbologies Barcodes

    Code 93 Code 32 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 78 Straight 2 of 5 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 79 Composite Code-A Composite Code-B © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 80 Micro QR Aztec MaxiCode © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 81: Appendix C - Ascii Code Barcodes

    Alt + 006 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 82 Alt + 014 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 83 Alt + 022 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 84 Alt + 029 Ctrl+] © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 85 SPACE " & © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 86 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 87 MS852 DPM ESD User’s Manual < > © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 88 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 89 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 90 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 91 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 92 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 93 MS852 DPM ESD User’s Manual Delete © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 94: Appendix D - Function Key Barcodes

    Left Arrow Right Arrow © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 95 Page Up Page Down © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 96 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 97 MS852 DPM ESD User’s Manual © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 98: Appendix E - Aim Id Table

    GS1 DataBar Expanded © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
  • Page 99 Micro QR Aztec MaxiCode © 2022 Unitech Electronics Co., Ltd. All rights reserved. Exit Setup Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
