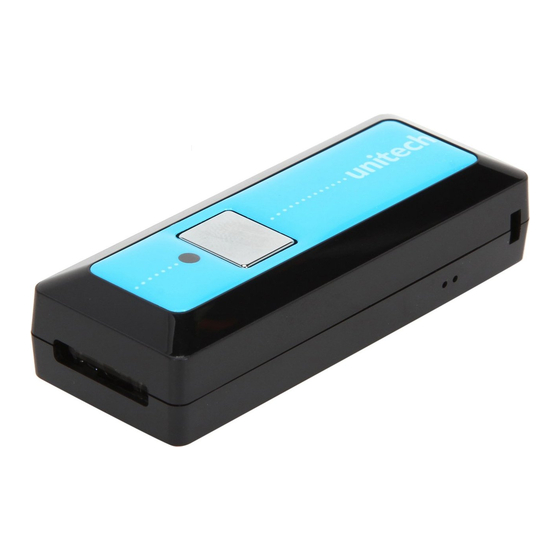

Unitech MS910 Quick Manual

Pocket wireless scanner
Hide thumbs Also See for MS910:

Advertisement

Quick Links

Download this manual See also: User Manual
Confidential
MS910
Pocket Wireless Scanner
Quick Guide
Unitech Scanner User's Manual
1/20
2011/5/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS910 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitech MS910

Summary of Contents for Unitech MS910

  • Page 1 Confidential MS910 Pocket Wireless Scanner Quick Guide Unitech Scanner User’s Manual 1/20 2011/5/20...
  • Page 2 Confidential Overview First of all, thank you for choosing Unitech’s products. This decoder build-in scanner comes in one model and supports SPP , HID two modes of wireless communication. The scanner supports the following bar code symbologies: * All major 1D barcodes incl.

  • Page 3: Charging The Battery

    1. Flip open the mini USB port on the scanner. 2. Insert the mini USB connector into the port on the scanner and USB A connector into a USB port on the host PC. Unitech Scanner User’s Manual 3/20 2011/5/20...

  • Page 4: Led Indication

    10 or 11 short beeps mode to another LED Indication： ： ： ： Type Definition Standby or Power off Flashing Green Disconnected or Discoverable Green for 2 sec Good Read Flashing Red Low power Solid Red Charging Unitech Scanner User’s Manual 4/20 2011/5/20...

  • Page 5: Getting Connected

    4. Select “Wireless Scanner” from discovered device list. 5. The Bluetooth application may prompt you to scan a pincode (see PINCODE SETUP section) it generated. 6. The scanner will beep twice to verify the connection. Unitech Scanner User’s Manual 5/20 2011/5/20...
  • Page 6 2. Scan [Pincode-Start] 3. Scan the numeric barcodes according to the pincode generated by the Bluetooth application, and then scan [Enter] 4. Scan [Pincode-Stop] 5. The scanner will beep twice to verify a successful connection. Unitech Scanner User’s Manual 6/20 2011/5/20...
  • Page 7 II. Windows Mobile 1. Press the trigger for 1 second to activate the scanner. 2. Scan “Disconnect” 3. Scan ”HID Mode - SPP” the scanner will emit 11 beeps. 4. PDA choice Setting Bluetooth Wireless Scanner Unitech Scanner User’s Manual 7/20 2011/5/20...
  • Page 8 Confidential 5. Input any digit as pincode, e.g.555 6. Scanner need to set pincode within 10 sec. in “Pincode Start” section. (Page 6) Unitech Scanner User’s Manual 8/20 2011/5/20...
  • Page 9 Confidential 7. The scanner will beep twice to verify a successful connection. Unitech Scanner User’s Manual 9/20 2011/5/20...
  • Page 10 2. Once you enter the BluetoothConnect, the application may ask you to enable Bluetooth connection, and then click [Yes]. 3. Click the Menu button to enable the settings menu. Unitech Scanner User’s Manual 10/20 2011/5/20...
  • Page 11 Confidential 4. Click [Enable Input Method] and enable [BluetoothConnect] in the Language & Keyboard setting window. 5. Long press on the panel to enable Input method menu and select BluetoothConnect. Unitech Scanner User’s Manual 11/20 2011/5/20...
  • Page 12 6. Click [Pairing Devices] on the setting menu and the device will prompt you to the Bluetooth settings window. 7. Scan [BT mode - SPP] configuration barcode. It can be found on the quick start guide or quick connection card. Unitech Scanner User’s Manual 12/20 2011/5/20...
  • Page 13 8. Click [Scan for devices] on the Bluetooth settings window. Click [Wireless Scanner] to pair with your wireless scanner. 9. The default pairing code is 1234. After successful pairing, the description under Wireless Scanner will be “Paired but not connected” Unitech Scanner User’s Manual 13/20 2011/5/20...
  • Page 14 10. Get back to BluetoothConnect, enable setting menu and click [Connect to Barcode Reader]. The scanner will beep twice to verify the successful connection. 11. Now you will be able to transfer barcode data onto your mobile device. Unitech Scanner User’s Manual 14/20 2011/5/20...
  • Page 15 1. Press the trigger for 1 second to activate the scanner. 2. Scan “Disconnect” 3. Scan ”BT Mode - HID” the scanner will emit 11 beeps. 4. Enable Bluetooth on I Phone or I Pad to search Wireless Scanner Unitech Scanner User’s Manual 15/20 2011/5/20...
  • Page 16 5. There will be a random Pincode showed on I Phone or I pad. 6. Scanner need to set Pincode within 10 sec. in “Pincode Start” section. (Page 6) 7. There will be the “successful connection” message on I phone or I pad. Unitech Scanner User’s Manual 16/20 2011/5/20...
  • Page 17 Confidential 8. Data can be transferred successfully to I phone or I pad. Unitech Scanner User’s Manual 17/20 2011/5/20...

  • Page 18: Quick Setup Sheet

    Confidential Quick Setup Sheet Unitech Scanner User’s Manual 18/20 2011/5/20...
  • Page 19 Confidential Unitech Scanner User’s Manual 19/20 2011/5/20...
  • Page 20 Confidential Testing barcode Unitech Scanner User’s Manual 20/20 2011/5/20...
