Wireless Scanner
- MS910 -
User's Manual
Version 1.3
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
Tel: + 886 2 89121122
Fax: +886 2 89121810
website: www.ute.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS910 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitech MS910

Summary of Contents for Unitech MS910

  • Page 1 Wireless Scanner - MS910 - User’s Manual Version 1.3 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 2 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Overview ........................... 1 Introducing the MS910......................1 Package Contents ........................2 Chapter 2 Installation and Connection ....................3 Connecting (Pairing) the Scanner to a Host PC..............3 Connecting via Serial Port Profile (SPP) Mode ..............3 Connecting via Human Interface Device (HID) Mode............
  • Page 4 Smartphone/ Tablet PC Connection (iOS) ................ 48 Appendix C Worldwide Support ........................ 52 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 5: Chapter 1 Overview

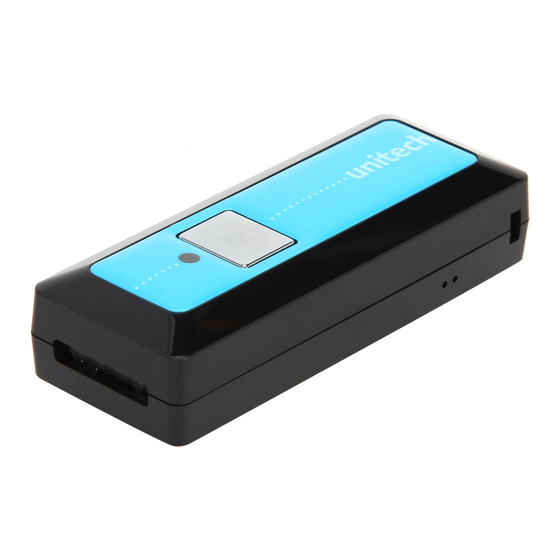

    MS910 scanner ensures the productivity and mobility of your business application. The MS910 is the smallest wireless scanners in the market and is compatible with all major OS on the nowadays popular smartphones and tablet PCs via both HID and SPP profiles.

  • Page 6: Package Contents

    Package Contents Please make sure the following contents are in the MS910 box. If something is missing or damaged, please contact your Unitech representative. MS910 scanner Product Resource CD Quick Guide USB Charging Cable Hand Strap Quick Connection Card Note: The scanner’s default power off (idle mode) time is 3 minutes.

  • Page 7: Installation And Connection

    Port Profile (SPP) Mode” or the instruction of “Human Interface Device (HID) Mode”. Note: Android 2.x devices can work with MS910 in the SPP mode ONLY. The SPP mode or/and the HID mode are not definitely compatible with each version of Android OS, and thus depends on the Android-based hardware specifications defined by the Android device manufacturers.

  • Page 8: Connecting Via Human Interface Device (Hid) Mode

    On your host device, in the settings section where you can see Bluetooth settings and manage your connections. a. You will see the MS910 listed as [Wireless Scanner] under Bluetooth devices. b. You will see a message under that [Pair with this device].
  • Page 9 Note. To disconnect the scanner from the host or to switch the wireless profile from one to another, please scan the [Disconnect] barcode: Disconnect After scanning the [Disconnect] barcode, the MS910 will emit 3 beeps. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

  • Page 10: Connecting Via Human Interface Device (Hid) Mode (Non-Pincode)

    Bluetooth module of your host 5. Click Add a device to search for a wireless scanner nearby around. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 11 When it connects, click Next. 8. Click Pair without using a code. Then, click Next. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 12: Smartphone Connection (Android)

    Note: BluetoothConnect needs to be installed only when you have NO wireless input application on your Android device. Android 2.x devices can work with MS910 in the SPP mode ONLY. The SPP mode or/and the HID mode are not definitely compatible with each...

  • Page 13: Smartphone/ Tablet Pc Connection (Ios)

    PC via HID mode. To get the detailed example of HID setting, refer to Appendix 2. Set Bluetooth Device ID To customize your own Bluetooth device (MS910) name for the wireless scanner, please follow below steps: STEP 1 Scan the Default Wireless ID barcode. .B022$ *.B022$*...

  • Page 14: Power Management

    Out of range 1 Flash Move closer to the host. (high-low-high-low) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 15: Charging The Battery

    USB port on the host PC. Please charge the scanner for at least 2 hours (until the LED indicator turns off). Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 16 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 17: Chapter 3 Specification

    5000 reads/charge Environmental ESD Protection Functional after 4KV Contact and 8KV Air Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 18 Regulation Approvals FCC Class B, CE Accessories Mini USB cable, Hand Strap, Tools CD Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 19: Chapter 4 User Preferences

    Locate the appropriate feature setting listed in the following pages. Set feature values by scanning single barcodes or short barcode sequences. The MS910 will beep to confirm a successful scan and will store the new setting in the scanner’s memory.
  • Page 20 STEP 5: Scan: " $" twice from Full ASCII Chart of Appendix A. STEP 6: Scan: POSTAMBLE. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 21 Scan CONTINUOUS AUTO OFF. (GROUP 2) All parameters will be converted to alphanumeric characters and shown on the monitor. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 22 The following label dumps the settings to a PC/AT regardless of the type of device that has been chosen on the scanner. Dump Settings on PC_AT Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 23 All characters in dumped strings are uppercase. If you see lowercase characters in dumped strings, change them to uppercase. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 24 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 25: Appendix A Setup Chart

    Setup Chart Quick Setup Sheet scanner Mode Beep Terminator UPC-E Scan Code Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 26 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 27: Beeps And Delays Group 1

    BEEP LOW – HIGH .F015$ *.F015$* BEEP LOW--HIGH .F017$ *.F017$* BEEP LOW Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 28: Keyboard Wedge Settings Group 2

    Keyboard Wedge Settings Group 2 Language(For PC/XT,AT) Function Code Caps-Lock Use number keypad digits Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 29: Scanner Port: Group 3

    Data Length (Two Dghts) Send Preamble /postamble Code ID Label Type Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 30: Define Code Id Group 3

    Define Code ID Group 3 Define Code ID Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 31: Code 39 / Full Ascii Code Group 4

    Code 39 / Full ASCII Code Group 4 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 32: I 2 Of 5 Group 5

    I 2 of 5 Group 5 I 2of5 (ITF) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 33: S 2 Of 5 / Code 32 Group 6

    S 2of5 / China Postal Code (Toshiba Code) Code 32 (Italian Pharmacy) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 34: Ean 128 Group 7

    Scan a ASCII code in full ASCII code chart to select a new fields separator Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 35: Code 128/ Code 93 / Msi Code Group 8

    Min and Max bar codes for each symbology. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 36: Code 11 / Codabar Group 9

    Code 11 / Codabar Group 9 Code 11 Codabar Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 37: Upc / Ean Code Group 10

    UPC / EAN Code Group 10 UPC-A UPC-E Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 38: Upc / Ean Code Group 11

    UPC / EAN Code Group 11 EAN-13 EAN-8 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 39: Supplement Code Group 12 / Matrix 2 Of 5 Group 13

    Supplement Code Group 12 MATRIX 2 Of 5 Group 13 Supplement Code Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 40: Iata Group 14 / Uk Plessy Code Group 15

    IATA Group 14 UK PLESSY CODE GROUP 15 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 41: Full Ascii Chart

    Full ASCII Chart (Characters in parentheses represent Code 39 bar code printing) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 42 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 43 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 44: Function Codes For Pc

    Function Codes for PC Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 45 *2. "Shift(left)Make" is programmed. Please scan "Shift(left)Break" to resume barcode setting. *3. "Ctrl(left)Make" is programmed. Please scan "Ctrl(left)Break" to resume barcode setting. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

  • Page 46: Barcode Chart

    Barcode Chart Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 47: Smartphone Connection (Android)

    BluetoothConnect needs to be installed only when you have NO wireless input application on your Android device. Android 2.x devices can work with MS910 in the SPP mode ONLY. The SPP mode or/and the HID mode are not definitely compatible with each version of Android OS, and thus depends on the Android-based hardware specifications defined by the Android device manufacturers.
  • Page 48 Click [Enable Input Method] and enable [BluetoothConnect] in the Language & Keyboard setting window. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...
  • Page 49 Scan [BT mode - SPP] configuration barcode. It can be found on the quick start guide or quick connection card. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 50 10. Click [Scan for devices] on the Bluetooth settings window. Click [Wireless Scanner] to pair with your wireless scanner. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 51 12. Get back to BluetoothConnect, enable setting menu and click [Connect to Barcode Reader]. The scanner will beep twice to verify the successful connection. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

  • Page 52: Smartphone/ Tablet Pc Connection (Ios)

    Scan [BT mode - HID] configuration barcode. It can be found on the quick start guide or quick connection card. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 53 On the discovered device list, click [Wireless Scanner] to pair with your wireless scanner. The Bluetooth application will prompt you to enter a random pincode. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
  • Page 54 Pincode Setup section on the quick start guide or quick connection card. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...
  • Page 55 To toggle iPhone/iPad Touch Keyboard, please either scan below barcode or simply double-click the trigger. .E044$ *.E044$* Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 56: Appendix C Worldwide Support

    Worldwide Support Unitech’s professional support team is available to quickly answer questions or technical-related issues. Should an equipment problem occur, please contact the nearest Unitech regional service representative. For complete contact information please visit the Web sites listed below: Region...
