www.smarTrike.com
820/840
LOOK US UP ON YOUTUBE:
www.youtube.com/user/SmartTrikeO cial
1
20010001820
20010004620
20010008680
20010014680
20010020820
A
20010006680
C
20010004820
G
20010007820
K
If you have any assembly issues or are
missing a part, please call us for
assistance. Our smarTrike® assembly
experts will assist you.
DO NOT RETURN TO THE STORE
If you are experiencing problems with this
product, please call our HELP LINE.
9:30am – 5:00pm Monday to Friday
Not Bank Holidays or weekends.
You can also email us: help@mookie.co.uk
for assistance and advice.
USA: 1-855-SMTRKUS
B
20010003820
D
20010005820
H
20010001840
L
-1-
UK: 0845 5046410
(1-855-768-7587)
20010007680
E
20010006820
I
2
20010016680
M1
M2
F
J
N
Advertisement
Related Manuals for SmarTrike 820
Summary of Contents for SmarTrike 820

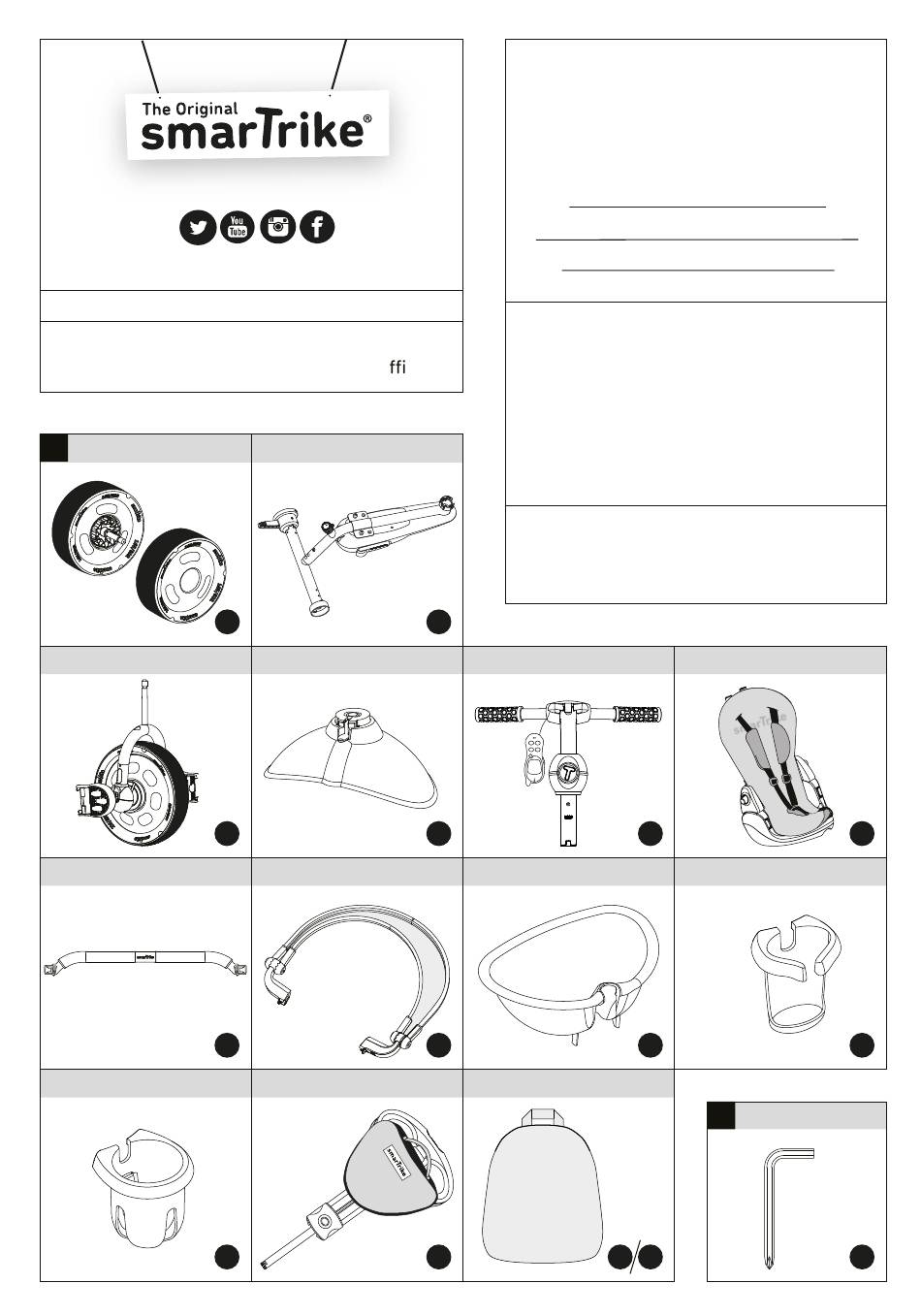

- Page 1 If you have any assembly issues or are missing a part, please call us for assistance. Our smarTrike® assembly experts will assist you. DO NOT RETURN TO THE STORE If you are experiencing problems with this product, please call our HELP LINE.
- Page 2 Step 1 Parts needed to complete this section Insert part A into part B until you hear a "click".
- Page 3 Step 2 Parts needed to complete this section Insert part D into part C Insert part E all the way all the way through the through, until the ball hole (as shown) meets the retaining head.
- Page 4 Step 3 Parts needed to complete this section Push the apple firmly down to insert, slightly turn until you hear a "click". Make sure white connector is not visible. Insert the wheel all the way through the body of the trike until the bolt meets the retaining head.
- Page 5 Step 4 Parts needed to complete this section By using the "Allen" Take the reclining seat (F), lift bottom seat cover key (N), remove and push the screws through the seat's bottom screw by turning holes. Screw tip into the most rear facing hole counter clockwise.
- Page 6 Step 5 Parts needed to complete this section WARNING: It may be dangerous to leave your child unattended. Use a safety belt as soon as your child can sit unaided. This seat is not suitable for Suitable for 10 Months children under 10 months.
- Page 7 Step 6 Parts needed to complete this section Canopy's (H) narrow arch needs to face towards the rear of the trike. Attach both sides of canopy into grooved holder by sliding downward until secured.
- Page 8 Step 7 Parts needed to complete this section Use the Phillips screwdriver (N) Push basket (I) firmly onto to remove the screw by turning rear axle until it "clicks" into counter clockwise. position (see 1 & 2). Attach basket firmly to vertical frame (as shown), use removed screw and turn clockwise until secured.
- Page 9 Step 8 Parts needed to complete this section Align part J in to the designated Align part K in to the designated holes in the center of the handlebar holes in the center of the handlebar and push down firmly until it "clicks". and push down firmly until it "clicks".
- Page 10 Step 9 Parts needed to complete this section WARNING: This product should be used on safe ground, it should not be used near steps, slopes, roadways, public highways or wet areas. Push the button on the parent handlebar as shown, and fully extend length.
- Page 11 Step 9b-10 Parts needed to complete this section WARNING: Make sure safety pin is inserted correctly and secured. Insert the securing pin through the parent handle, and secure with lock. For the 10+ month stage, open Pull down both sides of the the footrest by pulling it down.
- Page 12 Recliner Infinity Parts needed to complete this section Pull the plastic hooks of the bag Wrap hook and loop straps around the parent handle. (M1) around the rim of the basket. Max. load of basket 2.2 lb / 1 kg. Attach the handle of the bag to the parent handle hook.
- Page 13 Explorer Parts needed to complete this section Pull the elastic bands of the bag Attach handles of the bag (M2) to around the sides of the basket. parent handle hook. Max. load of basket 2.2 lb / 1 kg. Wrap hook and loop strap and buckle strap around the parent handle.
-
Page 14: Parent Control
Parent control 10M+ When the clutch is pulled away from the wheel, there is no pedal control and the wheel is in a free mode position. -14-... - Page 15 Child control Push release button to place it For the 24+ months stage, fold up left and right footrest. back into frame. -15-...
- Page 16 When the clutch is aligned with the front wheel, child has pedal control. In this mode the footrest should be folded. 82028014603 -16-...
