Thank you for buying smarTrike,
If you have any assembly issues or are missing
a part, please call us for assistance. Our
smarTrike® assembly experts will assist you.
DO NOT RETURN TO THE STORE
If you are experiencing problems with this
product, please call our HELP LINE.
9:30am – 5:00pm Monday to Friday
Not Bank Holidays or weekends.
You can also email us: help@mookie.co.uk
for assistance and advice.
(X2)
20010004620
(X3)
B3
B
20010007620
G
20010011620
K
20010016680
(X2)
O
-1-
UK: 0845 5046410
USA: 1-855-SMTRKUS
(1-855-768-7587)
C
20010014620
200100113620
H
L
P
20010006680
D
I
20010012620
M
20010001630
Q
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SmarTrike 650
Summary of Contents for SmarTrike 650

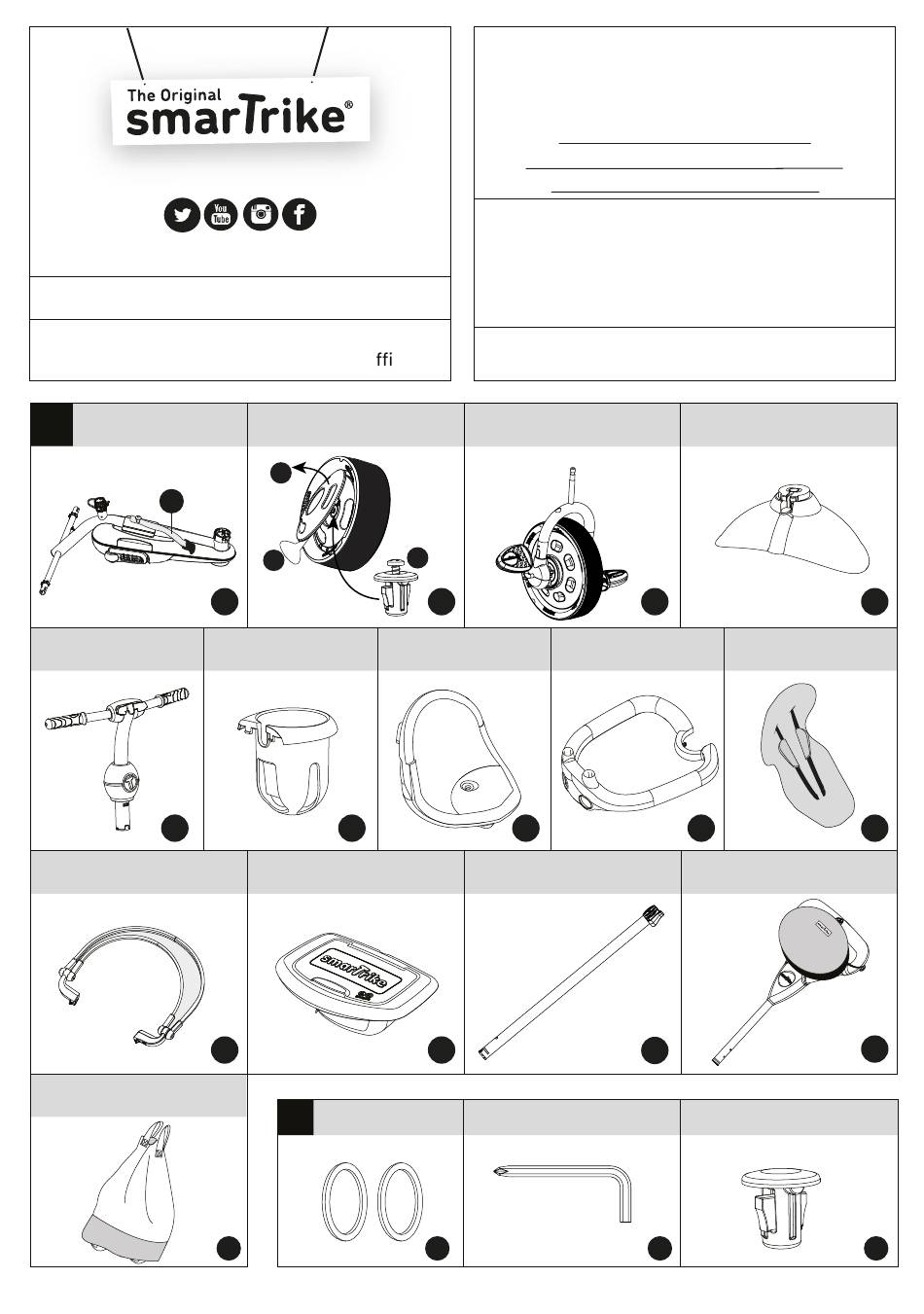

- Page 1 Thank you for buying smarTrike, If you have any assembly issues or are missing a part, please call us for assistance. Our smarTrike® assembly experts will assist you. DO NOT RETURN TO THE STORE If you are experiencing problems with this product, please call our HELP LINE.

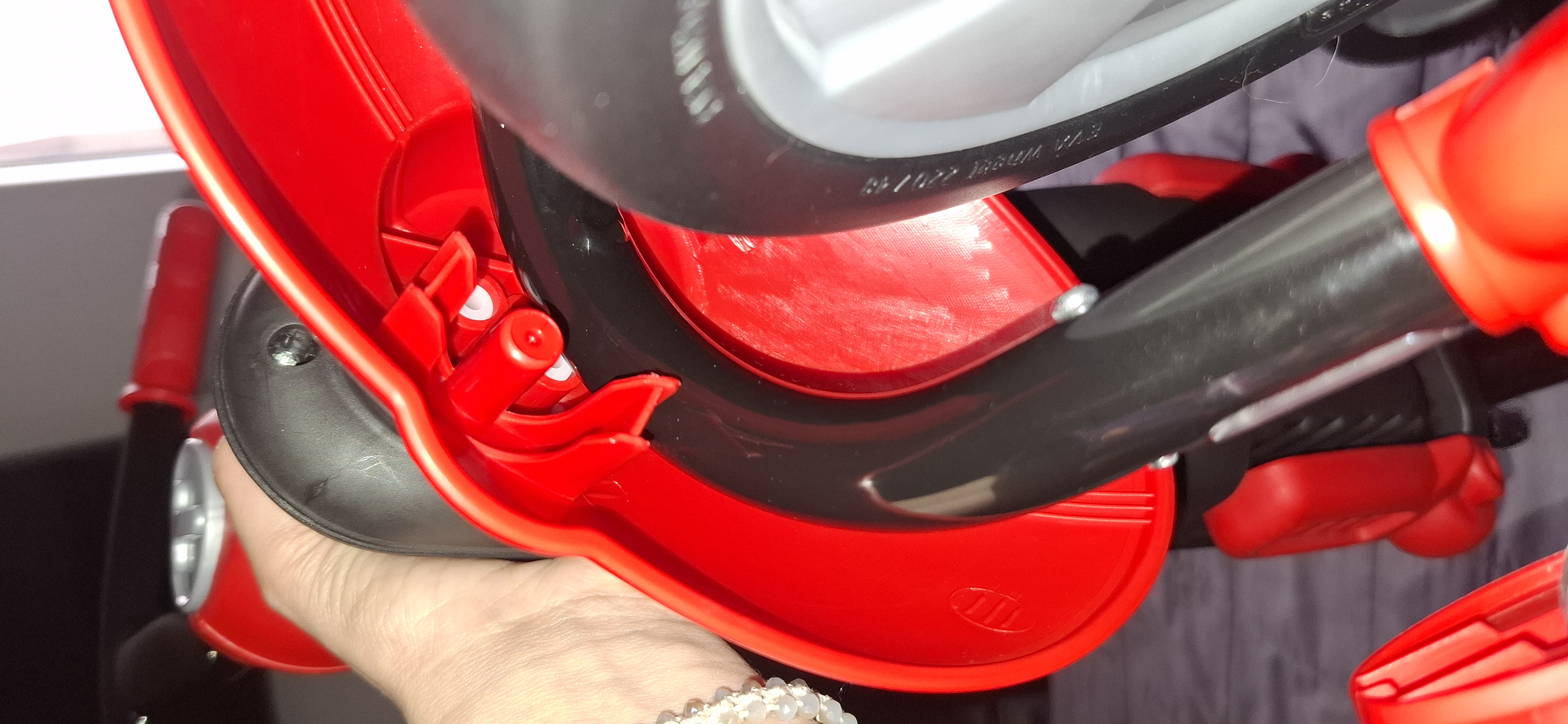

- Page 2 Step 1 Parts needed to complete this section Place the washer (O) on the axle (as shown) Connect each back wheel (B) to back axle. Pull out plastic tabs from each rear wheel (B2) until the wheel cover(B1) opens. Take out white plugs+ screws (B3).
- Page 3 Step 2 Parts needed to complete this section Firmly insert white plug (B3) into axle opening, as shown. Align spring lock with dropout hole in axle and push firmly into position, until piece "clicks" into place. By using the Phillips screwdriver (P), screw part A3 into part B.
- Page 4 Step 3 Parts needed to complete this section Insert part D into part Insert part E into part A all C all the way through the way through the hole the hole (as shown) the hole (as shown) (as shown)
- Page 5 Step 4 Parts needed to complete this section Push the apple rmly down to ly down to Push the apple firmly down to insert, insert, slightly turn until you insert, slightl slightly turn until you hear a "click". " Make sure white connector is not visible. Insert the wheel all the way through the body of the trike until the bolt meets the retaining head.
- Page 6 Step 5 Parts needed to complete this section Take the seat (G), push the screw through the By using the "Allen" key (P), remove seat hole & the seat belt (I1). Screw into the most rear facing hole and screw by turning counter clockwise. firmly tighten with Allen key (P).
- Page 7 Step 6 Parts needed to complete this section Align part (F) into the designated holes in the center of the handlebar and push down firmly until it "clicks". With little force, push safety bar (H) into the apple's holes until you hear a "click".
- Page 8 Step 7 Parts needed to complete this section WARNING: It may be dangerous to leave your child unattended. Use a safety belt as soon as your child can sit unaided. This seat is not suitable for children under 10 months. Any load attached to the handle a ects the stability of the product.
- Page 9 Step 8 Parts needed to complete this section Canopy's (J) narrow arch needs to face towards the rear of the trike. Attach both sides of the canopy (J) into designated slots on head rest (I), until you hear a "click".
- Page 10 Step 9 Parts needed to complete this section Push basket (K) firmly onto By using the Phillips screwdriver rear axle until it "clicks" into (P), remove screw by turning counter clockwise. position (see 1 & 2). Attach basket firmly to vertical frame (as shown), use removed screw and turn clockwise until secured.
- Page 11 Step 10 Parts needed to complete this section WARNING : Nut must be inserted correctly and secured. Keep the nut in place, remove the screw from part L by turning counter clockwise. Insert part M into part L. Align the hole of part L with the correct hole in part M.
- Page 12 Step 11 Parts needed to complete this section WARNING: This product should be used on safe ground, it should not be used near steps, slopes, roadways, public highways or wet areas. Insert the assembled parent Remove the securing pin with handle (M) into the retaining securing lock, as shown.
- Page 13 Step 12 Parts needed to complete this section Max. load of basket 2.2 lb / 1 kg. Pull the elastic bands around Attach the handles of the bag the sides of the basket. (N) to parent handle hook. Wrap hook and loop strap around the parent handle.
- Page 14 Step 13 For the 10+ month stage, open Pull down both sides of the the footrest by pulling it down. footrest. -14-...
-
Page 15: Parent Control
Parent Control 10 M + When the clutch is pulled away from the wheel there is no pedal control and the wheel is in a free-wheel position -15-... - Page 16 Child Control For the 24+ months stage, fold Push release button to place it up left and right footrest. back into frame (as shown). When the clutch is pushed closed and aligned with the front wheel, child has pedal control. 65027950603 -16-...
